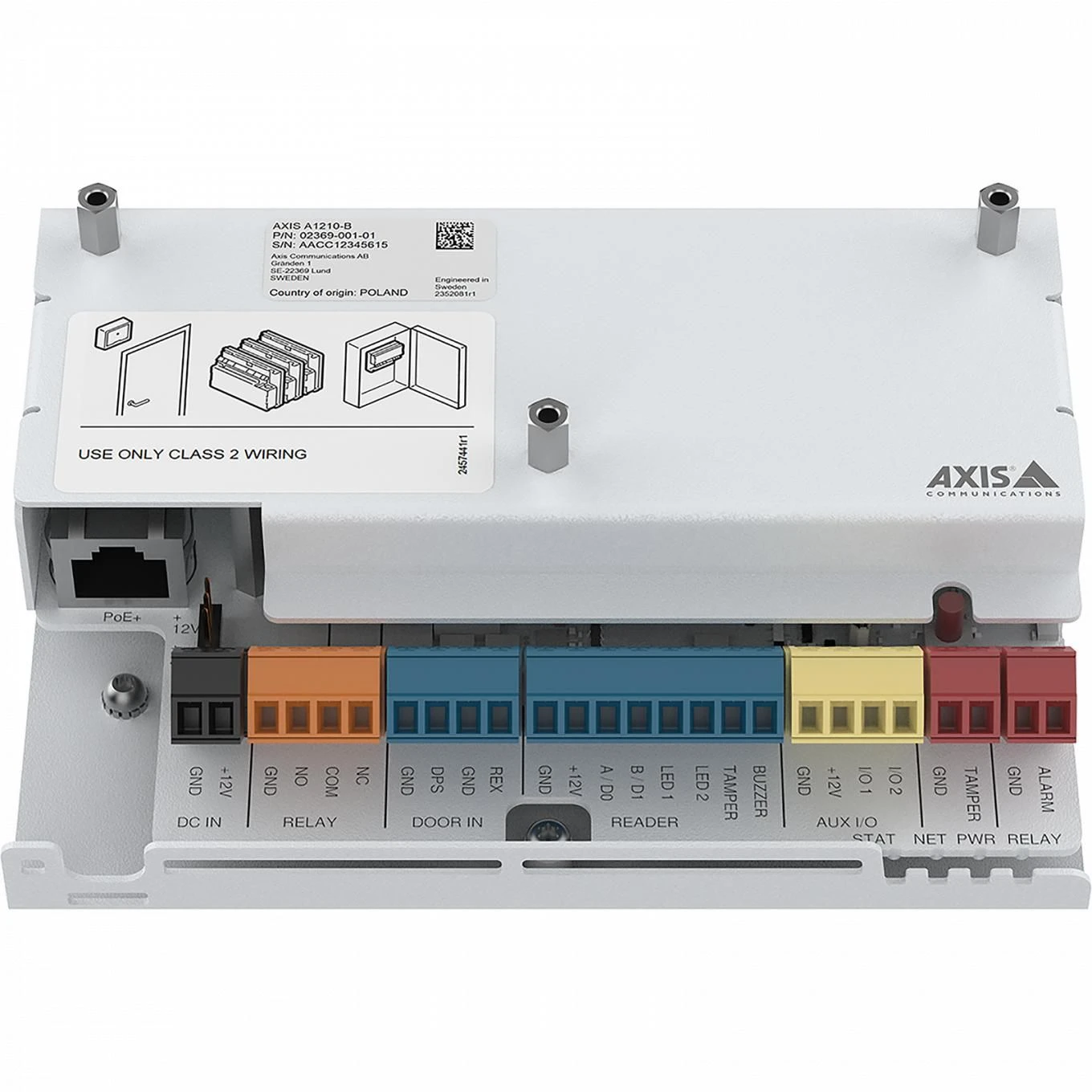

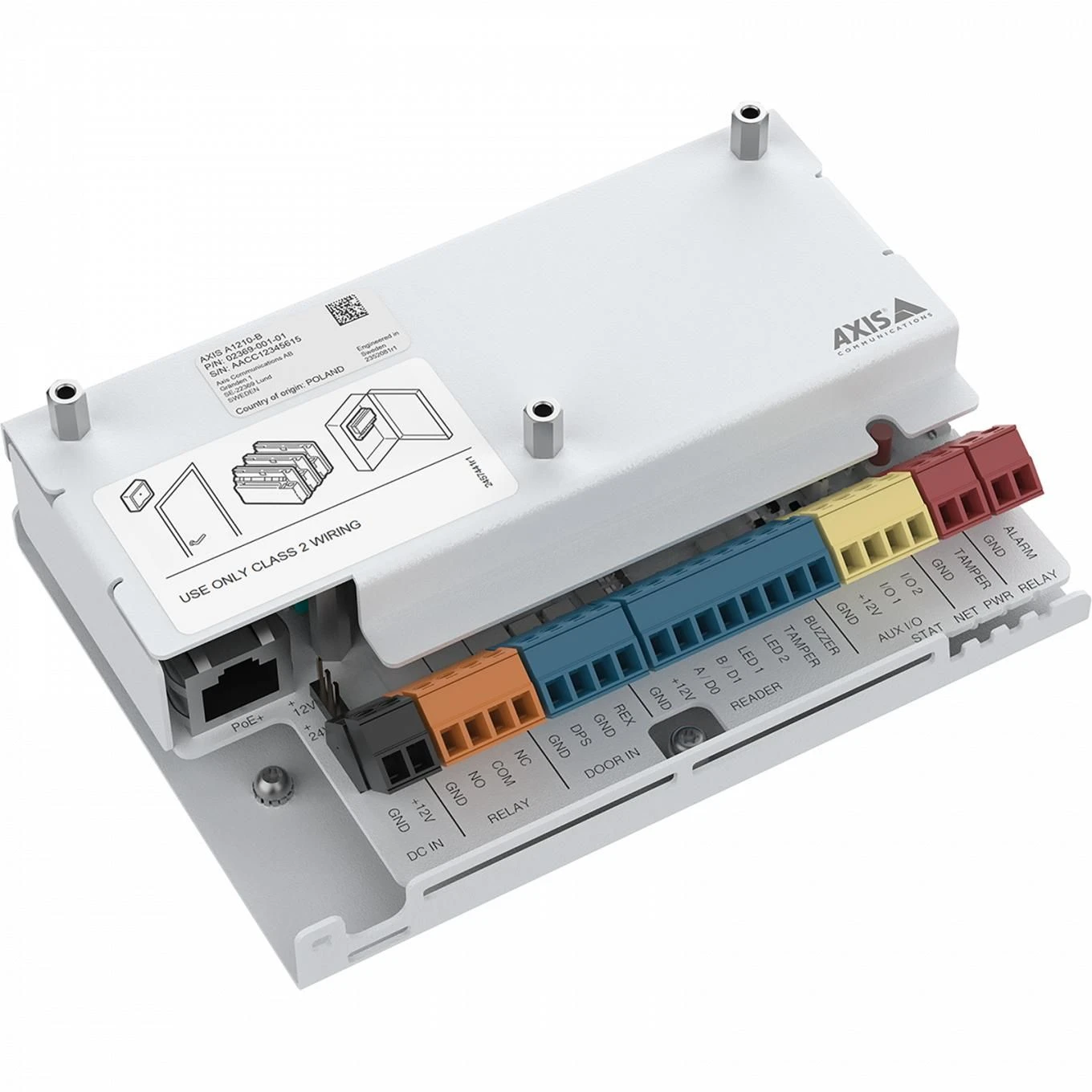

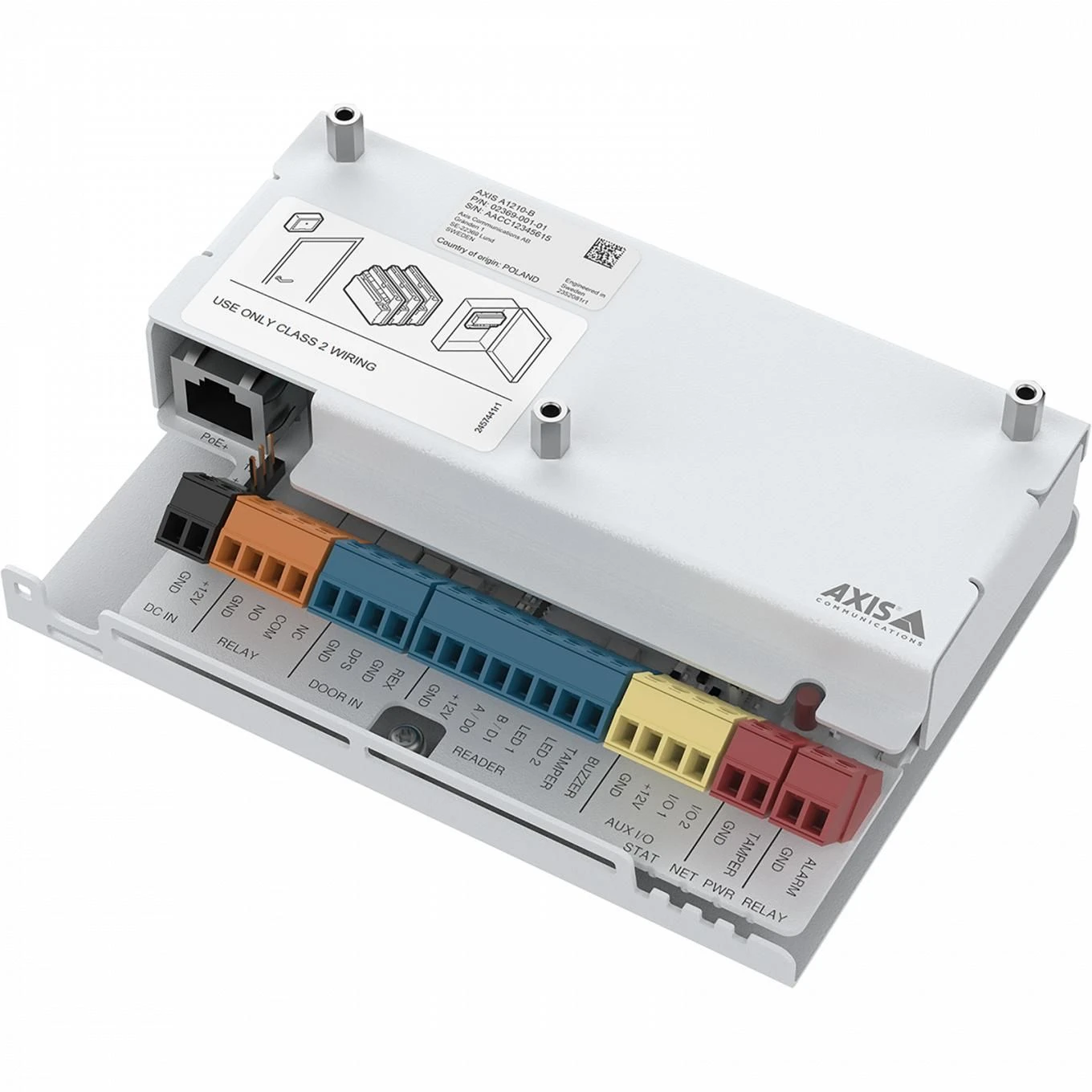

The Axis A1210-B network door controller is a lightweight, compact unit that offers easy installation even in areas where space is limited, providing users with a smaller footprint design than previous models. Featuring a keyhole mounting plate and support for DIN rail mount the A1210-B can be easily installed on walls. Not only this but it is possible to mount multiple barebone units in a rack, alternatively they can be stacked on top of each other making the unit ideal for installation in small spaces such as existing or newly installed cabinets.
Featuring two reader connections and a Form C relay to power the lock the unit has everything a user needs to control one door. With intelligence on the edge, the A1210-B offers built-in cybersecurity features to prevent unauthorised access and safeguard the system. Your Axis device ID is protected and authorisation of Axis products on your network is simplified by Axis Edge Vault. As well as this, cryptographic keys are securely and safely stored in the onboard EAL6+ Certified compute module.
Fully integrated within Axis end-to-end solution, the A1210-B is optimised for both small and large installations and designed to meet the user’s ever-changing needs. Up to 250k credentials and 250k event logs can be stored on the device, ensuring flexible and secure authentication using different types of credentials.
| Axis A1210-B | |
| Door Controller | |
| Door Controller | Network Edge door controller |
| Number of doors | One door |
| Important benefits | Efficient and cost optimised |
| Application | Compact design – install it anywhere |
| Access Control | |
| Number of credentials | 250,000 |
| Number of event history | 250,000 |
| Secure element | Axis Edge Vault with secure keystore |
| Identification type | Card, PIN, Duress PIN, QR code, License plate |
| Hardware | |
| Readers | OSDP or Wiegand |
| Relays | 1 x Form C relay Dry or Wet (12V DC/24V DC) |
| I/Os | 2 x configurable I/Os |
| Power supply | PoE+ or 12V DC |
| Power out | PoE+ : 1300mA @ 12V DC, DC : 2100mA @ 12V DC |
| Operating conditions | 0° C to 70°C |
