Axis A1214 Network Door Controller Kit

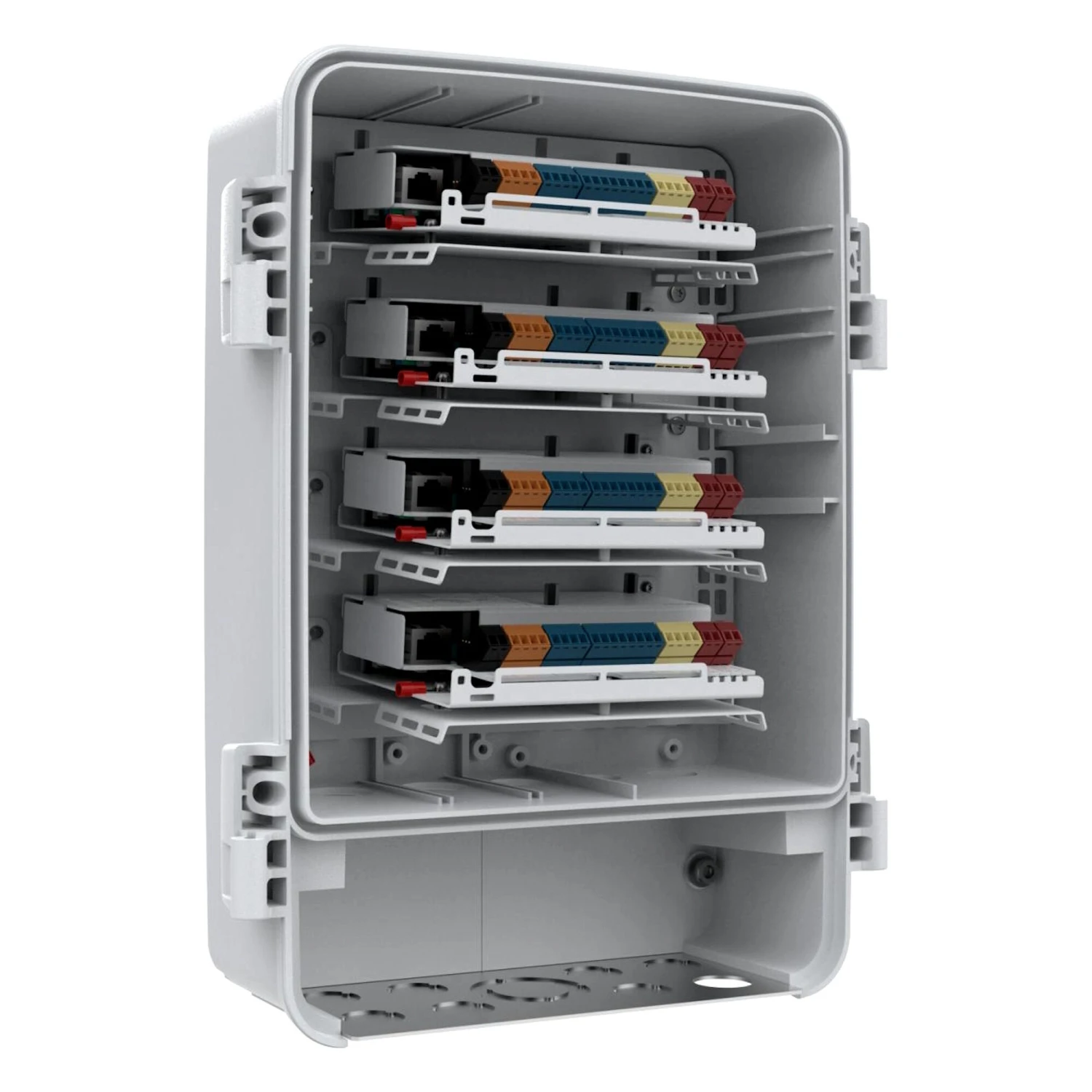

The Axis A1214 Network Door Controller Kit includes four Axis A1210-B units enclosed in an Axis TQ1808-VE Surveillance Cabinet. It is an all-in-one, out-of-the-box-ready kit that can control up to four doors. The Surveillance Cabinet is robust as well as weather and vandal resistant, with IK10, IP66, and NEMA 4x ratings.

Integrated within Axis end-to-end solutions, it’s optimised for both small and large installations and supports flexible authentication using various credentials. It also offers easy and fast installation and with intelligence on the edge, it can internally handle all tasks related to door access – even if the network is down. Furthermore, built-in cybersecurity features such as Axis Edge Vault prevents unauthorised access and safeguards your system.

---

Components:

– 4x Axis A1210-B Network Door Controller

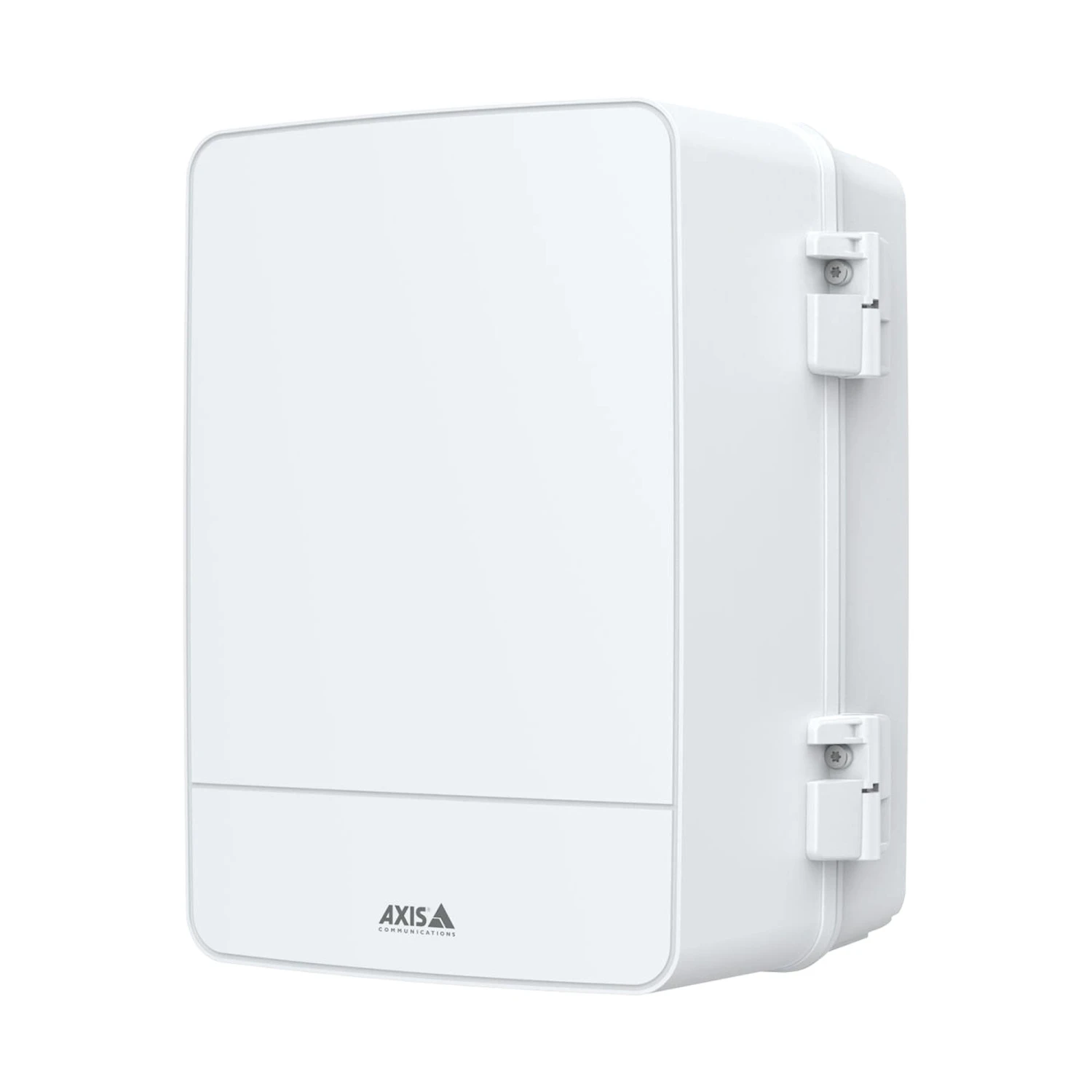

– 1x Axis TQ1808-VE Surveillance Cabinet

– 1x Axis TA1601 Mounting Plate

Axis A1210-B Network Door Controller
Door Controller
Door Controller	Network Edge door controller
Number of doors	Up to 4 doors
Application	Wall mount
Access Control
Number of credentials	250,000
Number of event history	250,000
Secure element	Axis Edge Vault with secure keystore
Identification types	Card, PIN, QR code, License plate
Hardware
Readers	Up to 2 x OSDP or 1 x Wiegand
Relays	1 x relay NO/NC
I/Os	2 x configurable I/Os
Power supply	12V DC or PoE
Power out	PoE: 900mA @ 12V DC, DC: 1600mA @ 12V DC
Operating conditions	0° C to 70°C

---
