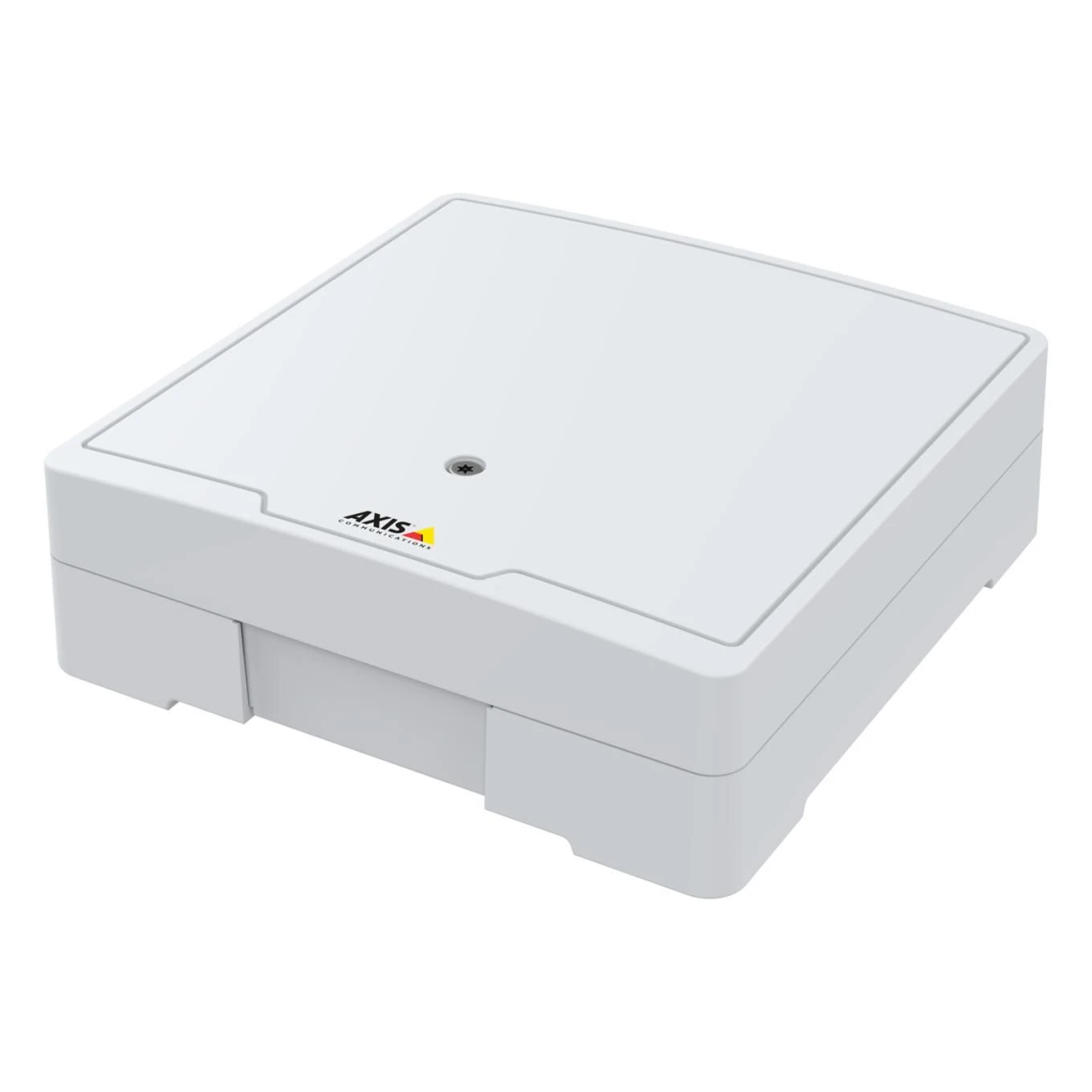

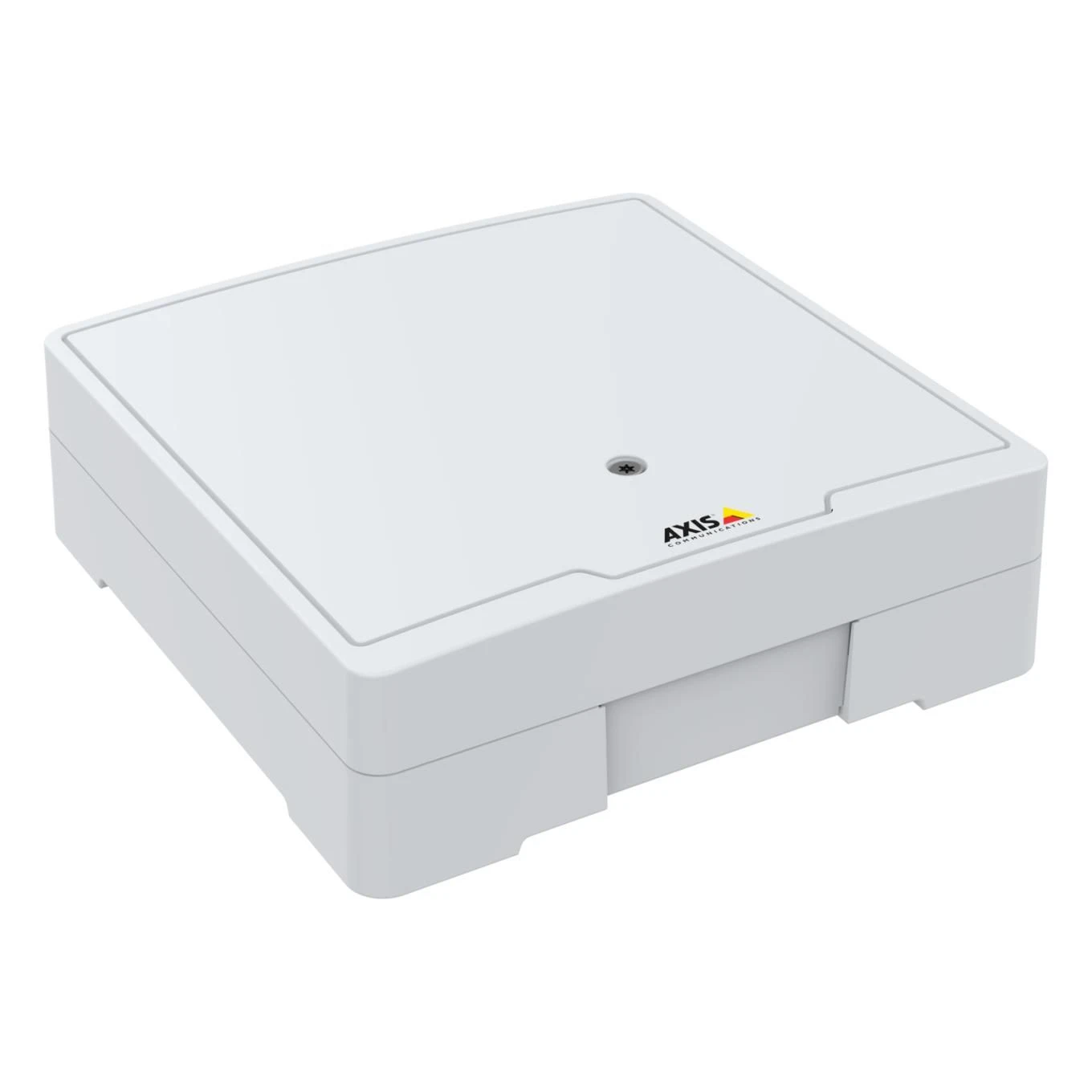

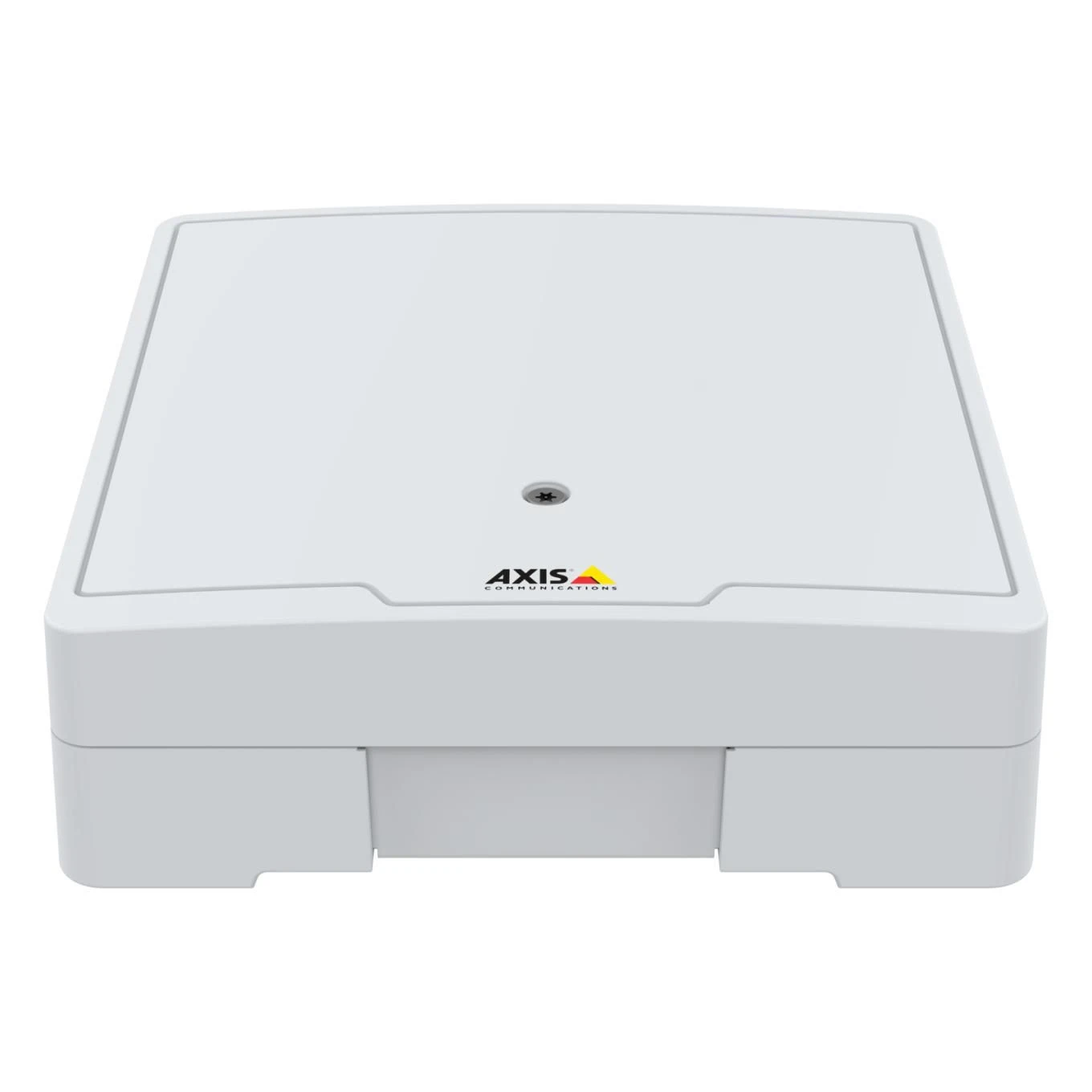

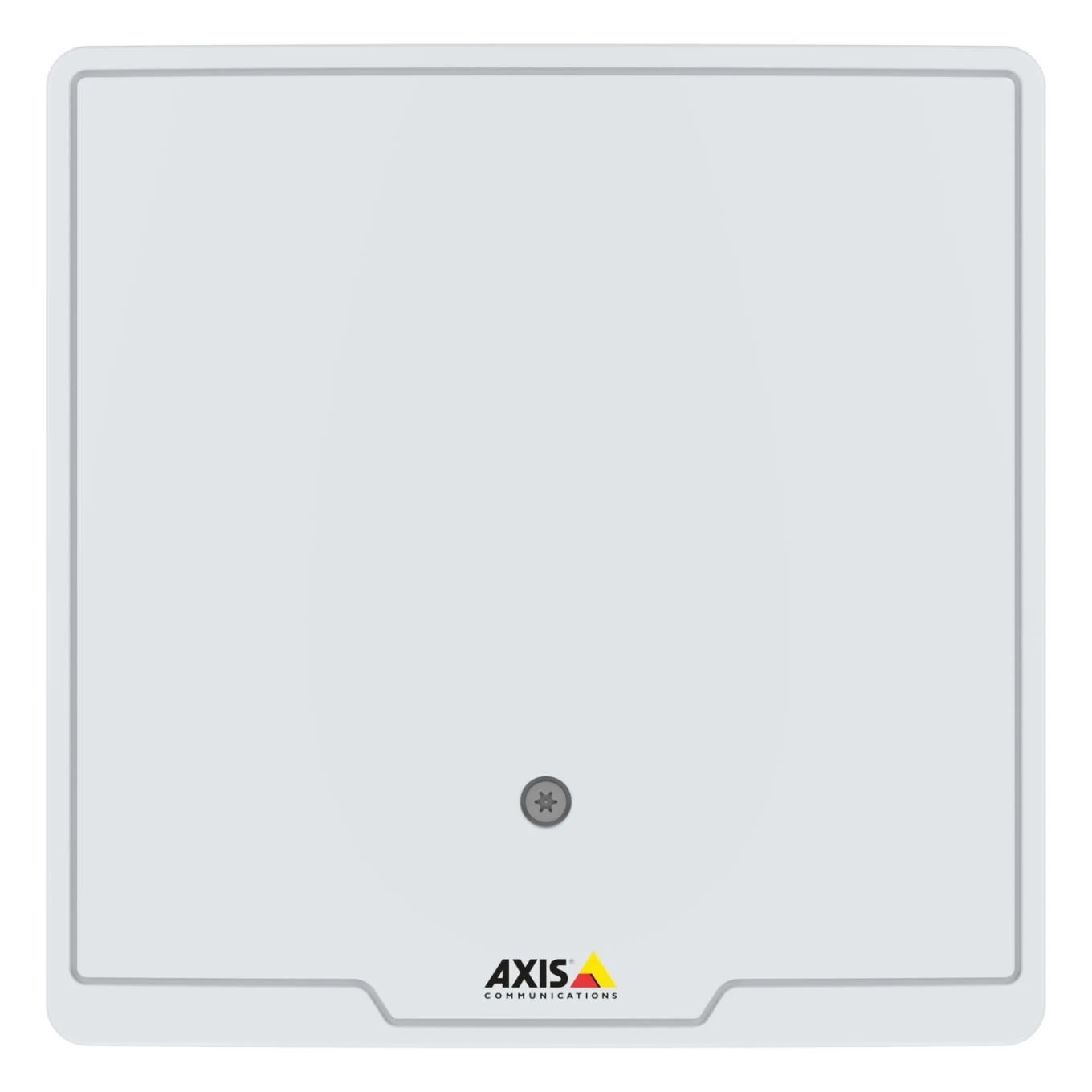

Axis A1610 Network Door Controller 02653-001

The Axis A1610 network door controller is ideal for use in various installations and applications with its robust design and powerful hardware which includes extra processing power, memory and storage. Six configurable auxiliary I/O ports make it easy to integrate the unit with sensors and external security systems. As well as this support for a DIN rail mount enables fast and easy installation on walls and with a plenum rating it is suitable for installation in plenum spaces, eliminating the need for an additional installation cabinet.

The A1610 features everything you need to control two doors with four reader connections and two Form C relays to power the onboard lock. With intelligence on the edge, the controller can internally handle all tasks related to door access even when the network is down. The system is safeguarded with cybersecurity features which help prevent unauthorised access. Axis Edge Vault protects the Axis device ID and simplifies authorisation of Axis products on the network.

---

Included Accessories:

– Installation guide

– Mating connectors (mounted)

– Grounding kit

– Cable ties

Axis A1610
Door Controller
Door Controller	Network Edge door controller
Number of doors	Up to 2 doors
Important benefits	Reliable  and high performance
Application	Versatile
Typical installation	Wall mount, DIN rail
Access Control
Number of credentials	250,000
Number of event history	250,000
Secure element	Axis Edge Vault with secure keystore
Identification type	Card, PIN, QR code, License plate
Hardware
Readers4	4 x OSDP or 2 x Wiegand
Relays	2 x Form C relay
I/Os	2 x configurable I/Os
Power supply	PoE+ or 10.5~28V DC
Power out	PoE+ : 1300mA @ 12V DC, DC : 2100mA @ 12V DC
Operating conditions	-40° C to 55°C

---
