Axis Audio Manager Pro C7050 Mk III Software 02723-003

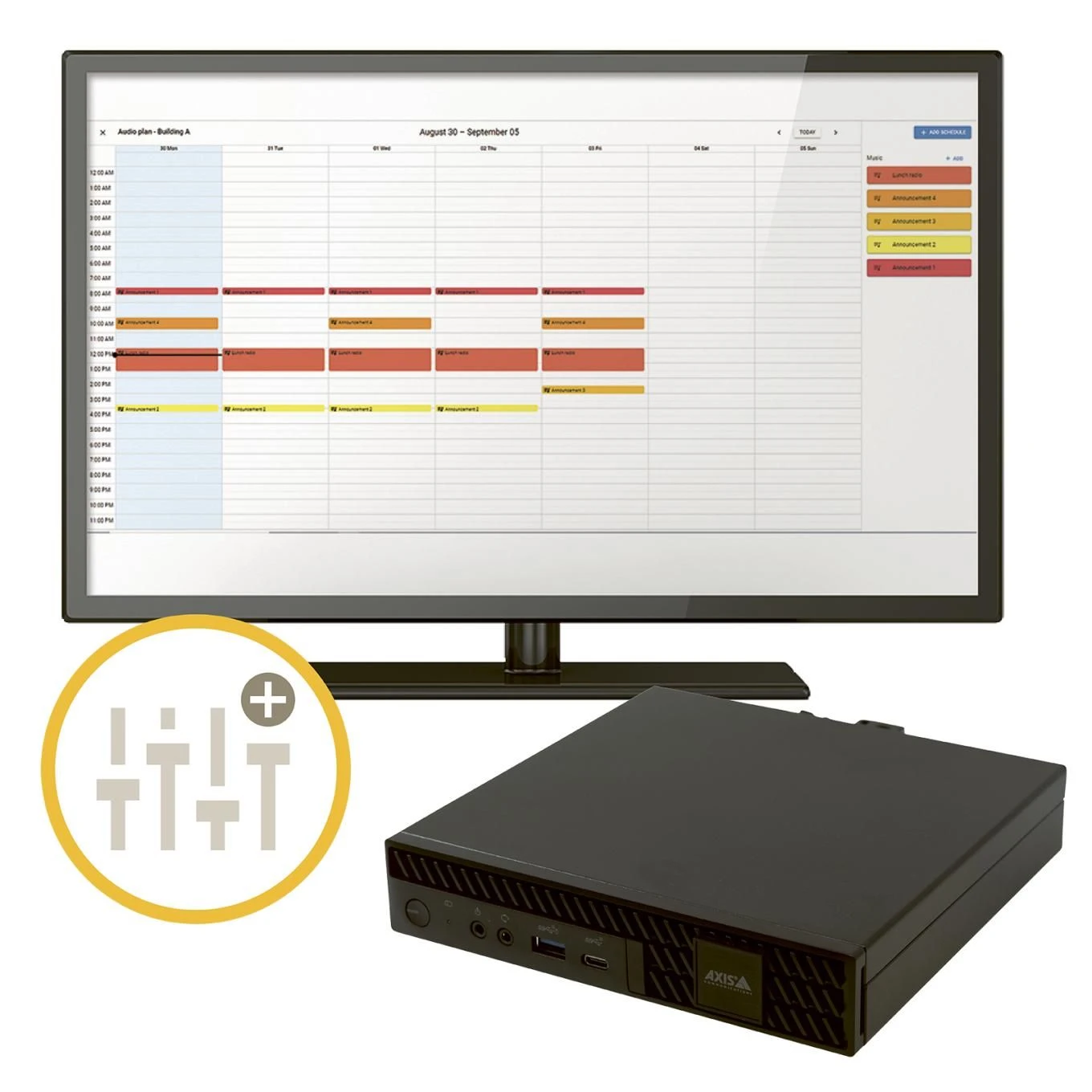

The Axis Audio Manager Pro C7050 Mk III is a complete audio management package that includes both hardware and software.

Central Control:

With the Axis Audio Manager Pro users can take control of their complete audio system from one single user interface, manage audio content and schedules, handle live or scheduled announcements, emergency messages, broadcast background music and more.

The right content in the right place:

Users can define many zones and play pre-recorded and/or live announcements or background music to any of these zones. Users can also broadcast the same content to all of the zones at the same time. Zones can have as little as one speaker in a single room or as much as 5000 speakers throughtout an entire building. Zones can be addressed separately or all at once.

The right content at the right time:

Content can be planned and scheduled with great flexibility. Users can mix and match content like live and pre-recorded voice messages, signals, bells, background music and radio streams. The content can be used to warn, instruct, inform or even just to create a calm/pleasant atmosphere in the building/room. As well as this rules can be set for prioritisation to determine which content take precedence if there are conflicting sources. This makes sure that urgent messages like emergency announcements are announced at the right time.

Easy integration with other systems:

The solution supports open protocols for easy integration with other systems. For example as your network audio solution is connected to your network and supports SIP, your VoIP (Voice over Internet Protocol) phone system to make live announcements via your speakers from any phone in your setup.

Grow or change as you like:

Users are able to quickly update settings in the software to ensure the right content is played at the right time and in the right locations. These changes can be made in real-time with no downtime and as users can access the system with a web browser, these changes can be made from a remote location.

Axis Audio Manager Pro C7050 Mk II

Processor	Intel Core i3-12100T
Memory	8GB (2 x 4GB)
Storage	256GB SSD
Graphics card	Intel UHD Graphics
Operating System	Microsoft® Windows® 10 IoT Enterprise LTSC 2021 Built-in operating system recovery: yes
Power	Max 90 W, 100–240 V AC, 1.5 A 50/60 Hz, 19,5 V DC, 4,62 A External AC/DC adapter
Connectors	Front side: 1x Audio line in/out 1x Universal audio jack 1x USB 3.2 1x USB 3.2 gen 2 2×2 USB-C port Rear side: 1x RJ45 Ethernet 4x USB 3.2 2x DisplayPort™1.4a
Operating Conditions	0 °C to 45 °C (32 °F to 113 °F) Humidity 20–80% RH (non-condensing)
Dimensions	182 x 36 x 178mm
Weight	1.1kg

Axis Audio Manager Pro

Supported Devices	Up to 5000 audio devices and 100 zones
Licenses	Unlimited
Compatible Products	C1004-E White C1004-E Black C1210-E C1211-E C1310-E C1410 C1510 C1511 C1610-VE C2005 C3003-E C8033 C8110 C8210 2N SIP Mic
Operating System	Windows 10 IoT 2016 LTSB Windows Server 2016, 2019
Minimum Requirements	Hardware installation: Intel® Core™ i3-7100T Virtual machine support: VMware ESXi, Microsoft Hyper-V, and Microsoft Windows Datacenter with configuration and resources allocated similar to the minimum hardware requirements.
Audio Streaming	Opus 48 kHz stereo with 64, 192 or 320kbps
Audio Sources	Axis network audio products with audio line-in or mic input Internet radio supported file formats: m3u, pls, asx Two-way communication (SIP)
Supported Audio File Formats	mp3, mp4, mpeg, aac, wma, ogg, flac, wav
Supported Protocols	IPv4, HTTP, HTTPS, DNS, NTP, RTP, RTSP, TCP, UDP, DHCP, SIP, mDNS, M3U

---
