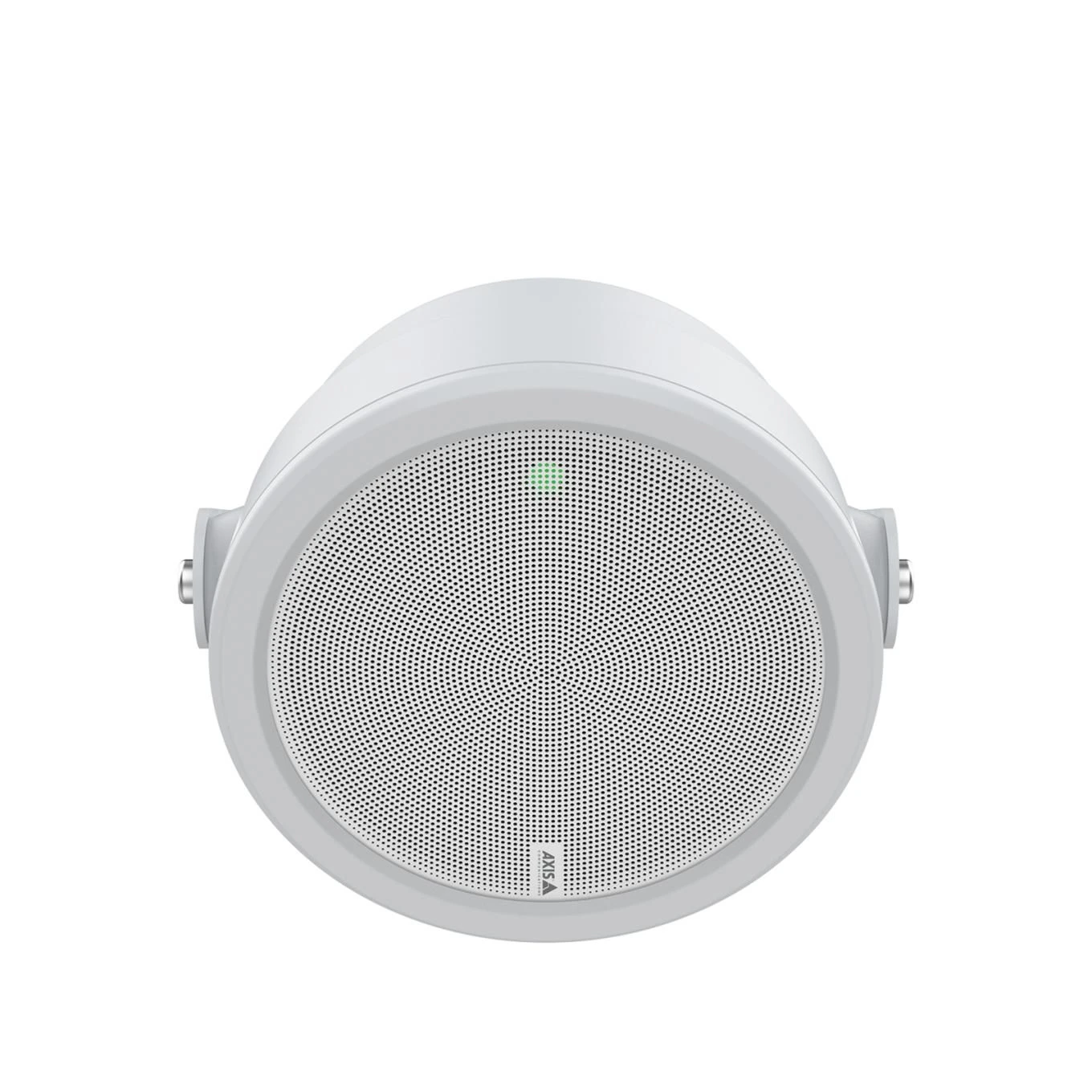

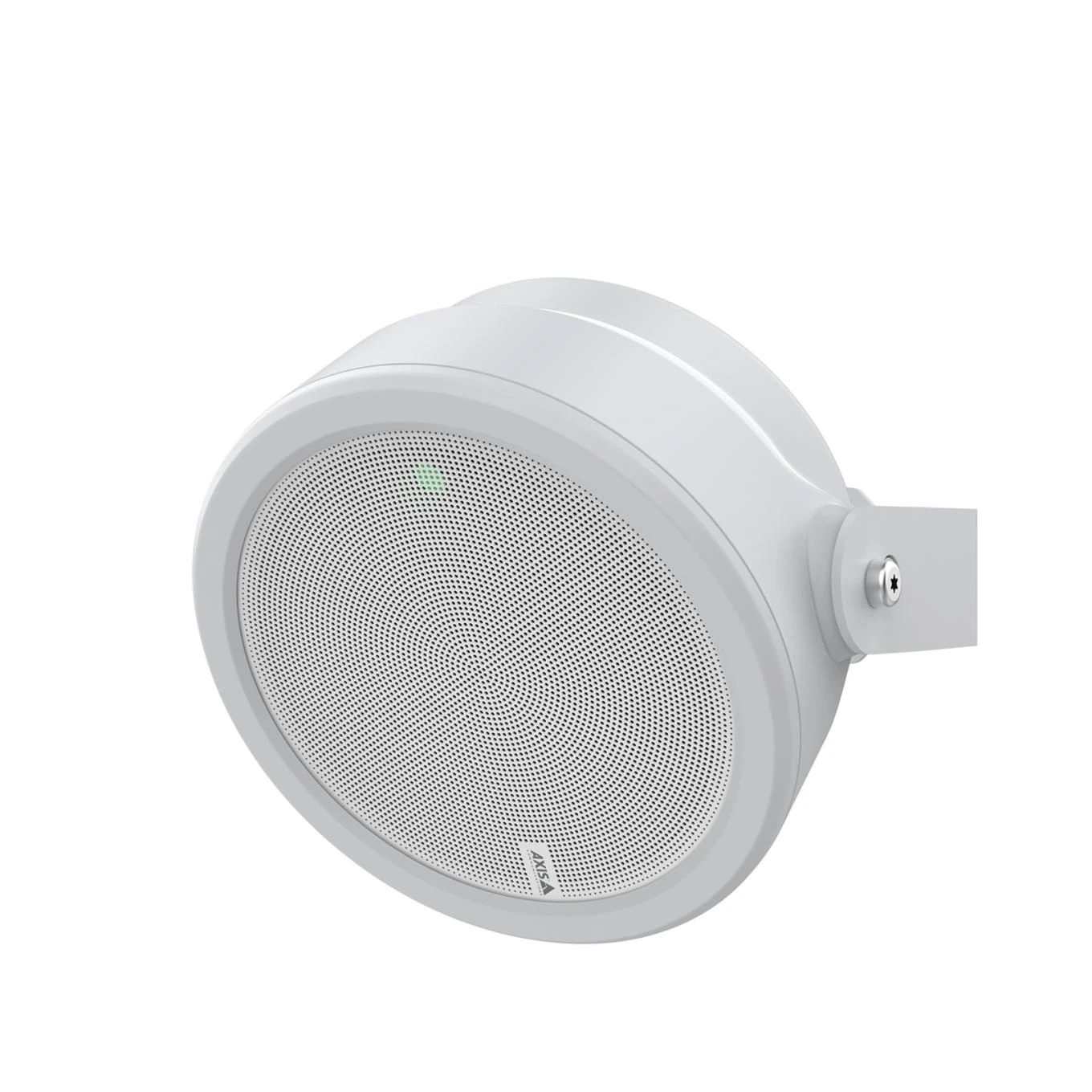

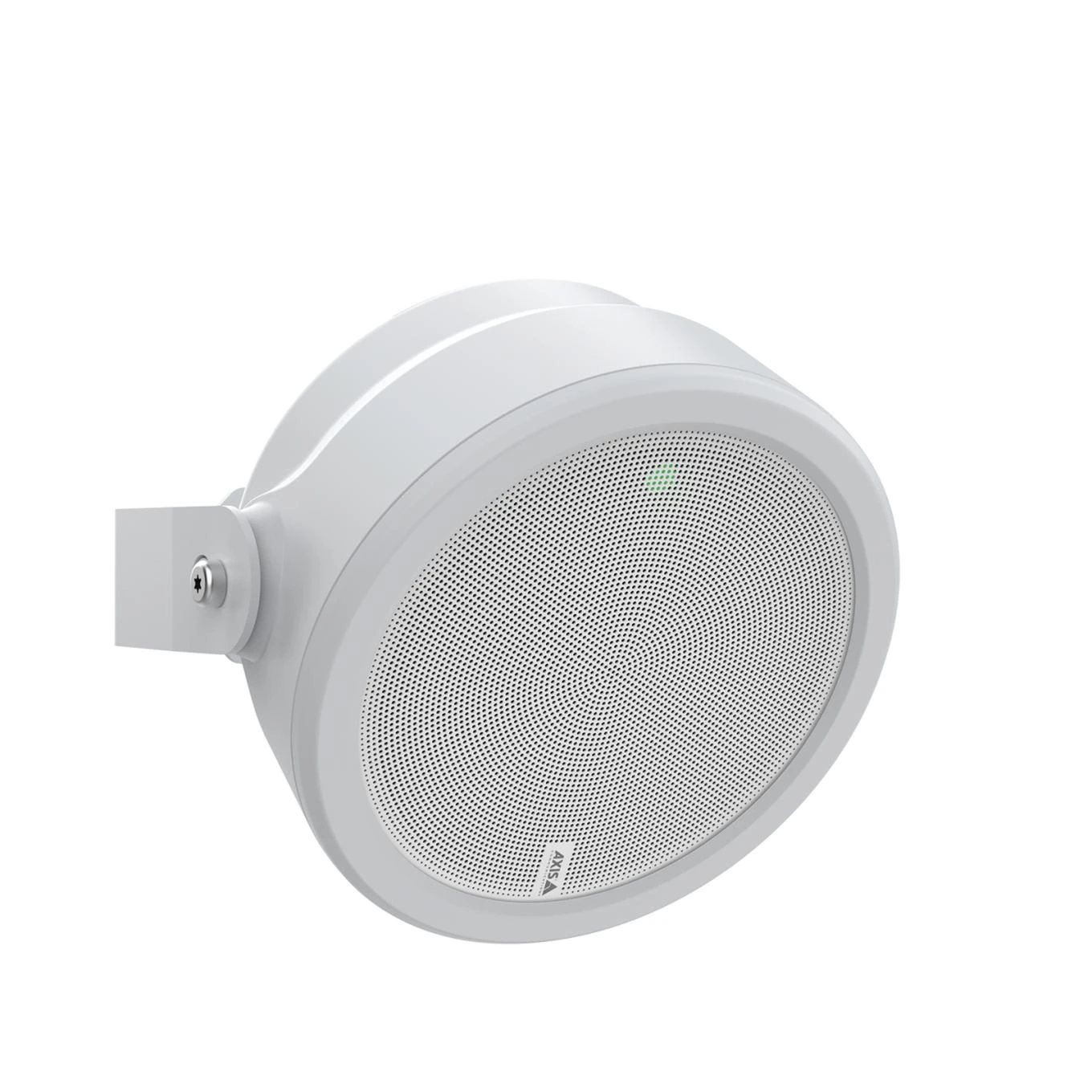

Axis C1610-VE Network Sound Projector 02380-001

The Axis C1610-VE is an outdoor-ready network speaker which features a sleek, minimalistic design to suit a wide range of applications. Built to withstand temperatures ranging from -40° ~ 55°C, the C1610-VE provides users with clear, dependable voice messages both indoors and outdoors. As well as this the unit comes ready for wall, pole and ceiling mounting and features an IK10-rated vandal-resistant housing to give users peace of mind in any outdoor application.

This all-in-one unit connects to the standard network, making it a flexible, scalable and cost-effective solution. Preconfigured for excellent sound using a digital signal processor (DSP) the C1610-VE is packed with smart features including a built-in microphone for remote health testing and two-way audio communication, I/O ports for integration with additional systems and devices, and an integrated LED for visual status confirmation. Not only this but the embedded Axis Audio Manager Edge software lets users manage their audio system via any standard web browser.

The C1610-VE offers a natural, rich sound which makes the unit an excellent option for all voice messaging needs, including playing background music. High-quality audio can be used confidently as part of a person’s security, operational, and safety solutions. Along with this, users can schedule prerecorded announcements, broadcast live speak or integrate it with other network devices.

Axis C1610-VE
Audio Hardware
Enclosure	One-way enclosure w/ 4-inch broadband dynamic cone speaker
Max sound pressure level	106dB
Frequency response	200Hz – 16 kHz
Audio input/output	Built-in microphone
Digital signal processing	Built-in and pre-configured
Amplifier description	Built-in 7 W Class D amplifier
Audio Management
Axis Audio Manager Edge	Built-in: – Content management for music and live/pre-recorded announcements. – Scheduling to decide when and where to play specific content. – Content prioritization to ensure urgent messages interrupt the schedule. – Zone management allowing you to divide up to 200 speakers into 20 zones. – Health monitoring for remote discovery of system errors. – User management to control who has access to what features. See separate datasheet for more details.
Axis Audio Manager Pro	For larger and more advanced systems. Sold separately. See separate datasheet for specifications.

---

Included Accessories:

– Installation guide

– AVHS authentication key

– Axis Camera Station license key

– Axis Connector Guard A

– Cable shoe
