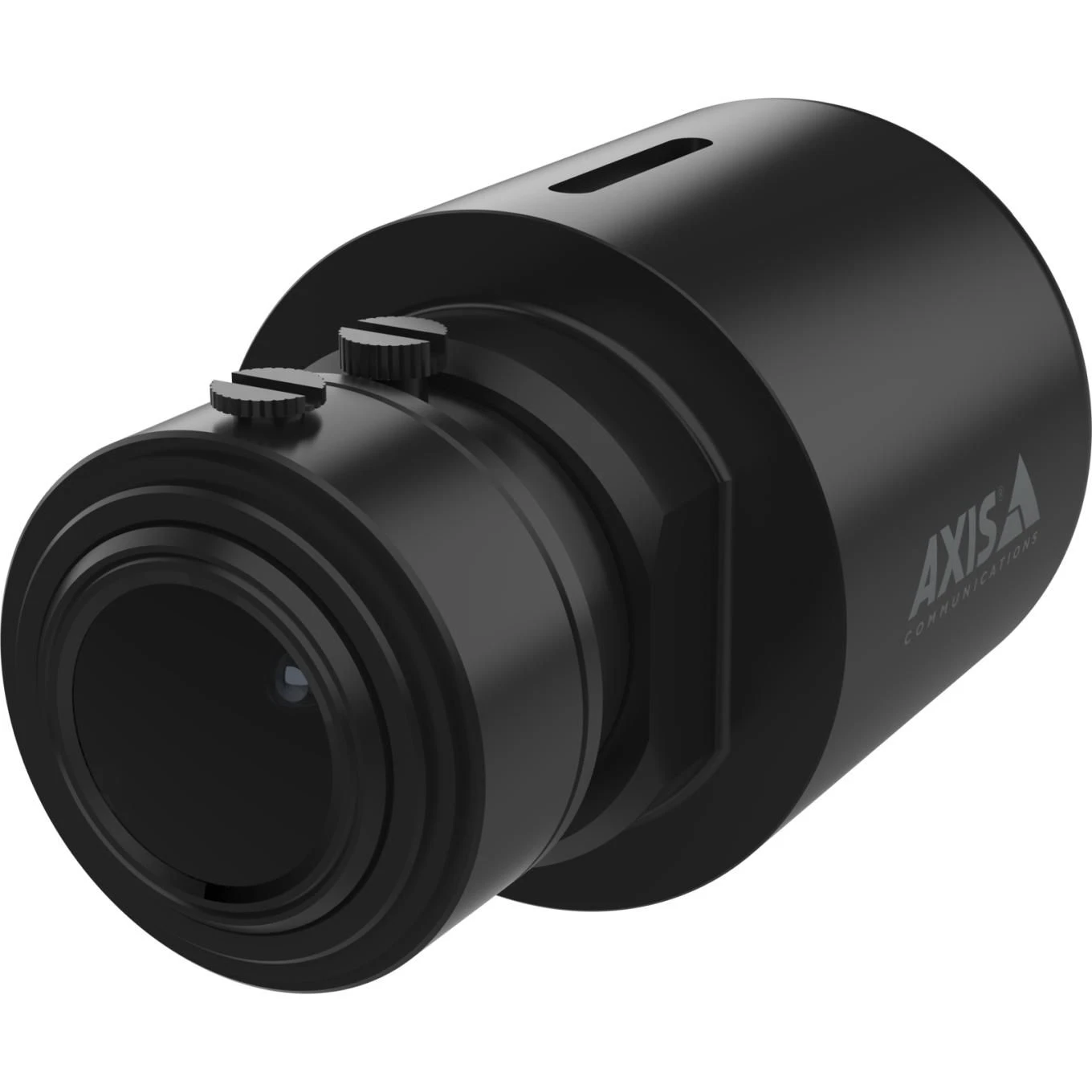

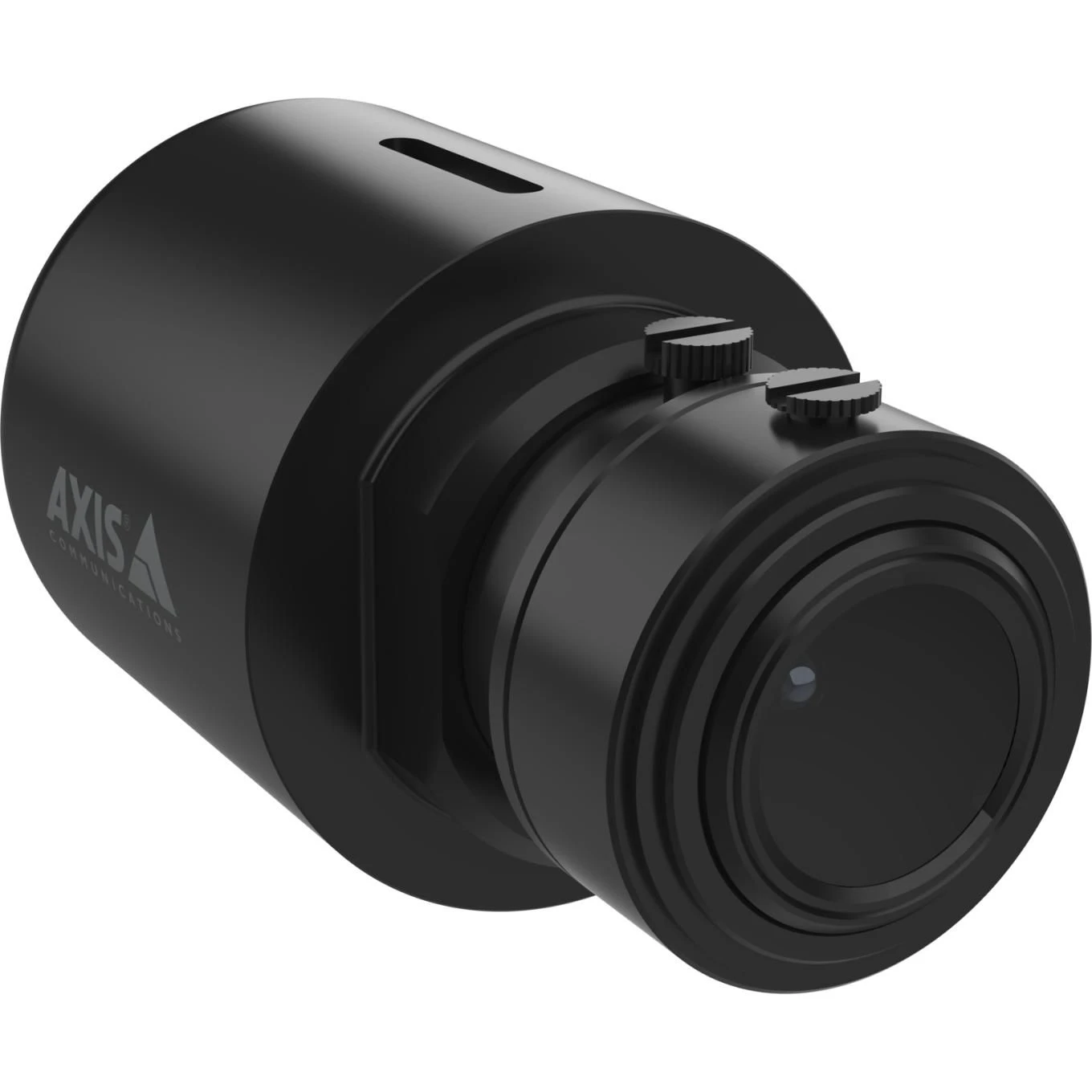

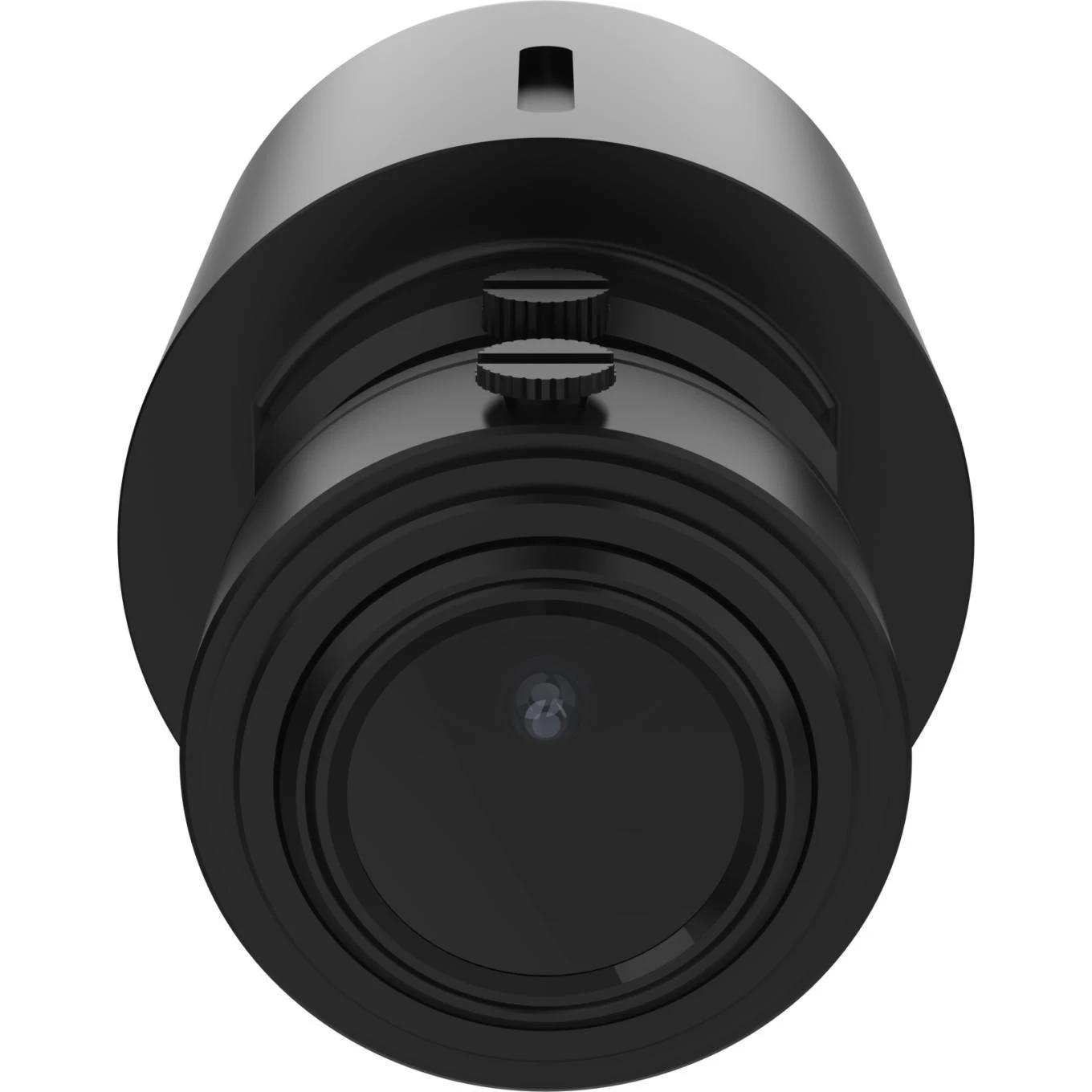

Axis F2115-R Varifcoal Sensor 02639-001

The Axis F2115-RE has been designed for use with 2nd generation main units and cables with SMA-FAKRA connectors to withstand vibration and ensure a ruggedised installation.

The F2115-RE has been designed for indoor applications in ATMs, vending machines, buses, and other vehicles. This sensor can be installed almost anywhere, in tight spaces, behind glass, metal or even plastic sheeting.

The sensor is able to deliver high-quality video even in challenging and low-light conditions thanks to features such as ForensicWDR. ForensicWDR provides clarity in scenes where there are both dark and light areas. With a 107° ~ 56° horizontal field of view users are able to select the area of coverage that best suits their application.

Discreet installation is guaranteed with only the small sensor visible externally. The F2115-RE design is based on a divided network camera concept which allows for maximum flexibility. Cable type and length (up to 30 m/ 98 ft) are chosen based on your specific needs. Furthermore, there’s a variety of accessories available for mounting options and flexible installation.

	F2115-RE
Image Sensor	1/2.8″ progressive scan RGB CMOS
Lens	3.2 ~ 5.7mm, F2.2 ~ F3.1 For 1080p: 107.4° ~ 56.3° horizontal field of view For 720p: 68° ~ 37° horizontal field of view
Minimum Illumination	Colour: 0.1lux
Day and Night	Fixed IR-cut filter
Shutter Speed	With AXIS F9111: 1080p, 25/30 fps: 1/20000 s to 1.5 s 1080p, 50/60 fps: 1/27000 s to 1 s HDTV 720p, 175/180 fps: 1/32500 s to 0.5 s With AXIS F9104-B, F9114 and F9114-B: 1080p, 25/30 fps: 1/20000 s to 1.5 s HDTV 720p, 50/60 fps: 1/32500 s to 0.5 s
Casing	IP65 Aluminum Color: black NCS S 9000-N
Power	Typical 1W, max. 1.7W
Operating Conditions	-40°C to 60 °C (-40°F to 140 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F)
Dimensions	50 mm (1.9 in) ø 29.8 mm (1.2 in)
Included Accessories	Installation guide
Required Hardware	AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F91 Main Unit  (Must be purchased separately)

---
