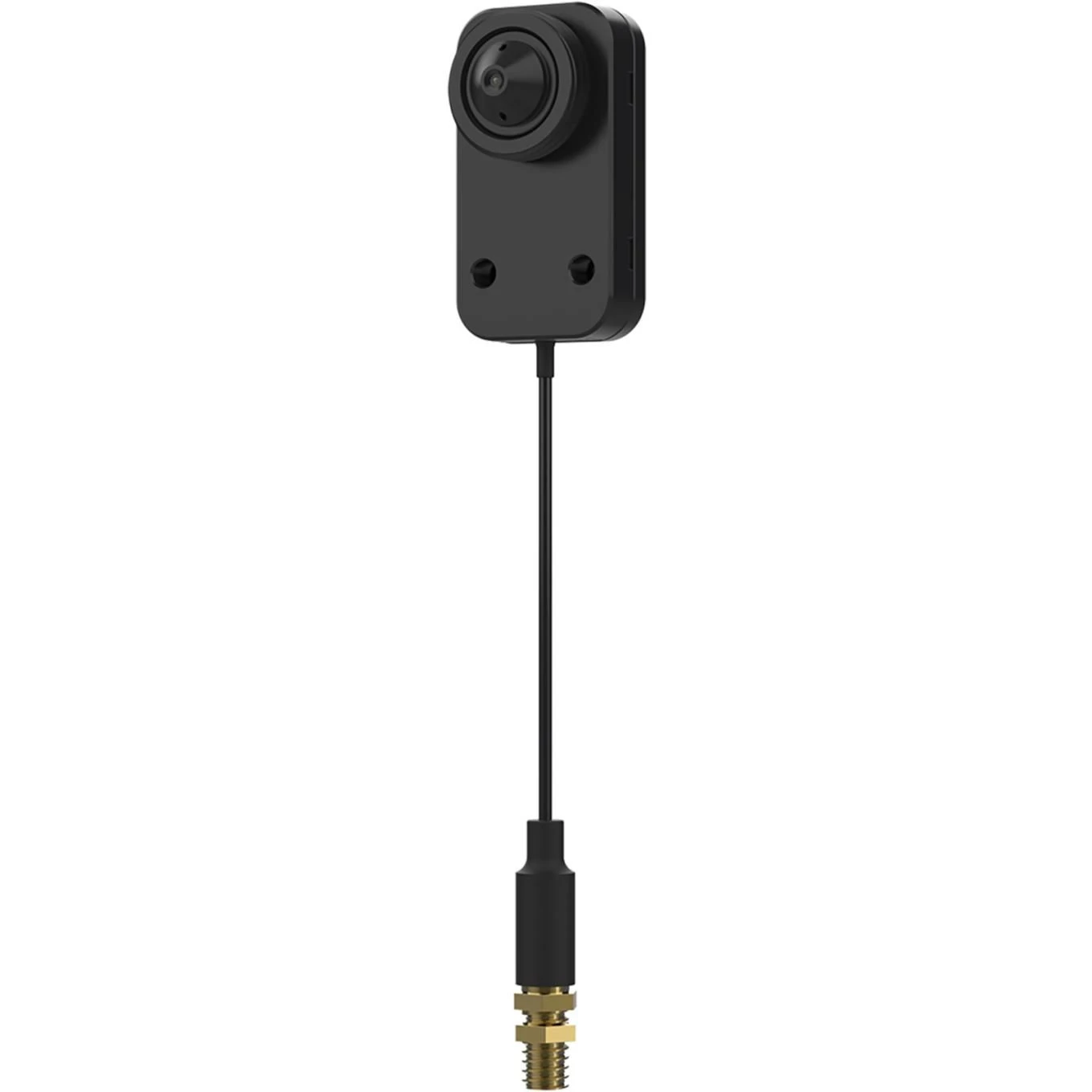

Axis F7225-RE Pinhole Sensor 02363-001

The Axis F7225-RE has been designed for use with 2nd generation main units and cables with SMA-FAKRA connectors to withstand vibration and ensure a ruggedised installation.

The F7225-RE has been designed for both indoor and outdoor applications and can operate in temperatures from -30°C ~ 55°C.

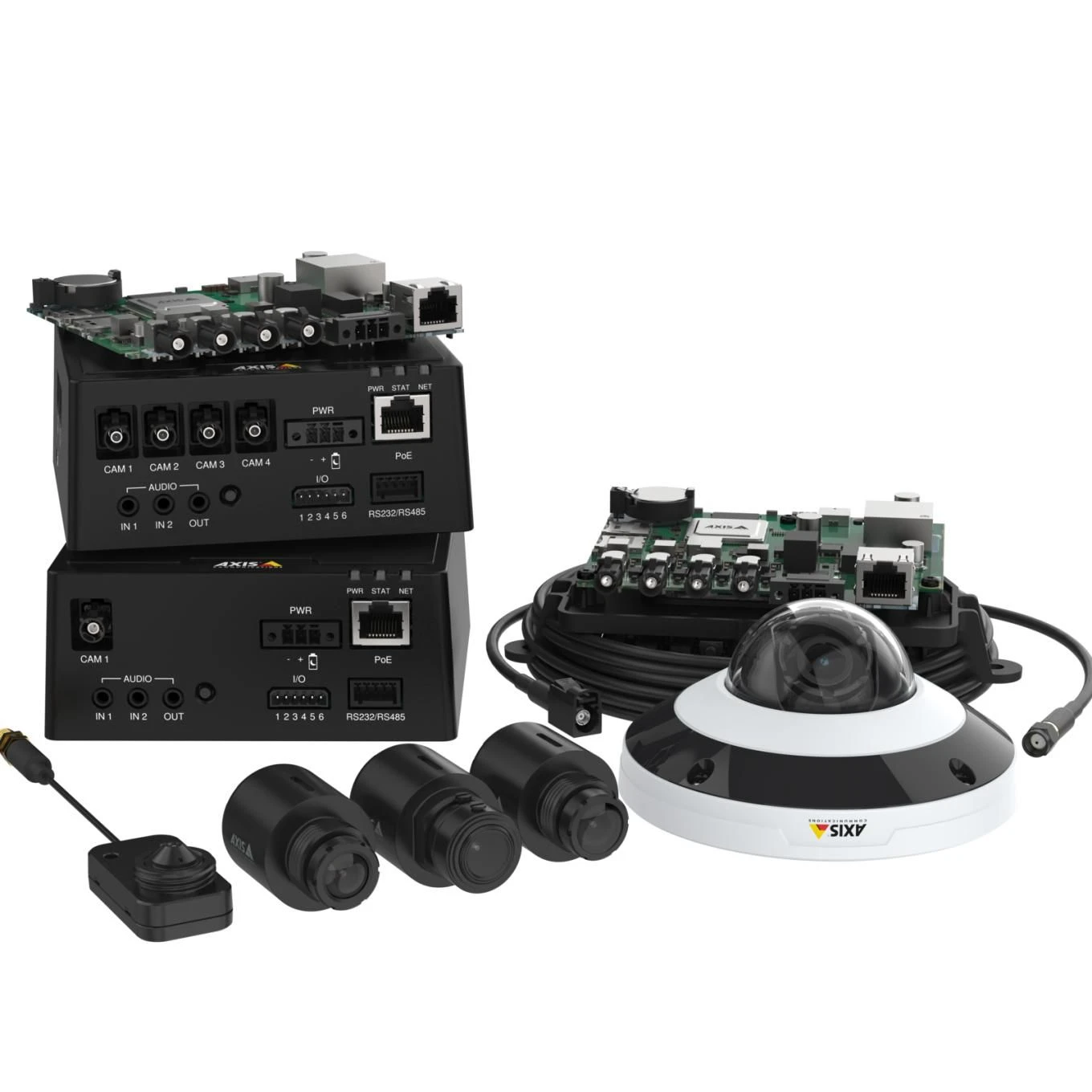

Designed for extremely discreet surveillance, only the sensor is visible. Based on a divided network camera concept, the lens is designed for use with Axis F91 main units to ensure maximum flexibility. Not only this but the F4105-RE can be installed in tight places, behind metal, glass or plastic sheets.

The F7225-RE is able to deliver high-quality video even in challenging and low-light conditions thanks to features such as ForensicWDR. ForensicWDR provides clarity in scenes where there are both dark and light areas. With a 97° horizontal field of view, the unit is ideal when a wide area of coverage is needed.

	F2115-RE
Image Sensor	1/2.8″ progressive scan RGB CMOS
Lens	3.7mm, F2.5 For 1080p: 97° horizontal field of view For 720p: 58° horizontal field of view
Day and Night	Fixed IR-cut filter
Minimum Illumination	Colour: 0.3lux at 50 IRE, F2.5
Shutter Speed	With AXIS F9111: 1080p, 25/30 fps: 1/20000 s to 1.5 s 1080p, 50/60 fps: 1/27000 s to 1 s HDTV 720p, 175/180 fps: 1/32500 s to 0.5 s With AXIS F9104-B, F9114 and F9114-B: 1080p, 25/30 fps: 1/20000 s to 1.5 s HDTV 720p, 50/60 fps: 1/32500 s to 0.5 s
Resolution	Maximum 1920×1080 HDTV 1080p
Casing	IP66/67-rated aluminum front casing and plastic rear cover
Power	Typical 0.9 W, max 1.9 W
Operating Conditions	-30 °C to 55 °C (-22 °F to 131 °F) Humidity 10-85% RH (non-condensing)
Dimensions	45 x 25 x 20 mm (1.8 x 0.98 x 0.79 in)
Included Accessories	Installation guide AXIS F8202 Straight Mounting Bracket
Required Hardware	AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F91 Main Unit  (Must be purchased separately)

---
