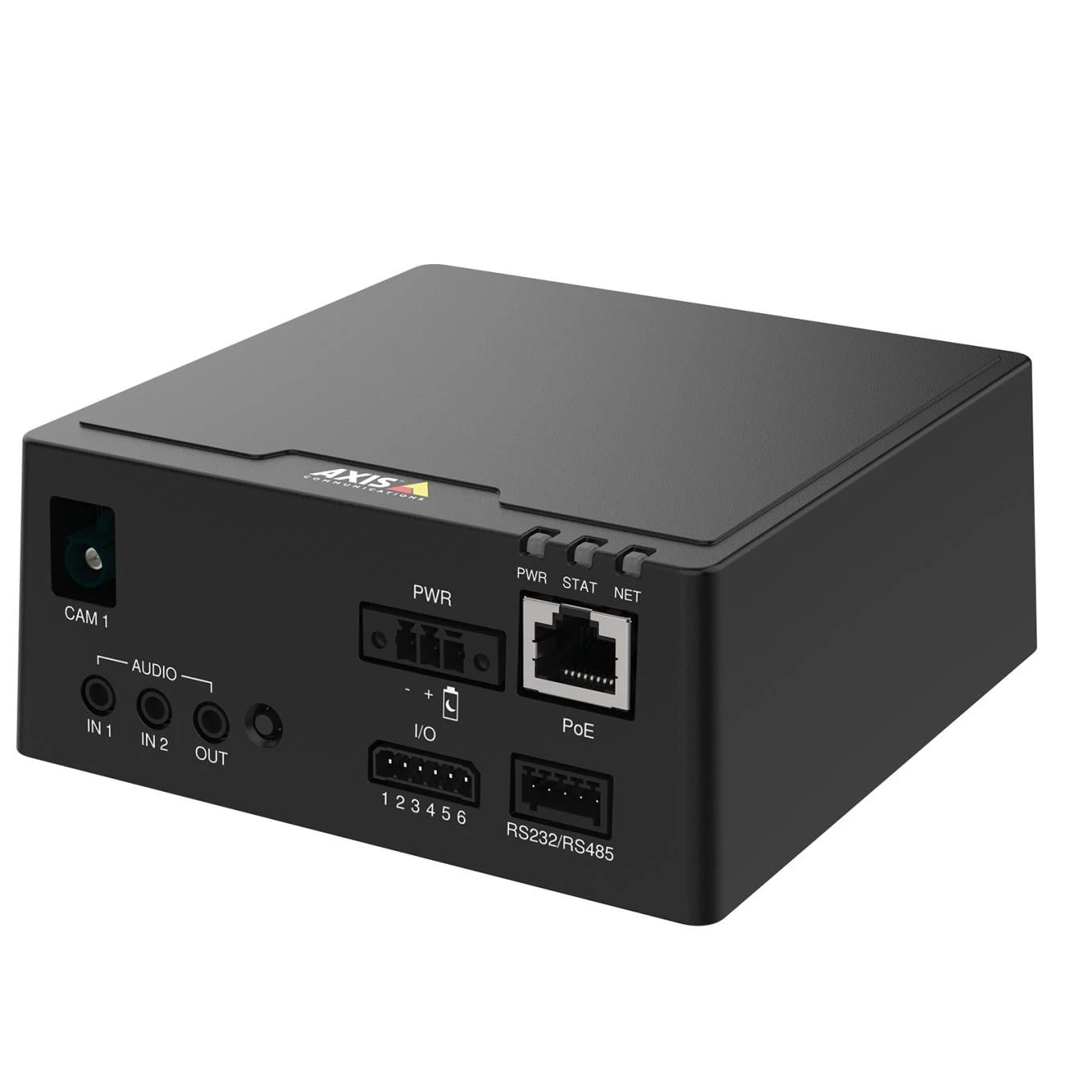

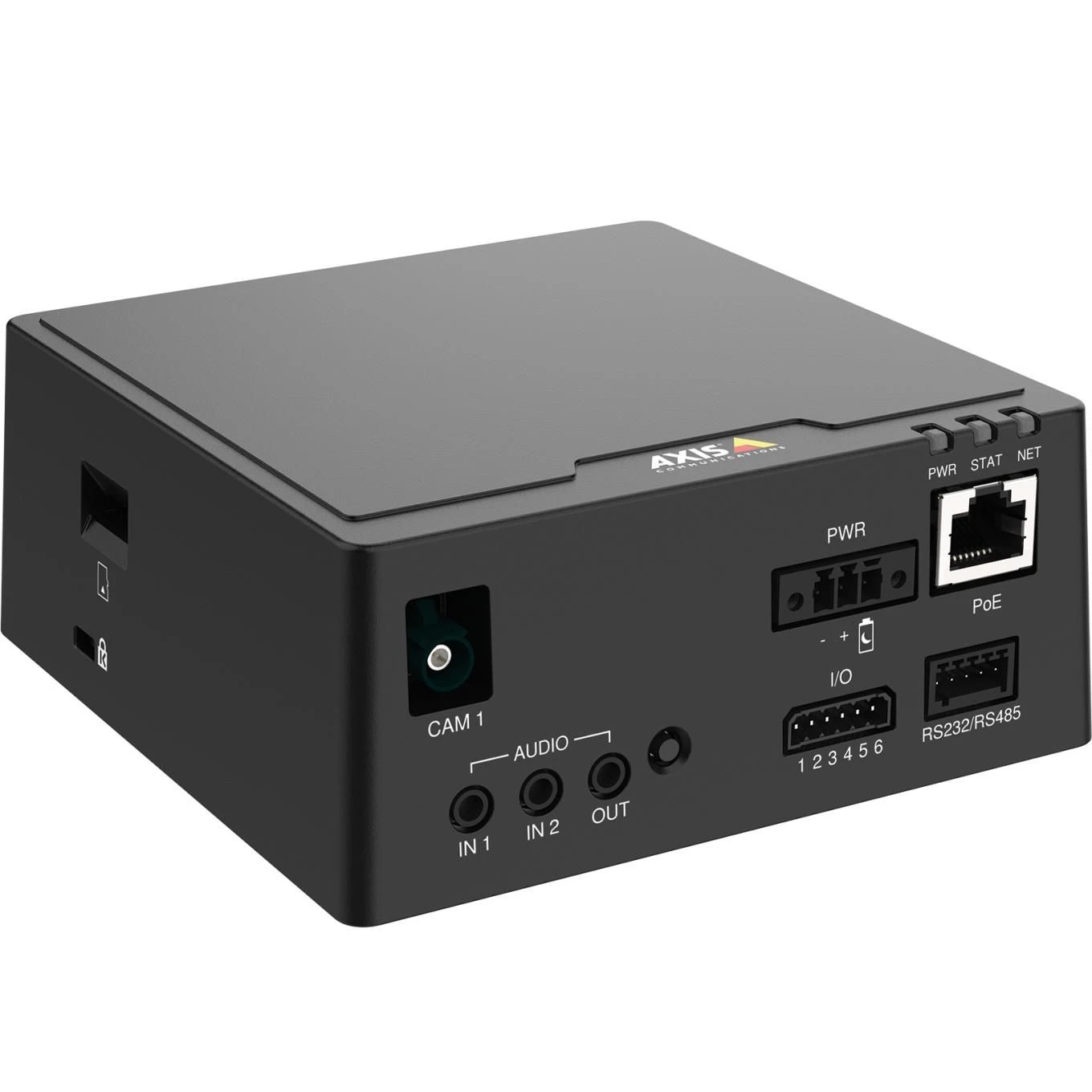

Axis F9111 1-Channel Main Unit 01990-001

The Axis F9111 single-channel main unit has been designed for use with 2nd generation sensors and cables from the Axis F series. With SMA-FAKRA connectors it withstands vibrations and ensures a ruggedized installation.

The F9111 provides one HDTV 1080p video stream at 60fps or one 720p video stream at up to 180fps. Axis Zipstream with support for H.264 and H.265 enables the device to reduce storage and bandwidth requirements without compromising on the image quality. Forensic WDR enables the device to provide clarity in scenes where there are both light and dark areas and Axis Lightfinder captures sharp, colour images even in low light.

Ideal for use in emergency vehicles and buses, the F9111 includes an ignition control functionality with controlled shutdown to ensure that the vehicle’s battery is not drained. As well as this the unit supports two-way audio and I/O making it possible to connect a digital or analogue microphone enabling users to listen in and trigger audio warnings.

Not only this but the device includes built-in cybersecurity features such as Axis Edge Vault to protect users’ Axis device ID and to simplify the authorisation of Axis devices on your network. The F9111 is based on a divided network camera concept and so enables maximum flexibility with both sensor unit and cable type and lengths are chosen based on the individual user needs.

	F9111
System on Chip (SoC)
Model	ARTPEC-7
Memory	2 x 1024MB RAM, 512MB Flash
Compute Capabilities	Machine Learning Processing Unit (MLPU)
Video
Video Compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG
Resolution	1920 x 1080 HDTV 1080p
Frame Rate	Up to 30fps in 1080p (WDR Mode) Up to 60fps in 1080p Up to 180fps in 720p
Video Streaming	Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator
Image Setting	Contrast, brightness, sharpness, Forensic WDR, fixed orientation aid, white balance, tone mapping, exposure control, exposure zones, compression, rotation: 0°, 90°, 180°, 270°, mirroring, polygon privacy mask, control queue
Audio
Audio Streaming	Two-way, full duplex
Audio Encoding	24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate
Audio Input/Output	2x external microphone input or line input, 1x line output, ring power, digital audio input
Network
Security	IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS)a network access control, multi-level user, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified)
Network Protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, RTCP, DHCP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G and ONVIF® Profile S, specification at onvif.org
Event Conditions	Device status, digital audio, edge storage, I/O, PTZ, scheduled event, video
Event Actions	Play audio clip, toggle I/O, send images, MQTT publish, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips
Data Streaming	Event data
Analytics
Axis Object Analytics	Object classes: humans, vehicles Trigger conditions: line crossing, object in area Up to 10 scenarios Metadata visualized with color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event
Applications	Included: AXIS Video Motion Detection Supported: AXIS People Counter, tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap
General
Power	Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 10-48V DC, typical 11W, max 25.5W
Connectors	RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE FAKRA for sensor units 6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA 3.5 mm mic/line in, 3.5 mm line out 5-pin terminal block RS232/RS485 3-pin terminal block for 10-48 V DC input
Approvals	EMC CISPR 24, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, EAC, ECE R10 rev.05 (E-mark) Safety IEC/EN/UL 62368-1, UN ECE R118, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP3X, IEC/EN 61373 Category 1 Class B, NEMA TS 2 (2.2.7-2.2.9) Network NIST SP500-267

---

Included Accessories:

– Installation guide

– Windows Decoder 1-user license

– Connector kit

---
