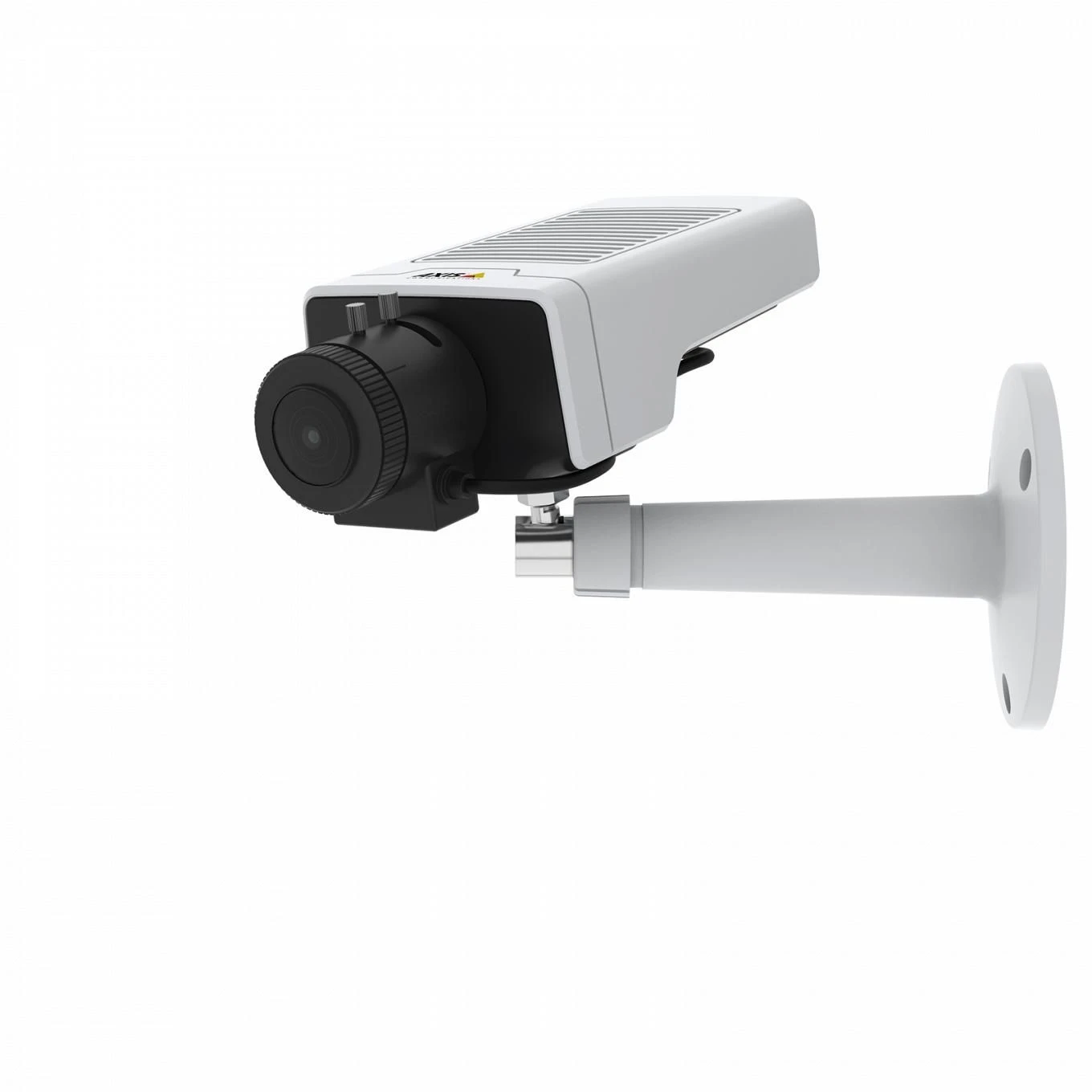

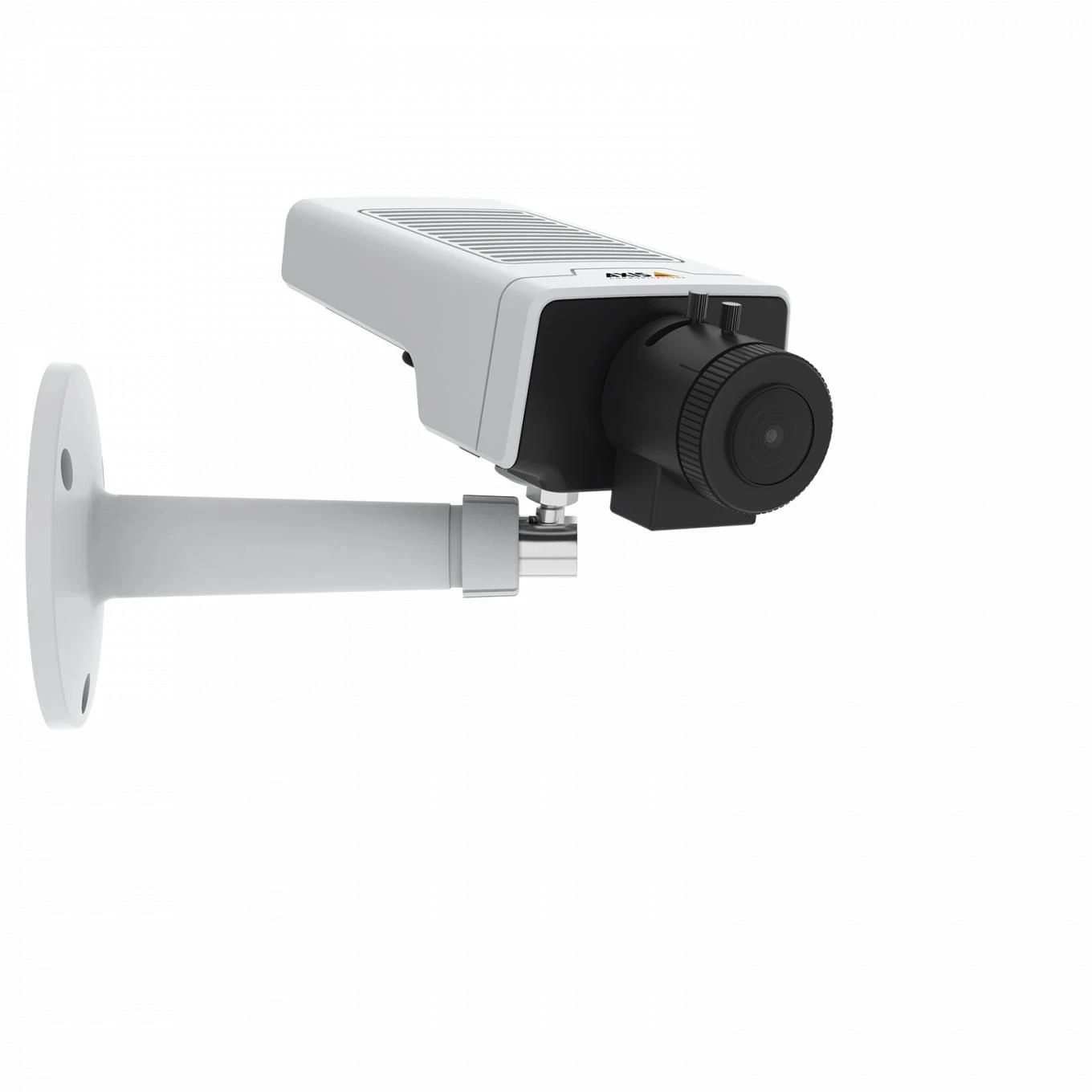

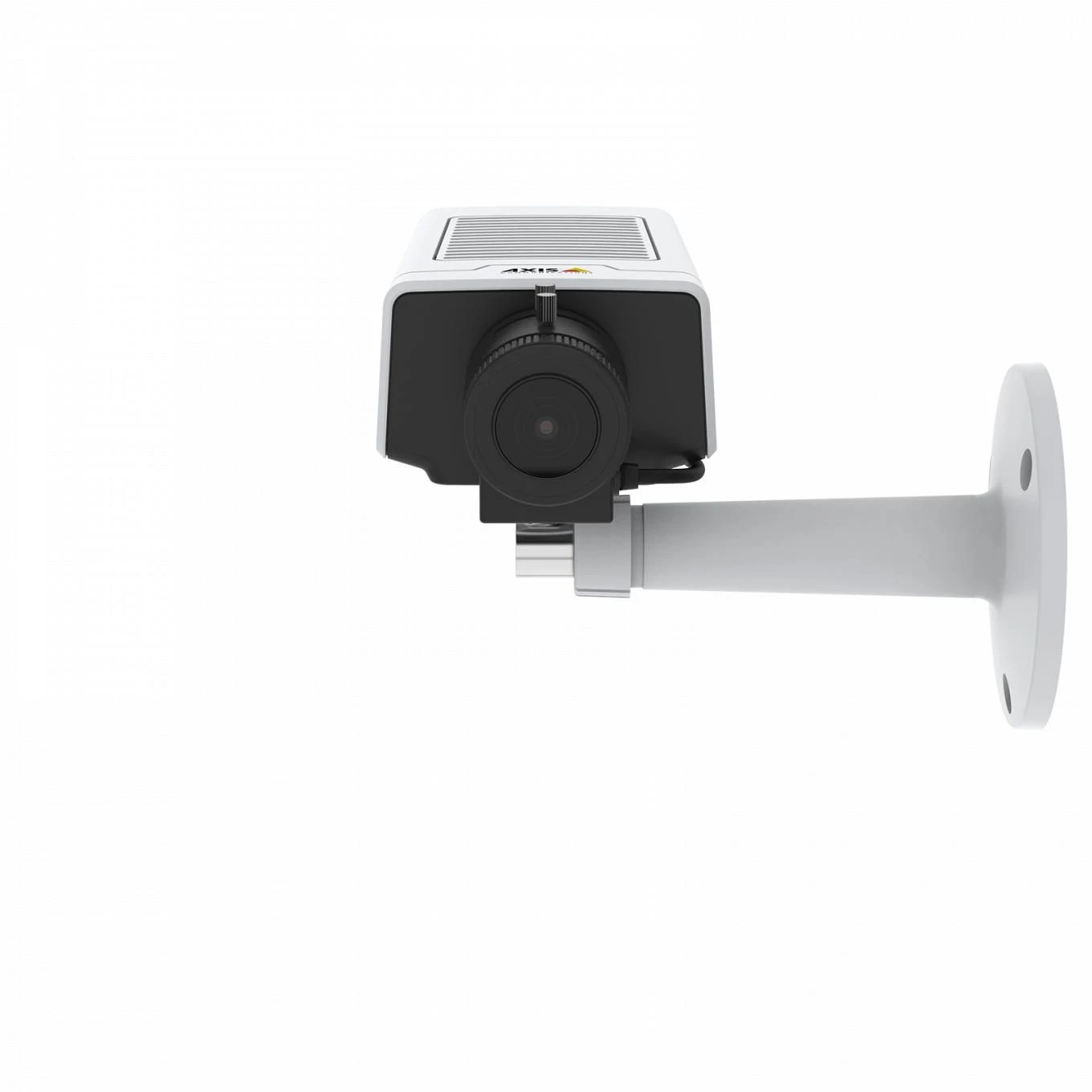

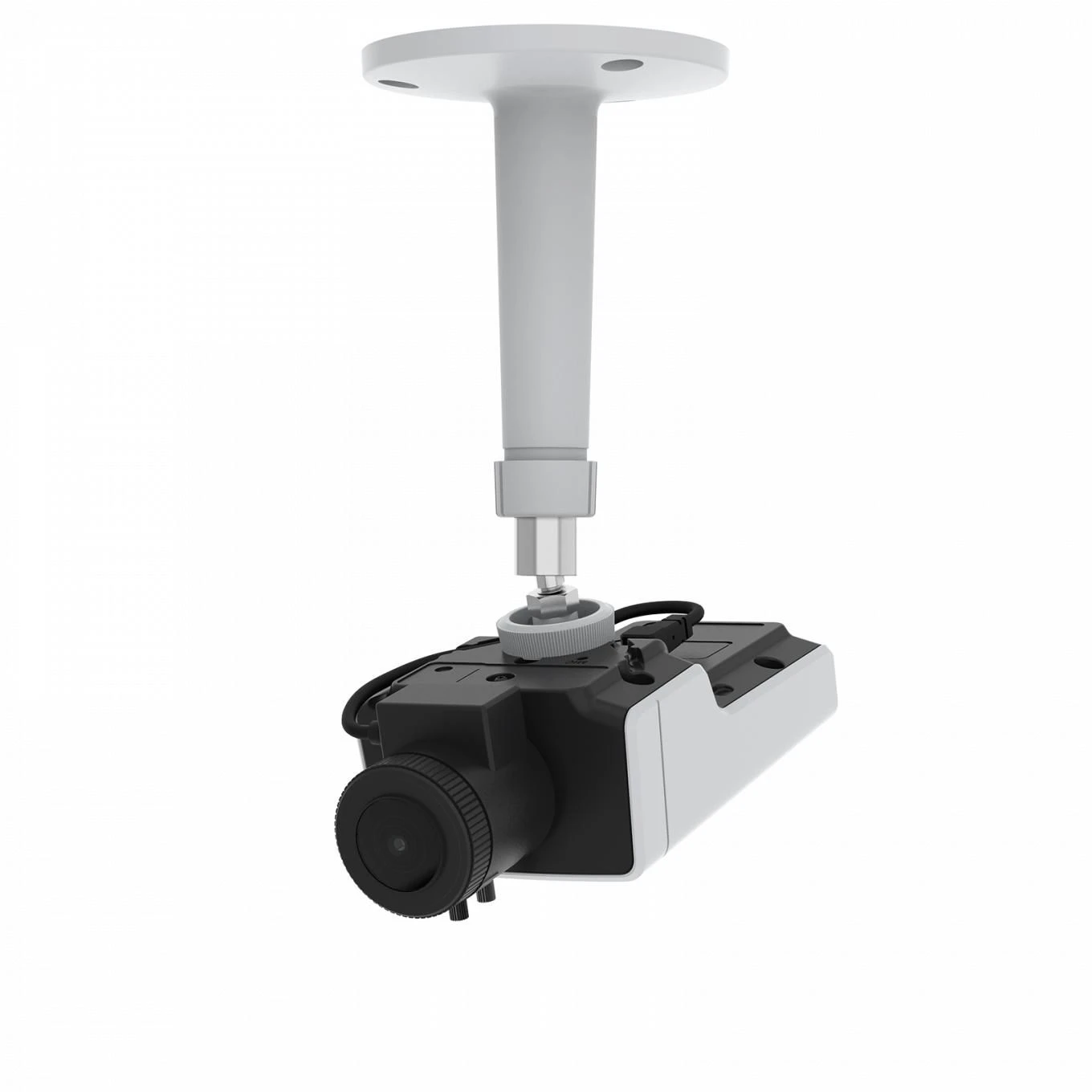

Axis M1135 Mk II I-CS 2MP Box Camera 02580-001

The Axis M1135 Mk II i-CS is a 2-megapixel box camera delivering superb video quality even in low light conditions. Equipped with both Lightfinder and ForensicWDR technology which enable the camera to provide true colour images in low light and clarity in scenes where there are both light and dark areas. Fitted with a motorised i-CS lens, remote focus and zoom is enabled.

The lens features a 3.5~10mm focal length providing a 101° ~ 33° horizontal field of view enabling users to select the exact area of coverage that best suits their requirements. As well as this the M1135 Mk II i-CS includes a built-in microphone and audio recording which allows users to hear and register sound in a fixed area. To insure only authorised firmware is installed the camera is equipped with signed firmware and secure boot. It also features Axis Zipstream which significantly reduces bandwidth and storage requirements with support for H.265 and H.264 compression.

The M1135 Mk II i-CS has been designed with deterrence in mind, this camera lets potential offenders know that they are being watched which can help prevent unwanted activities. Due to the design of the camera, it is easy to see exactly where the lens is pointed and what area is being covered.

Features Explained:

– WDR (Wide Dynamic Range) helps to ensure that camera images are usable and clear. In some scenes, there can be a contrast between the darkest and brightest spots in a scene, this can cause the image to be under or overexposed making it difficult, even impossible to identify objects and people. WDR technology can help rectify this issue, producing clear images regardless of difficult light scenarios.

– Zipstream preserves all the important forensic details users need whilst lowering storage and bandwidth requirements and costs but an average of 50%.

– Lightfinder technology enables cameras to capture full-colour images even in extremely low light conditions. This is achieved thanks to a combination of extremely sensitive sensors and carefully tuned image processing.

Analytics
Axis Object Analytics	Object classes: humans, vehicles Trigger conditions: line crossing, object in area Up to 10 scenarios Metadata visualised with trajectories and colour-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF motion alarm event
Metadata	Object data: classes: humans, faces, vehicles, license plates Confidence, position  Event data: producer reference, scenarios, trigger conditions
Applications	Included: Axis Object Analytics, Axis Video Motion Detection, active tampering Supported:  Support for Axis Camera Application Platform enabling installation of third-party applications

---

Included Accessories:

– T91A11 stand

– Installation guide

– Windows decoder 1-user license

---
