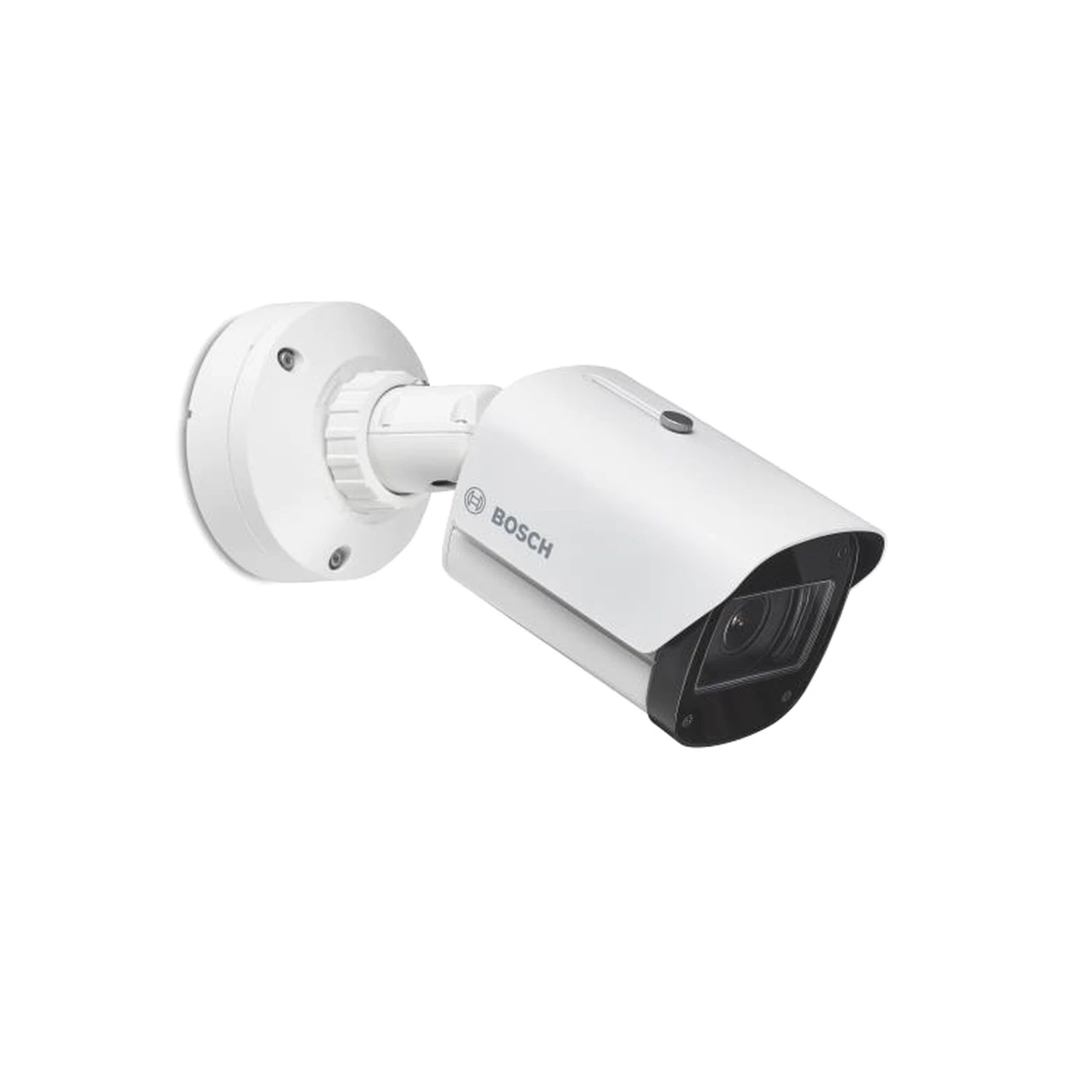

Bosch NBE-7702-ALX DINION 7100i IR 2MP HDR X Bullet Camera

The NBE-7702-ALX is a bullet camera from Bosch’s DINION 7100i IR range that provides 2MP (1920×1080) resolution and multiple scene modes. Its incredibly stable design with corrosion resistance and IP67 Ingress Protection rating makes it perfect for demanding outdoor applications, including traffic monitoring, critical infrastructure and perimeter security.

The NBE-7702-ALX includes Starlight X technology and HDR X, ensuring that the exceptional image quality is maintained in low lighting without HDR motion blur and artefacts. The excellent low light performance of this camera can also be guaranteed with the IR range of up to 80m, so users can be certain that no detail is missed.

The built-in Intelligent Video Analytics Pro (IVA Pro) supplies the camera with IVA Pro Building and IVA Pro Perimeter, bringing incredibly reliable deep-learning based detection and tracking of persons and vehicle to a variety of scenes while also resisting false triggers. We recommend using PoE to power this camera as the installation is easier and more cost effective, as the cameras so not require a local power source.

DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:

DORI	Detect	Observe	Recognise	Identify
4.7~10mm	31m/84m	12m/33m	6m/17m	3m/8m

Parts Included:

– NBE-7702-ALX Camera

– TR20 key

– Mini screwdriver

– Grommet (IP66)

– Grommet (IP67)

– Quick installation guide

– Safety information

– 3x Installer UX labels

---

Dimensions in mm (inch):
