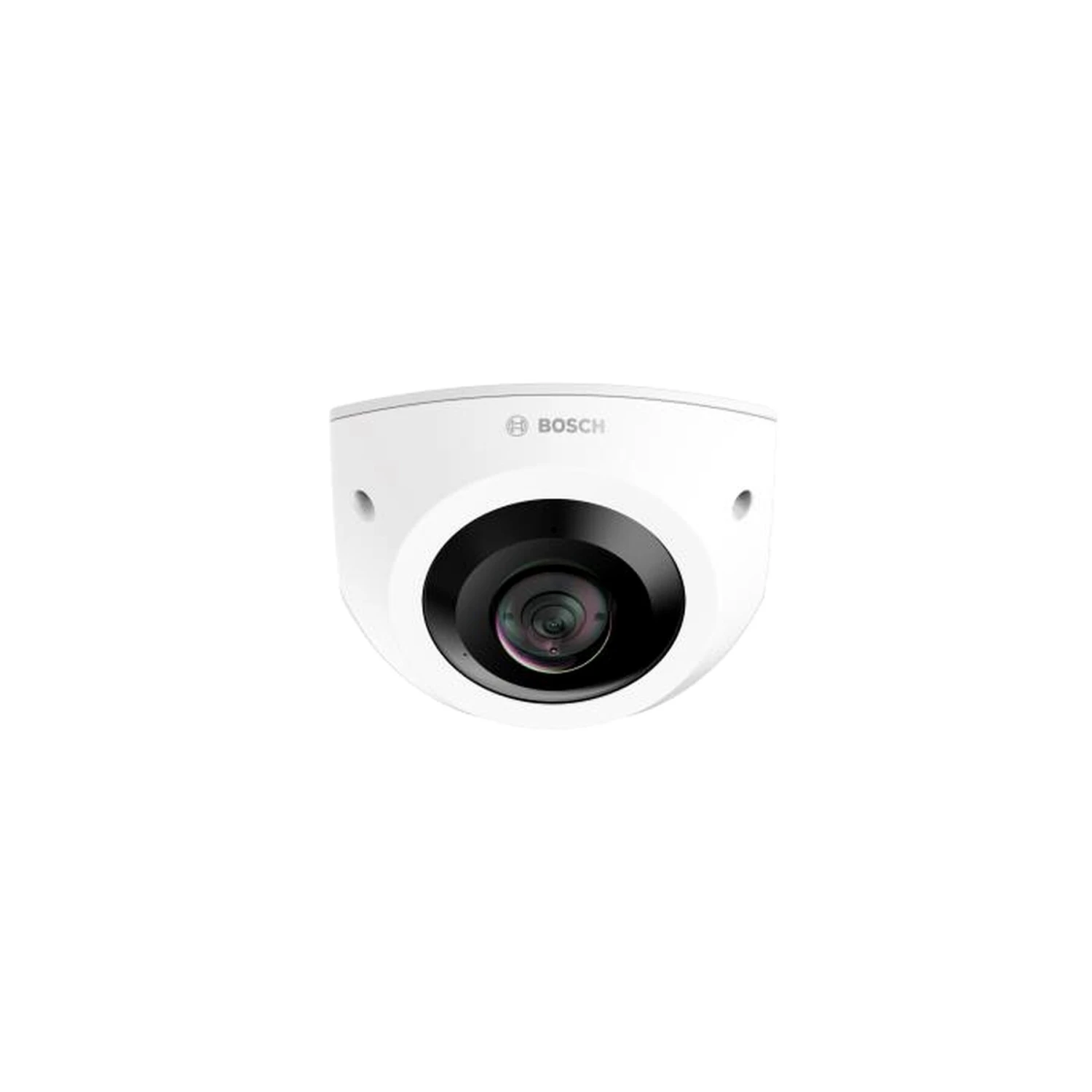

Bosch NCE-7703-FK FLEXIDOME Corner 7100i IR 6MP Fixed Dome Camera

The NCE-7703-FK is a corner fixed dome camera that provides 6MP (2816×2112) resolution and multiple scene modes. With a hard exterior shell and IP66 and IK10 ratings, this camera is is able to withstand the harshest conditions.

The NCE-7703-FK also includes High Dynamic Range (HDR), ensuring that the exceptional image quality is maintained in low lighting without HDR motion blur and artefacts. The excellent low light performance of this camera can also be guaranteed with the IR range of up to 15m, so the high image quality is maintained during all hours of the day.

The built-in Intelligent Video Analytics Pro (IVA Pro) supplies the camera with IVA Pro Building and IVA Pro Perimeter, bringing incredibly reliable deep-learning based detection and tracking of persons and vehicle to a variety of scenes while also resisting false triggers. Furthermore, there is Intelligent Audio Analytics detect and identify target sounds from the ambient sound to trigger the relevant alerts.

We recommend using PoE to power this camera as the installation is easier and more cost effective, as the cameras so not require a local power source.

DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:

DORI	Detect	Observe	Recognise	Identify
2.5mm	25.7m/112.6m	10.2m/44.7m	5.1m/22.5m	2.6m/11.3m

Parts Included:

– NCE-7703-FK Camera

– Corner mount box

– Face plate

– IR cover

– TR20 Allen key

– RJ-45 punch-through aid

– 2x M20 rubber grommets (attached to camera)

– 3x MAC address labels

– Quick installation guide

– Safety information manual

---

Dimensions in mm (inch):
