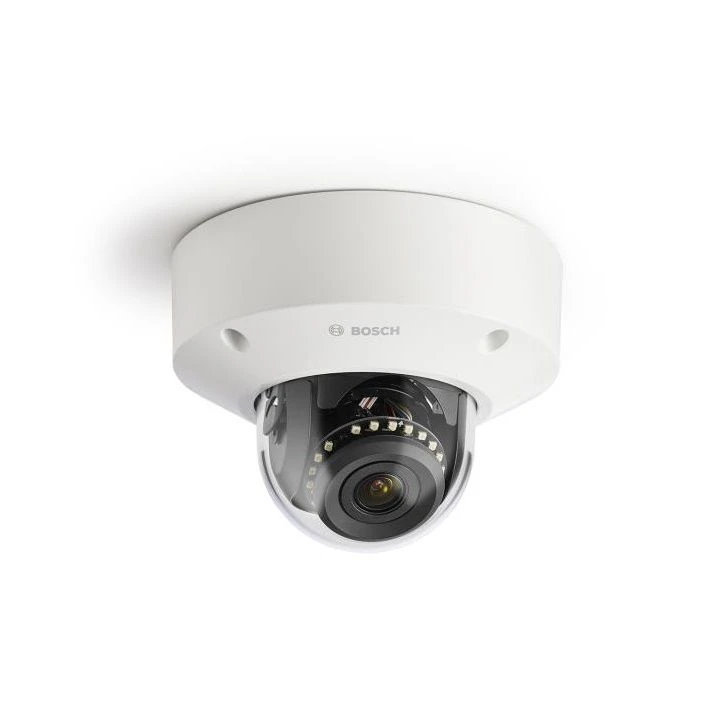

Bosch NDE-7604-AL 8MP Flexidome Inteox 7100i Outdoor Varifocal Dome Camera

The Bosch NDE-7604-AL is an 8-megapixel dome camera that has been designed for outdoor use with an IP66 and IK10-rated housing. This protects the camera against both harsh outdoor weather conditions and vandal attempts.

The built-in 3.6~10mm varifocal lens provides a 97° ~ 53° horizontal field of view and allows users to select the area of coverage that best suits their requirements.

This camera is “Driven by OSSA” which ensures seamless connectivity with Azena Application Store to add third-party software apps easily that meet customer-specific requirements. Featuring a powerful, embedded processor the NDE-7604-AL supports advanced machine learning and neural-network-based Video Analytics.

As well as this the unit is equipped with smart encoding capabilities that reduce bandwidth consumption to extremely low levels. Triple streaming capabilities enable the camera to deliver independent, configurable streams for live viewing, recording, or remote viewing via constrained bandwidths. Designed on the H.264 and H.265/HEVC encoding platform the NDE-7604-AL delivers high-quality and high-resolution video with very low network loads.

Intelligent Video Analytics 8.10 offers high-performance people counting, and top-down views are recommended for minimal inter-person-occlusion. As well as this the unit comes with new artificial intelligent detectors for cars, trucks, buses, bikes, and people which allows for traffic monitoring at intersections, tunnels, and highways including traffic light queue length detection and accurate counting statistics even in dense traffic.

The NDE-7604-AL can be powered by 24V AC or PoE+ (power over ethernet), we normally recommend PoE as the installation is simplified by only one cable connection being required. Both power and data can be transported over one cable, reducing installation time and costs.

DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:

DORI	Detect	Observe	Recognise	Identify
3.6~10mm	68~181m	27~72m	14~36m	7~18m

Parts Included:

– Camera

– Quick installation guide

– Safety instructions

---
