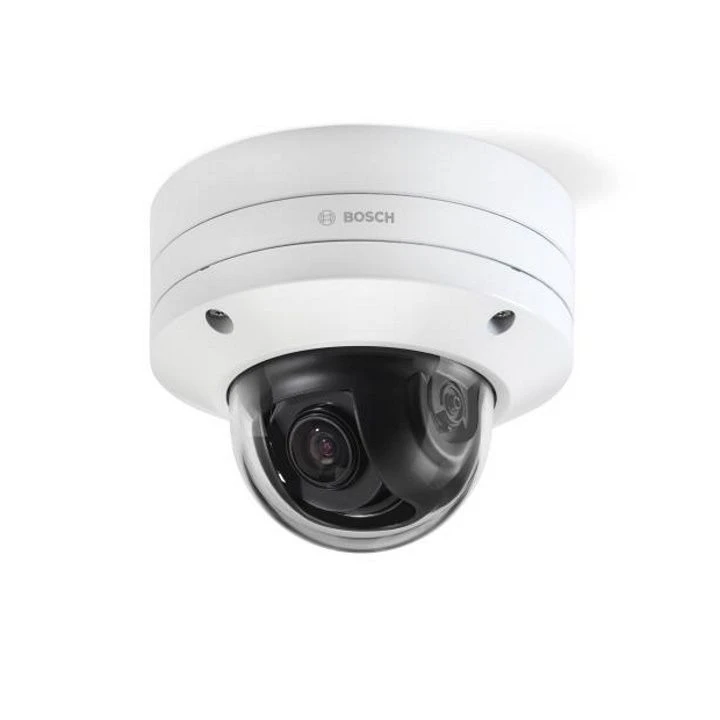

Bosch NDE-8503-R 6MP Flexidome IP Starlight 8000i Outdoor PTRZ Dome Camera

The Bosch NDE-8503-R is a 6-megapixel dome camera with PTRZ (pan, tilt, roll and zoom) which enables users to set the camera to the required field of view. As well as this the unit features a 3.9~10mm lens providing a 117° ~ 44° viewing angle. Users can select the area of coverage which best suits their requirements between these parameters.

Featuring a 1/1.8″ sensor, starlight performance and high dynamic range the NDE-8503-R provides crisp and highly detailed images even in extremely low-light scenarios. Along with high sensor resolution the camera has a frame rate of 30 frames per second makes the unit ideal for use in applications where capturing fast-moving objects in high detail is essential.

Bandwidth consumption is reduced to extremely low levels thanks to the camera’s smart encoding capabilities along with intelligent dynamic noise reduction technology and analytics. Only relevant information in the scene such as motion, or objects found with the analytics needs to be encoded.  Designed on the H.264 and H.265/HEVC encoding platform the NDE-8503-R delivers high-quality and high-resolution video with very low network loads.

The NDE-8503-R can be powered by 12-26V DC, 24V AC or PoE (power over ethernet), we normally recommend PoE as the installation is simplified by only one cable connection being required. Both power and data can be transported over one cable, reducing installation time and costs.

DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:

DORI	Detect	Observe	Recognise	Identify
12~40mm	40~162m	16~64m	8~32m	4~16m

Parts Included:

– Camera

– T-20 security Torx bit

– Quick installation guide

– Safety information

– Rubber grommet for Ethernet cable

– Network patch cable 50cm

– 10-pin I/O connector

– 2-pin power connector

– Cable conduit for side entry

– Washer for cable conduit

– Adapter plate for cable conduit (Ø 3/4″ / M25)

– Adapter plate for cable conduit (Ø 1/2″ / M20)

– Identification label

---
