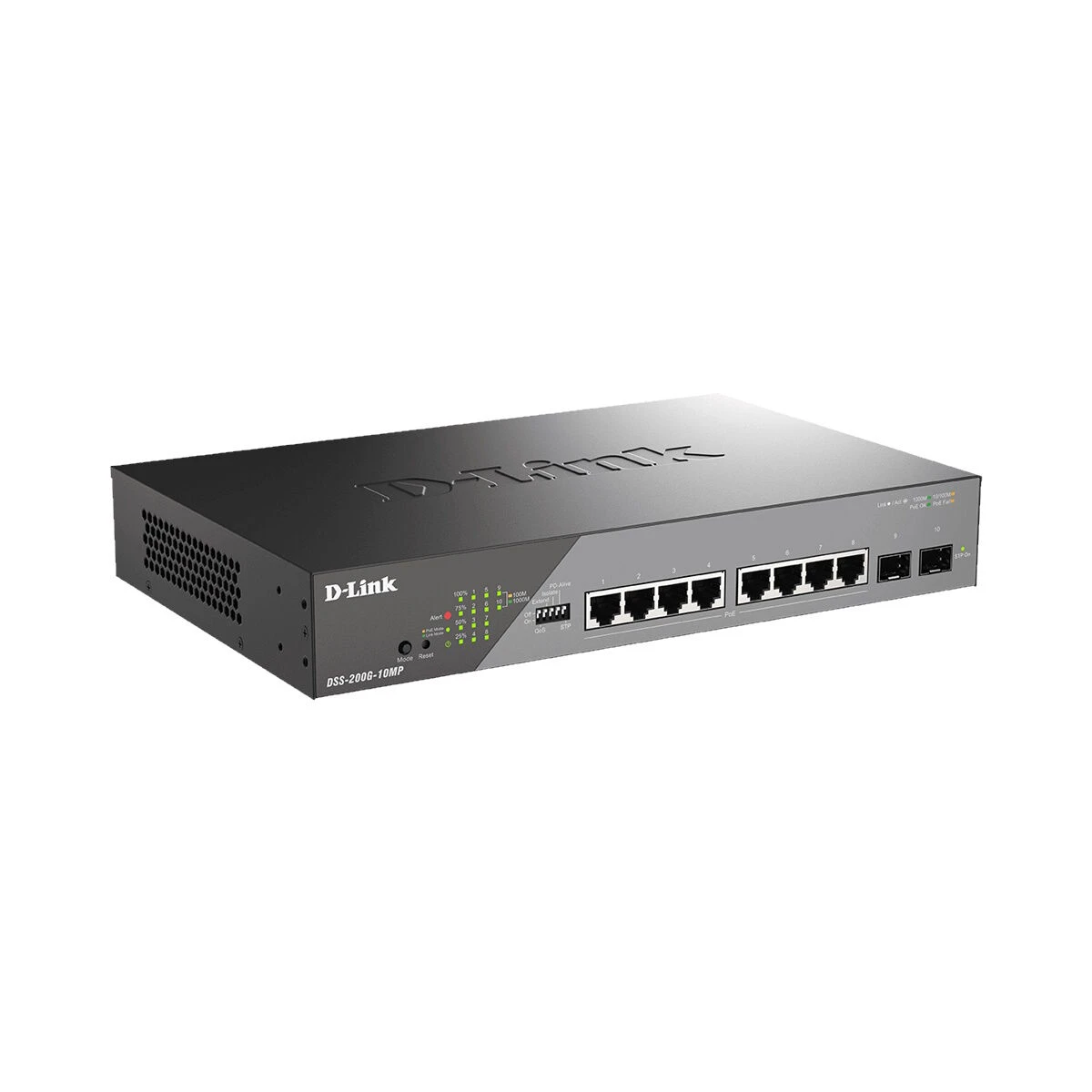

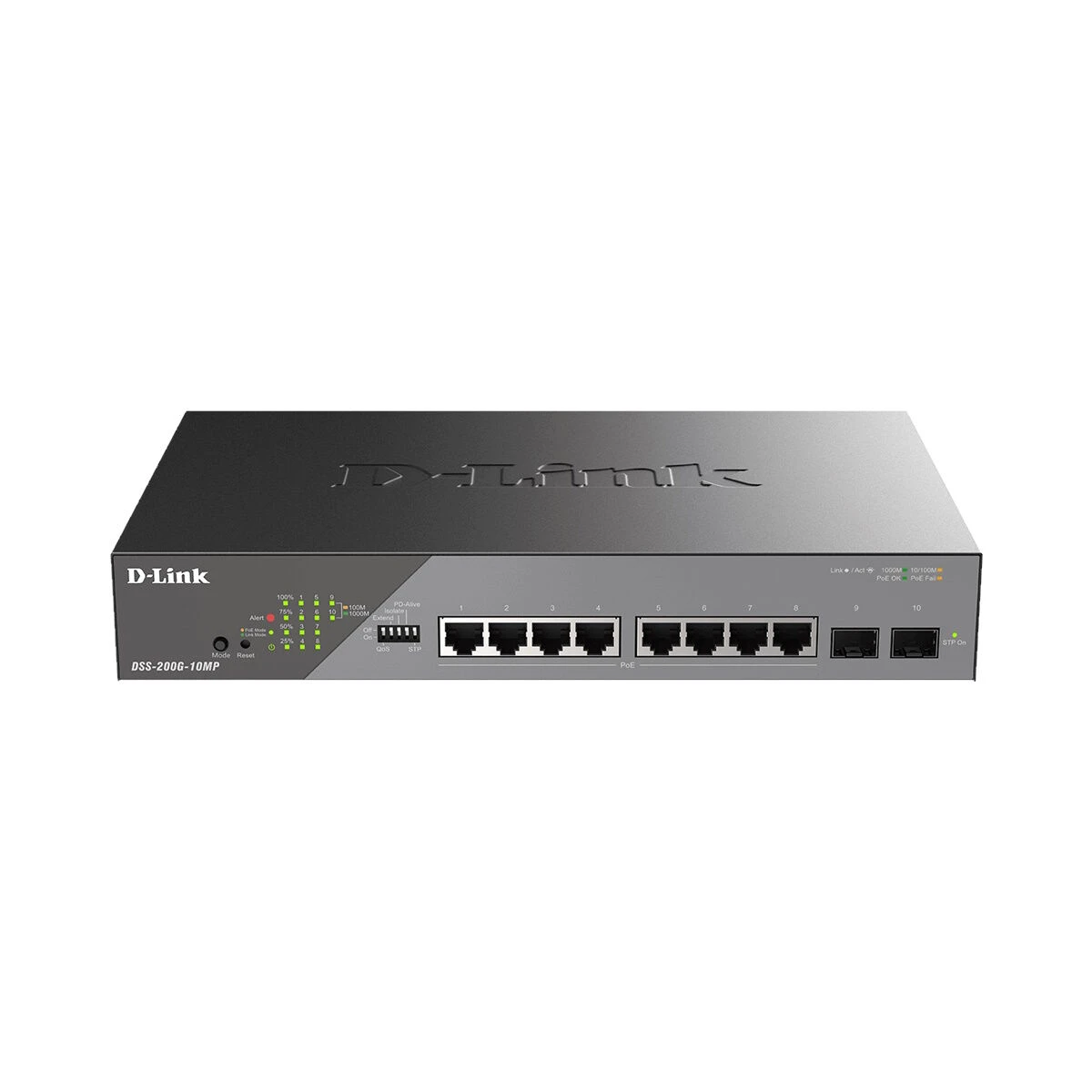

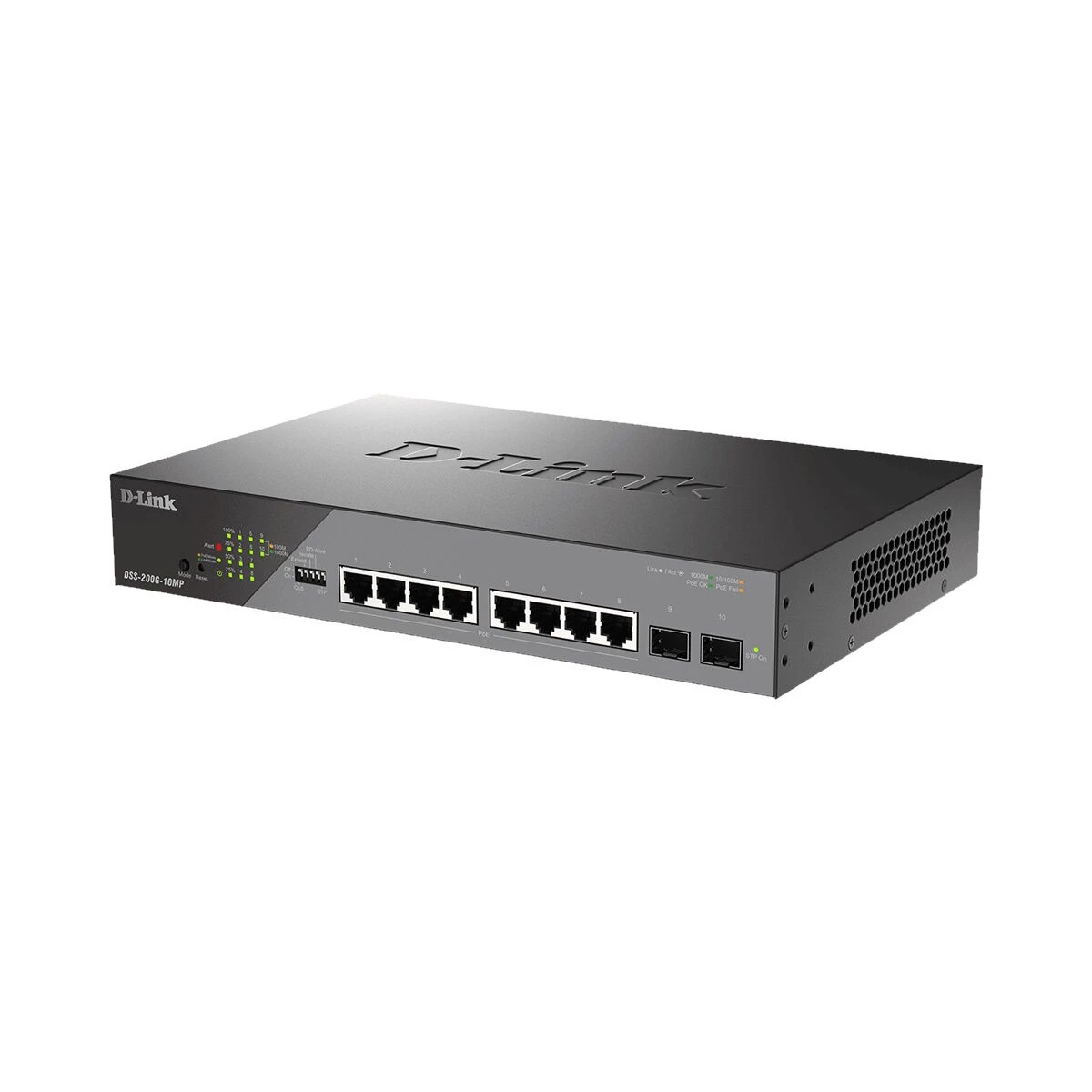

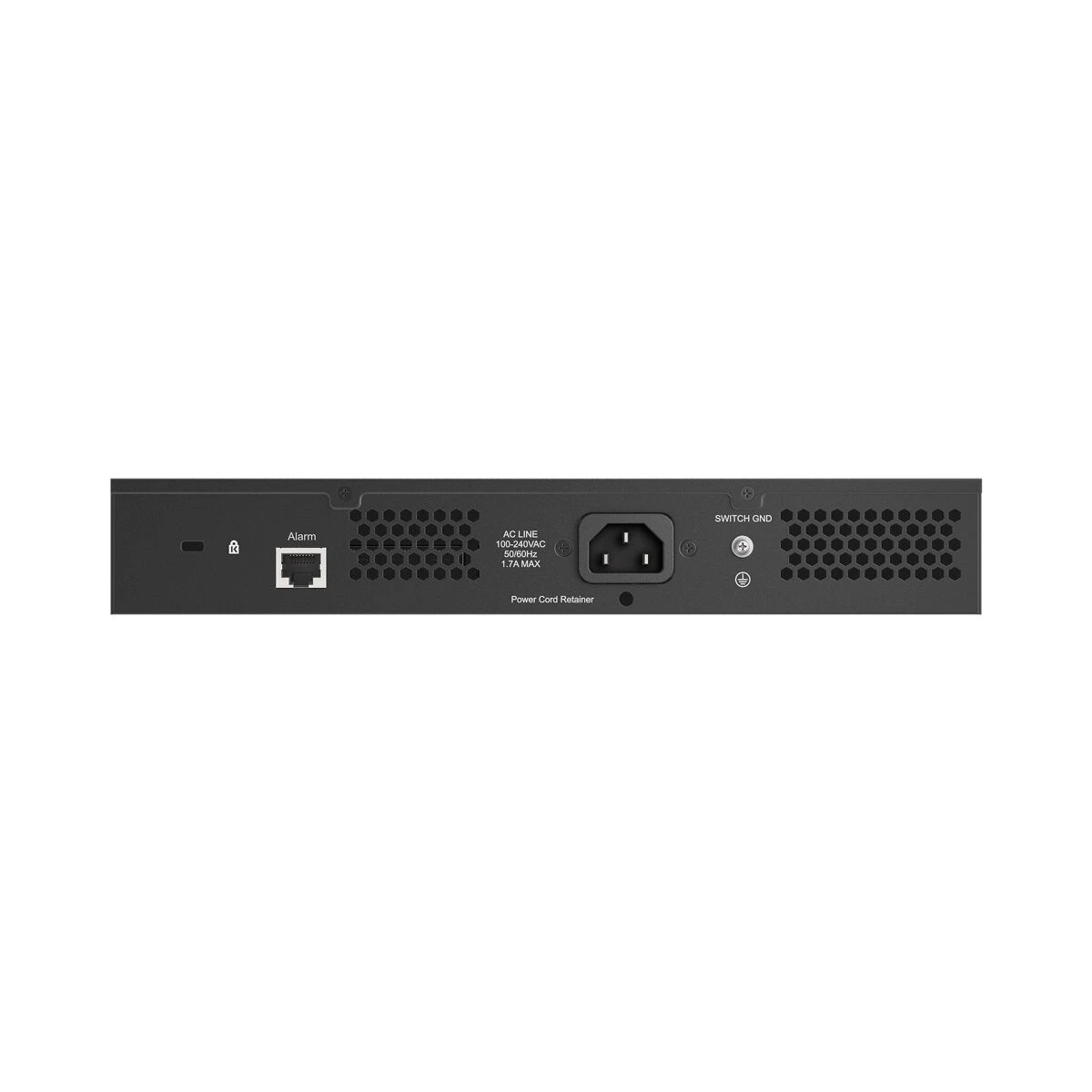

D Link D-Link DSS-200G-10MP 10-Port Gigabit PoE Switch

The D-Link DSS-200G-10MP contains 8 x 10/100/1000 Mbps PoE and 2 x SFP 1000 Mbps ports. It has a high PoE budget, allowing for 30W for each PoE port, and is 802.3at/af compliant. It also allows for a 6 kV surge protection of all PoE ports and is easy to deploy with its automatic configuration.

There are 4 working modes available for PoE ports; QoS (Port Priority), Extend, Isolate, and PD Alive. STP Mode is also available for the SFP ports.

---



Features:	DSS-200G-10MP
Interfaces/Ports
Interface	8 x 10/100/1000 Mbps PoE ports 2 x SFP 1000 Mbps ports Supports Manual/Auto MDI/MDIX configuration and Auto-Negotiation
PoE Ports (RJ45)	Standard – 802.3at/af compliant PoE ports – 8 Power Supply – 130W, 30W max per PoE port
DIP Switch Working Modes	QoS (Port Priority) – Ports 1-8 Extend (Up to 250M @10Mbps) – Ports 1-4 Isolate – Ports 1-8 PD Alive – Ports 1-8 STP – Ports 7-8
Hardware
Fan Quantity	Fanless
Max. Power Consumption	160.2W (PoE on) 9.63W (PoE off)
Switching Capacity	20 Gbps
Dimensions	280 x 180 x 44 mm
Operating Conditions	Temperature – -5°C ~ 50°C Humidity – 0% ~ 95% (non-condensing)
