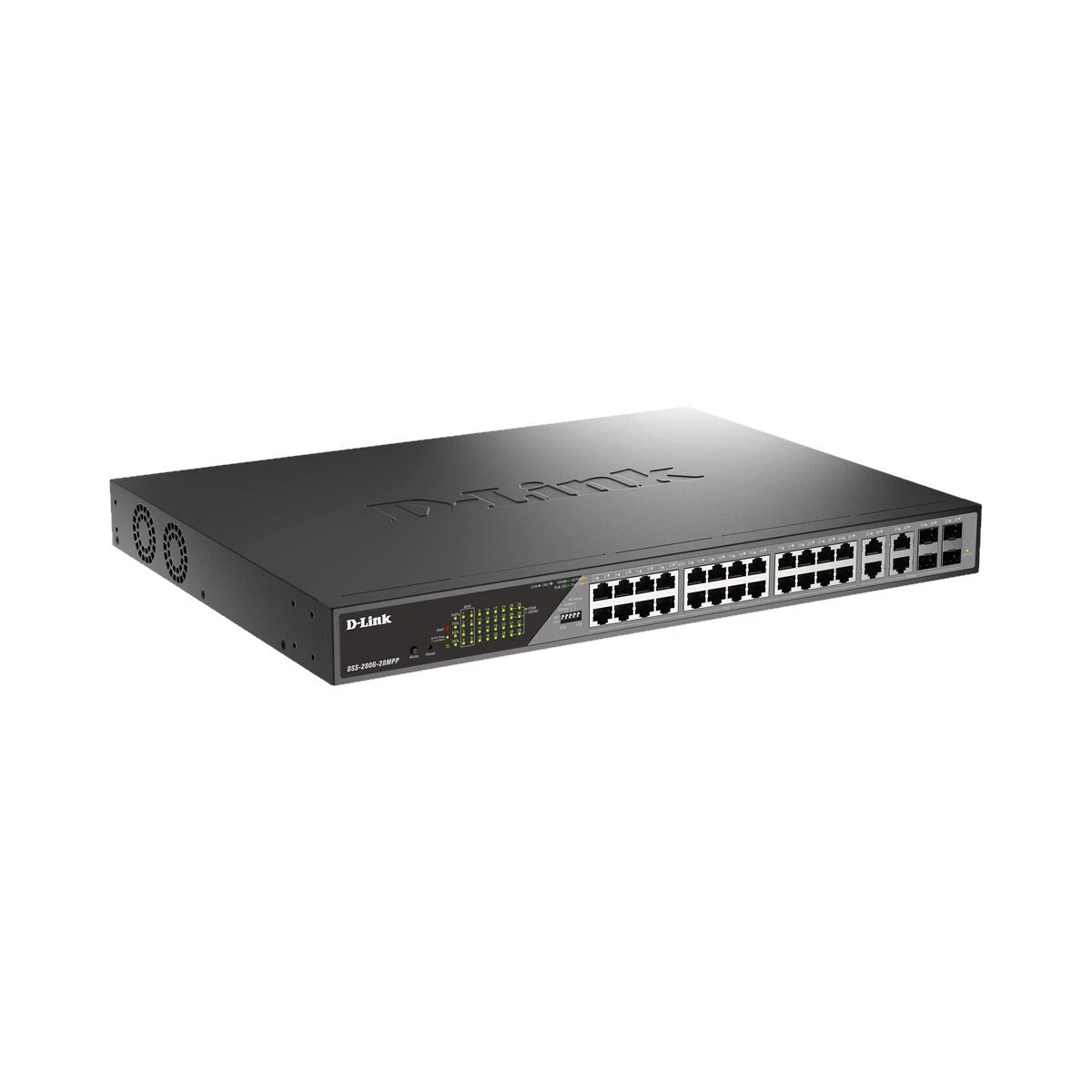

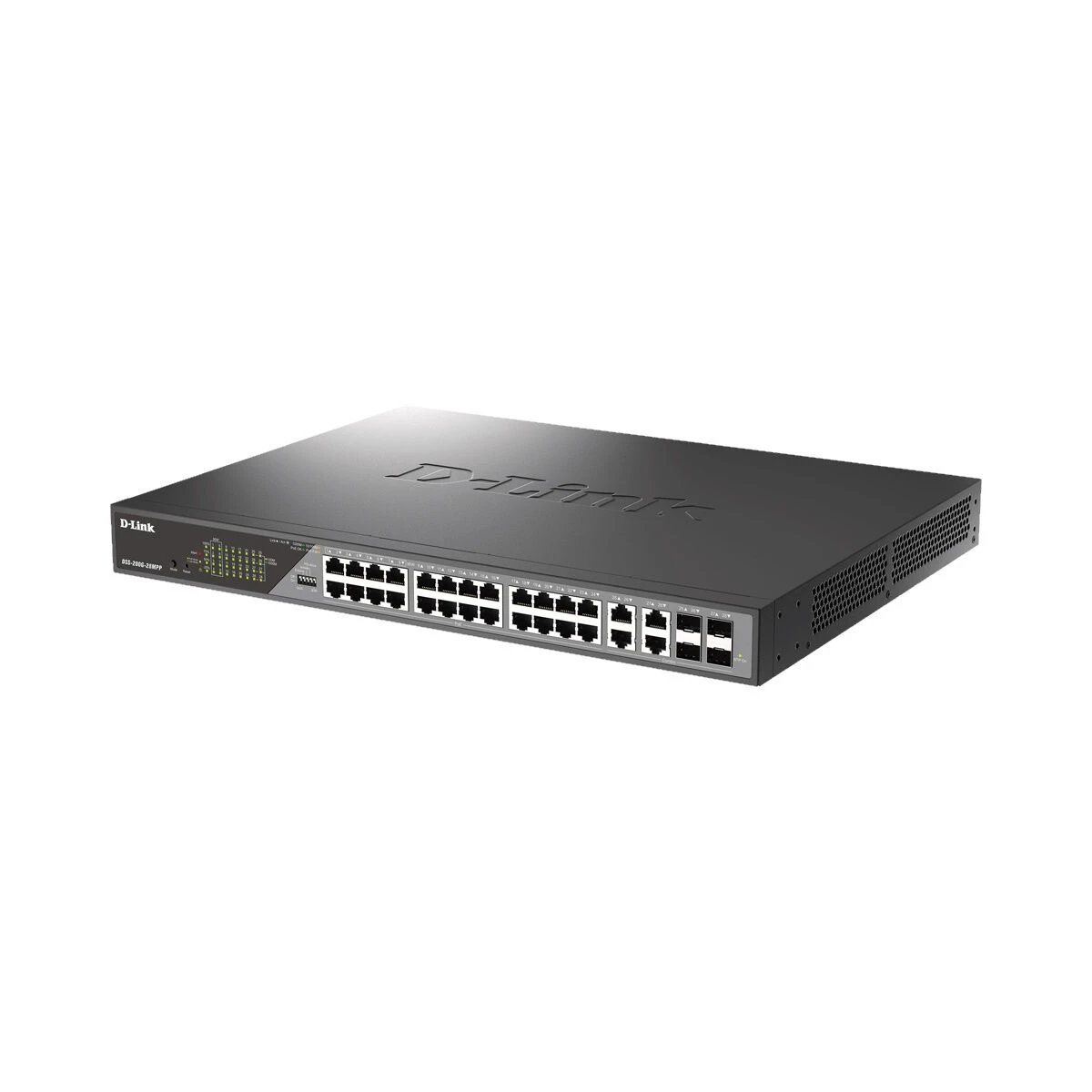

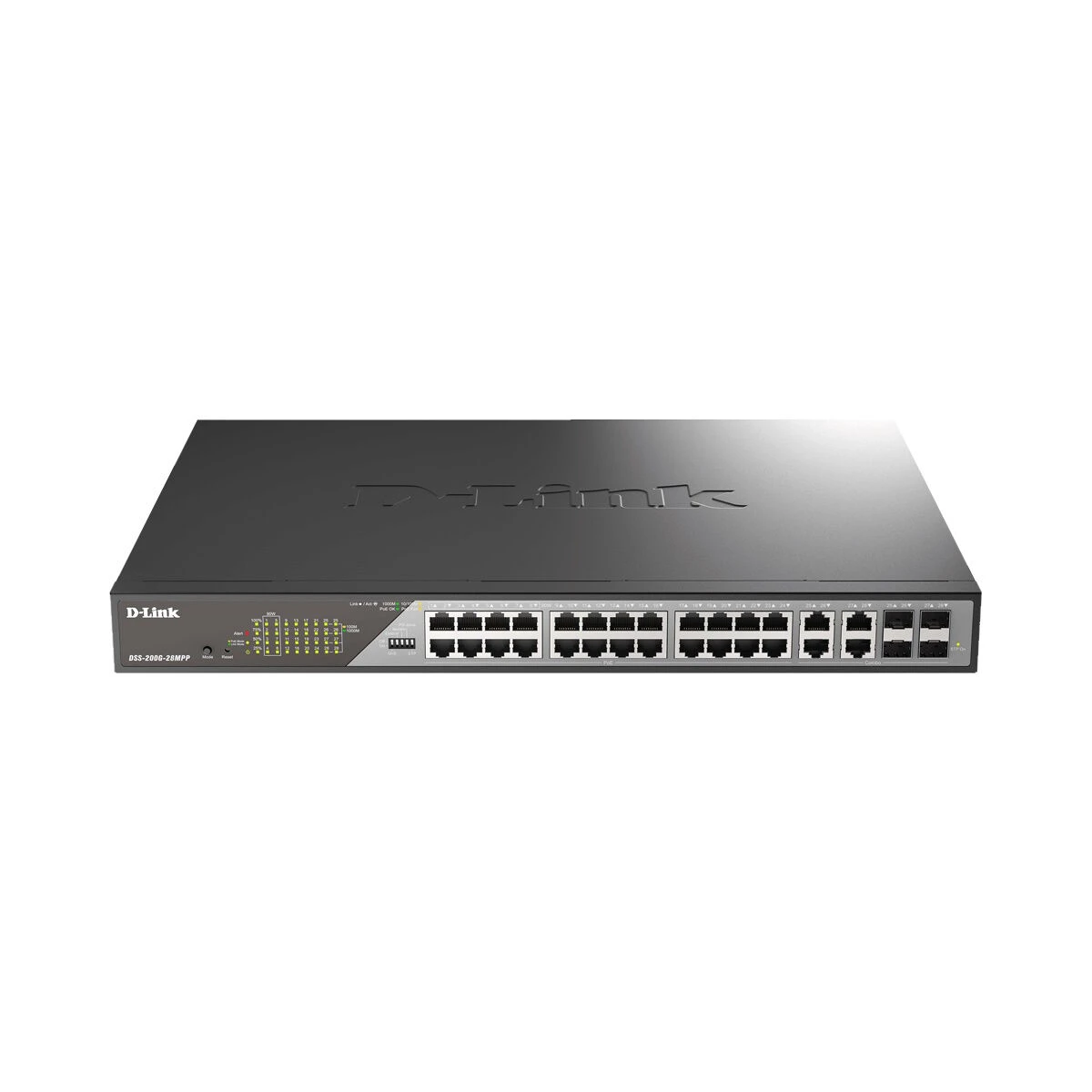

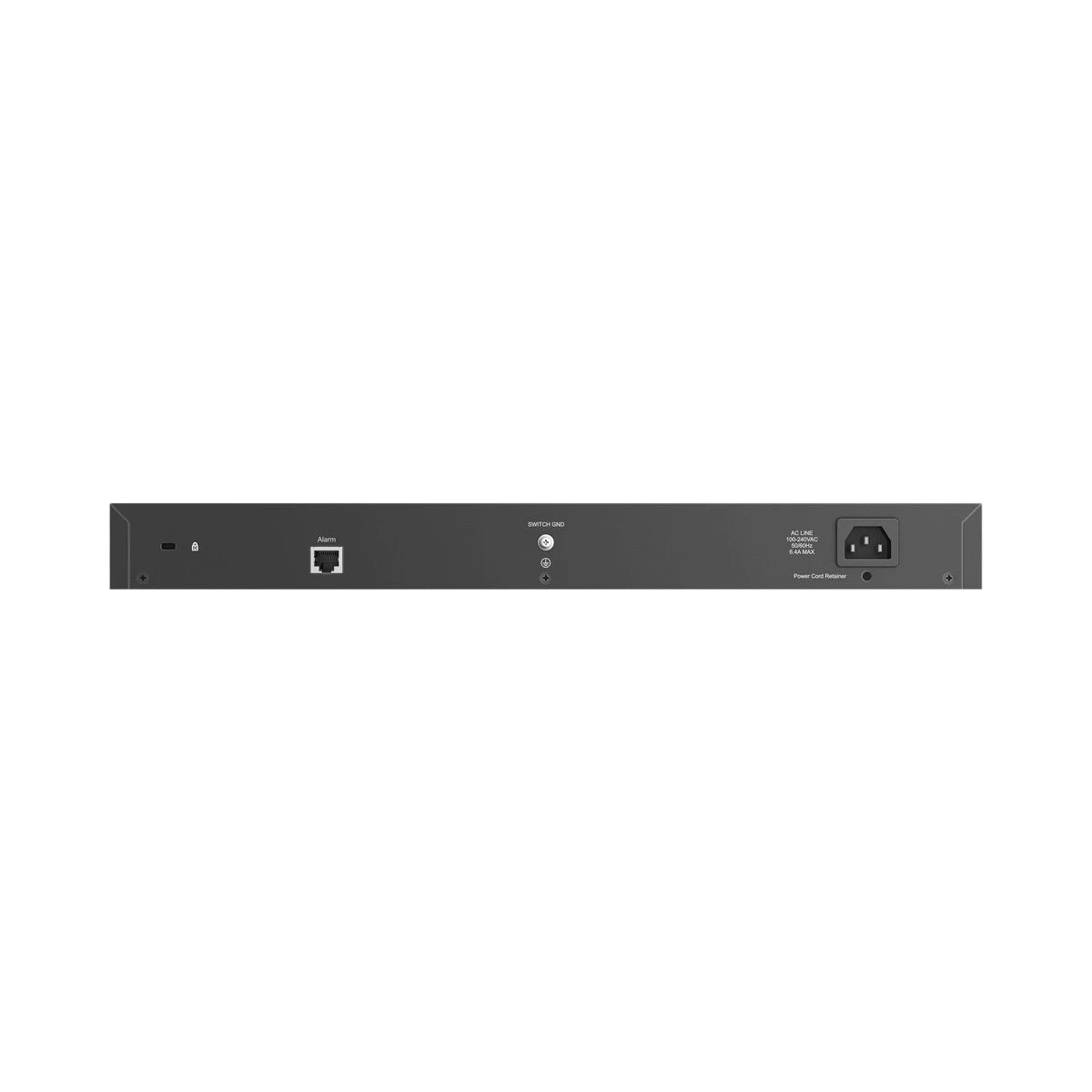

D Link D-Link DSS-200G-28MPP 28-Port Gigabit PoE Switch

The D-Link DSS-200G-28MPP contains 24 x 10/100/1000 Mbps PoE and 4 x Combo 1000 Mbps ports. It has a high PoE budget, allowing 518W as a total power budget, and is 802.3at/af compliant. It also allows for a 6 kV surge protection of all PoE ports and is easy to deploy with its automatic configuration.

There are 4 working modes available for PoE ports; QoS (Port Priority), Extend, Isolate, and PD Alive. STP Mode is also available for the SFP ports.

---



Features:	DSS-200G-28MPP
Interfaces/Ports
Interface	24 x 10/100/1000 Mbps PoE ports 4 x Combo 1000 Mbps ports Supports Manual/Auto MDI/MDIX configuration and Auto-Negotiation
PoE Ports (RJ45)	Standard – 802.3at/af compliant PoE ports – 24 Power Supply – 518W; 90W max. per PoE port for ports 1-8, 30W max. per PoE port for ports 9-24
DIP Switch Working Modes	QoS (Port Priority) – Ports 1-24 Extend (Up to 250M @10Mbps) – Ports 1-8 Isolate – Ports 1-24 PD Alive – Ports 1-24 STP – Ports 25-28
Hardware
Fan Quantity	2 Fans
Max. Power Consumption	579.3W (PoE on) 23.52W (PoE off)
Switching Capacity	56 Gbps
Dimensions	440 x 330 x 44 mm
Operating Conditions	Temperature – -5°C ~ 50°C Humidity – 0% ~ 95% (non-condensing)
