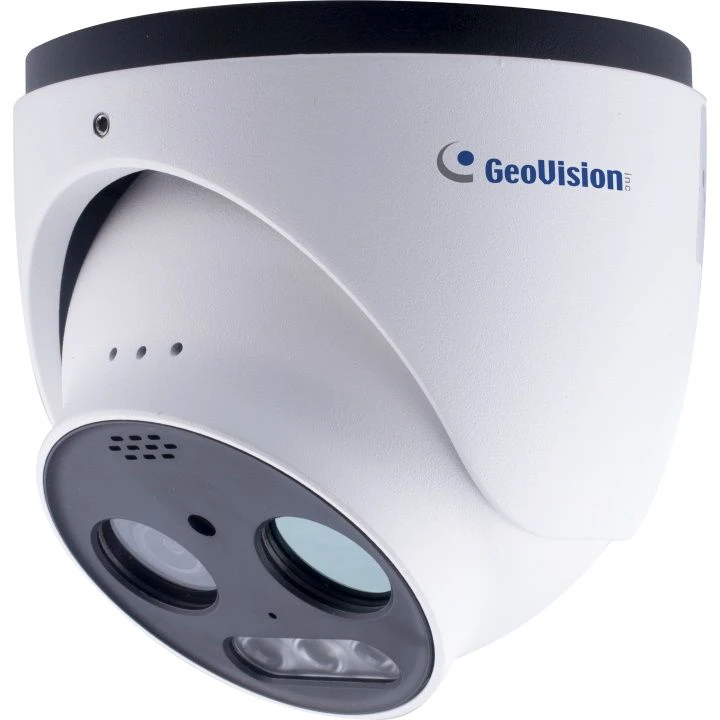

Geovision GV-TMEB5800 5MP AI Thermal & Optical IR Eyeball Dome Camera

The Geovision GV-TMEB5800 is a 5-megapixel AI-enabled thermal eyeball camera that combines dual thermal and optical images for perimeter protection and fire prevention.

The camera features one thermal lens and one optical lens, the thermal lens detects fires and measures predefined temperatures, triggering lighting and alarms.

With a focal length of 4mm, the optical lens provides users with an 81° horizontal field of view. As well as this the camera features 2 IR LEDs with a maximum IR distance of 30m. This makes the GV-TMEB5800 ideal for use in both day and nighttime scenarios. As well as this, the unit features an IP66-rated housing which makes the camera suitable for use in both indoor and outdoor applications.

Thermal Specs:

Image Sensor	Vanadium oxide uncooled focal plane detector
Picture Elements	256 (H) x 192 (V) (resolution of output image 1280 x 720
Pixel Size	12 um
Thermal Sensitivity	≤50 mK (@25°C, F#=1.0)
Spectral Range	8~14 um
Gain Control	Auto, Manual
Focal Length	3.2mm
Maximum Aperture	F/1.1
Horizontal Field of View	56°
Minimum Focusing Distance	0.5m
Colour Palettes	Black hot, White hot, Iron Oxide Red, Rainbow, Lava

(Optical lens specs can be found in the section below)

Deep learning algorithms enable the GV-TMEB5800 to identify and classify objects. The optical lens is able to distinguish humans and vehicles from other moving objects for more accurate detection. As well as this both the optical and thermal features AI perimeter analytics:

Thermal	Optical
Fire detection	Line Crossing
Temperature Exception Alarm	Region Entrance
Line Crossing	Region Exiting
Region Intrusion: with Human & Vehicle classification	Region Intrusion: with Human & Vehicle classification
	Target Counting
	Face Detection

---

---

Packing List:

– Waterproof rubber

– Screw kit

– Hex key

– Drill template paster

– Download guide

---
