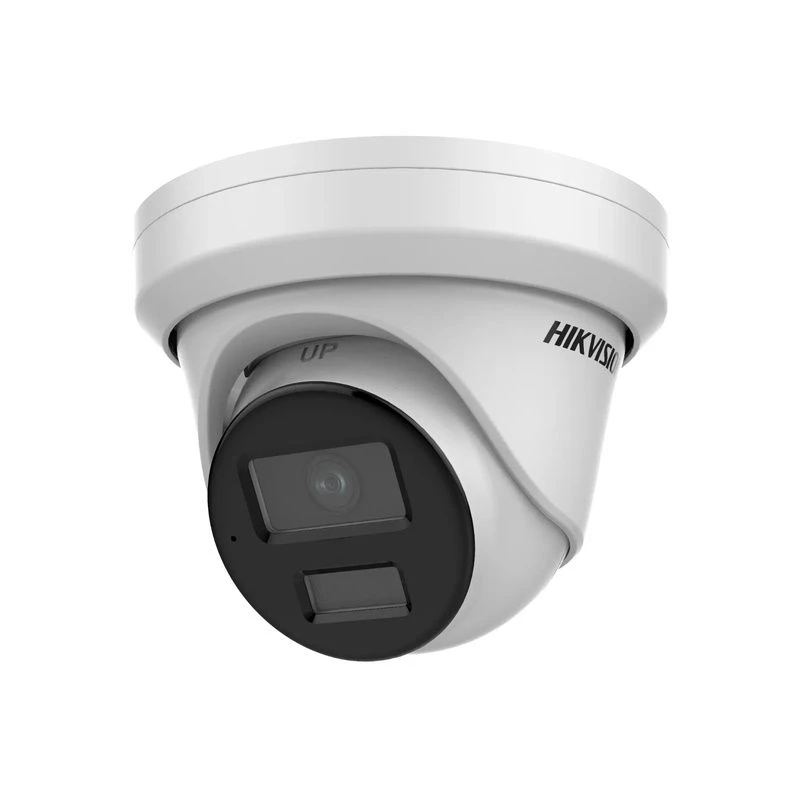

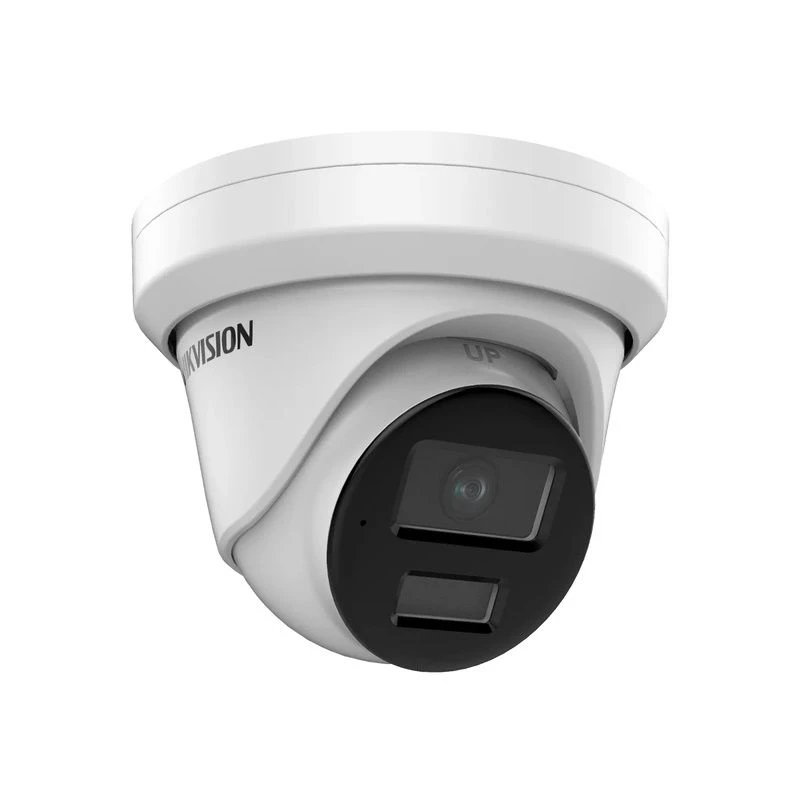

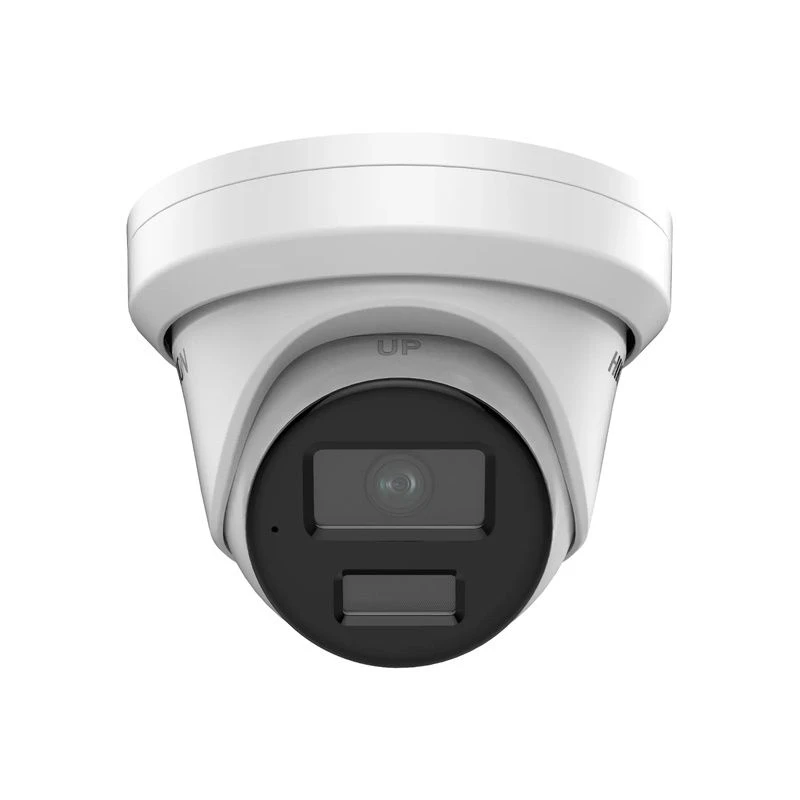

Hikvision DS-2CD3346G2-IS(U) 4MP AcuSense Fixed Turret Camera

The DS-2CD3346G2-IS(U) is a 4MP Fixed Turret camera, enhanced with Hikvision DarkFighter and AcuSense technologies.
It offers impressive low light performance, efficient video compression, effective image enhancement capabilities, and a selection of video analytics, including basic events, smart events, and deep learning functions.

The DS-2CD3346G2-IS(U) is avaliable with 3 different lens options – 2.8mm, 4mm, and, 6mm
(please see the ‘Lens Specs’ table below for more information)

---

Hikvision Technologies

Acusense – AcuSense is a technology designed for Hikvision cameras, that uses deep-learning AI algorithms to improve security capabilities.
This allows for AcuSense equipped cameras to achieve impressive Human and Vehicle classification, meaning that it will recognise whether an alarm was triggered by a person, vehicle, or other object. This reduces the amount of false alarms, and allows your surveillance system to prioritise genuine security risks.

Darkfighter – DarkFighter is a technology that helps to improve a camera’s low light performance, allowing image quality to remain clear regardless of the amount of light in a scene. This keeps video surveillance working effectively at all times.

---

Lens Specs

	2.8mm	4mm	6mm
Field of View	101° (horizontal) 54° (vertical) 122° (diagonal)	84° (horizontal) 45° (vertical) 99° (diagonal)	53° (horizontal) 28° (vertical) 64° (diagonal)
DORI	Detect: 63m Observe: 25m Recognise: 12m Identify: 6m	Detect: 77m Observe: 30m Recognise: 15m Identify: 7m	Detect: 126m Observe: 50m Recognise: 25m Identify: 12m

---

Image Enhancement Capabilities

IR Illumination – Suppliment Light, with an IR wavelength of 850nm, and a range of up to 40m.

120dB Wide Dynamic Range (WDR) – Improves image visibility in challenging lighting conditions.

Highlight Compensation (HLC) and Backlight Compensation (BLC) – Compensates for areas of darkness and bright light in the camera’s field of view, keeping images clear and balanced.

3D Noise Reduction (3DNR) – Reduces image quality interference from incoming ‘noise’ keeping footage as clear as possible.

---

Analytics, Alarm Linkage, and Deep Learning Functions

Basic Events – Motion detection, Video Tampering alarm, Exception detection

Smart Events – Line-crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Scene change detection, Audio exception detection, Defocus detection

Alarm and Footage upload Linkage – Upload to FTP/NAS/memory card, Notify surveillance center, Send email, trigger capture, trigger recording, trigger Alarm output, Audiable warning

Deep Learning Functions – Face Capture, People Counting

---

Dimensions:
