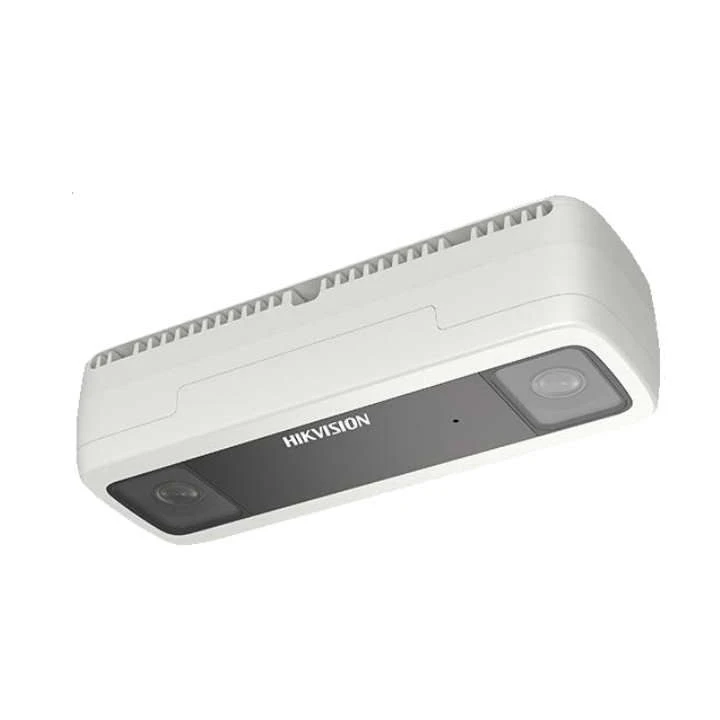

Hikvision DS-2CD6825G0/C-IVS 2MP People Counting Network Camera

The Hikvision DS-2CD6825G0/C-IVS is a 2 megapixel, network based, people counting camera. Used to monitor levels of people entering and exiting buildings, whether it be to record footfall within retail set-ups, or for crowd control.The device supports real-time uploading and statistic cycle uploading, it can also send users updates via email on daily, weekly, monthly or annual basis.

The 2mm fixed lens provides a horizontal FOV of 104° making it easy to cover doorways at ceiling height, whilst the built-in supplement IR lighting covers a range of up to 6 meters, allowing a soft illumination without over exposing the objects in close proximity.

With a rating of IP67, the DS-2CD6825G0/C-IVS is weather resistant, therefore becoming a suitable option for various indoor and outdoor applications. The built-in microphone and built-in slot for Micro SD/SDHC/SDXC memory card for on-board storage add further levels of security to the total system.

We recommend powering this camera via PoE, however it can also be powered by a 12v DC PSU (not included).

Installation Recommendations

The following information shows typical values maximum detection span at different mounting heights for a 2mm focal length. If you require further information please do not hesitate to contact us.

Mounting Height: 2.1m – Max Detection Span: 1.02m

Mounting Height: 2.6m – Max Detection Span: 2.30m

Mounting Height: 3.1m – Max Detection Span: 3.58m

Mounting Height: 3.6m – Max Detection Span: 4.86m

Mounting Height: 4.1m – Max Detection Span: 6.14m

Mounting Height: 4.6m – Max Detection Span: 5.50m

Mounting Height: 5.6m – Max Detection Span: 7.40m

Mounting Height: 6m – Max Detection Span: 8.16m

---
