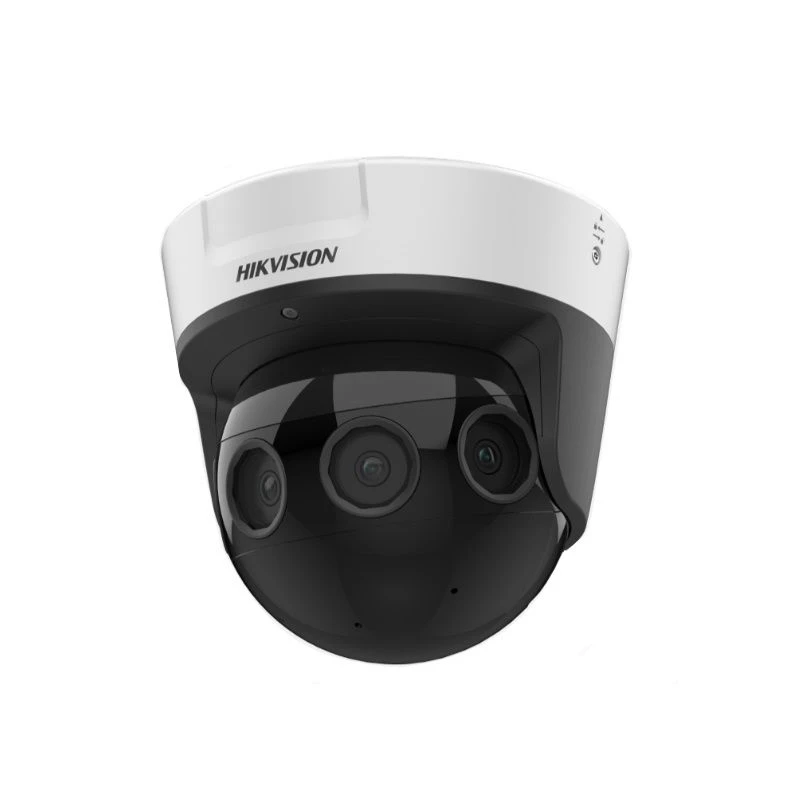

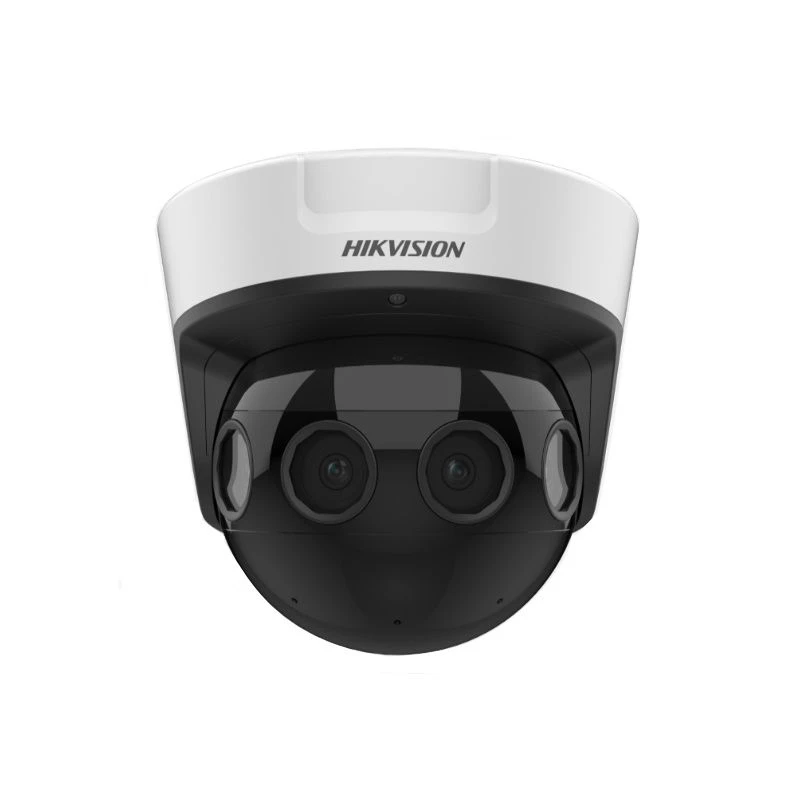

Hikvision DS-2CD6924G0-IHS(C) 8MP 180° Stitched PanoVu Camera

The DS-2CD6924G0-IHS(C) is a 8MP PanoVu camera, with a 180° stitched panoramic design, using 4 sensors, each with 8MP resolution and 2.8mm fixed focal lenses.

Hikvision PanoVu range cameras offer a streamlined surveillance experiance, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)
The DS-2CD6924G0-IHS(C) is a part of the Panoramic Stitched series, and offering a 4-sensor design, splicing the sensor FOVs together to create a full 180° wide view, to cover the entire scene.

The most suitable application environments for Dual-directional PanoVu cameras include; Hallways, Walkways, Retail, and, Cashier Stations

---

Stitched PanoVu cameras also offer 3 different viewing modes, Panorama+ePTZ, Panorama, and, Original mode – each offer different resolution capabilities and features.

	Panorama+ePTZ	Panorama mode	Original mode
Max. Resolution	Pano channel – 1920×1080 ePTZ channel – 1920×1080	3840×1260	1920×1080
Frame Rate	Both channels – up to 30fps	up to 30fps + supported as sub-stream	up to 30fps
Supported Features		Target cropping People density (deep learning function) Smart Events	Rotate mode 3D DNR (3D noise reduction) Defog EIS (electronic image stabalisation)

---

Smart Features – To add to the capabilites of video surveillance, the DS-2CD6924G0-IHS(C) is equipped with the use of a selection of security features – Basic events, Smart events, and Linkage options

Basic Events – Motion detection, and, Excepton detection (network disconnected, IP address conflict, Illegal login, HDD full, HDD error) – supported in all modes

Smart Events – Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Scene change detection, Unattended baggage detection, Audio exception detection, and, Object removal detection – only supported in Panorama mode

Deep Learning Function – People density – only supported in Panorama mode

Linkage – Upload to FTP/NAS/memory card, Notify surveillance centre, Send Email, Trigger alarm, Trigger recording, and, Trigger capture

---

DORI = Detect, Observe, Recognise, Identify – The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
2.8mm	32 m	12.5 m	6.5 m	3 m

---

Dimensions
