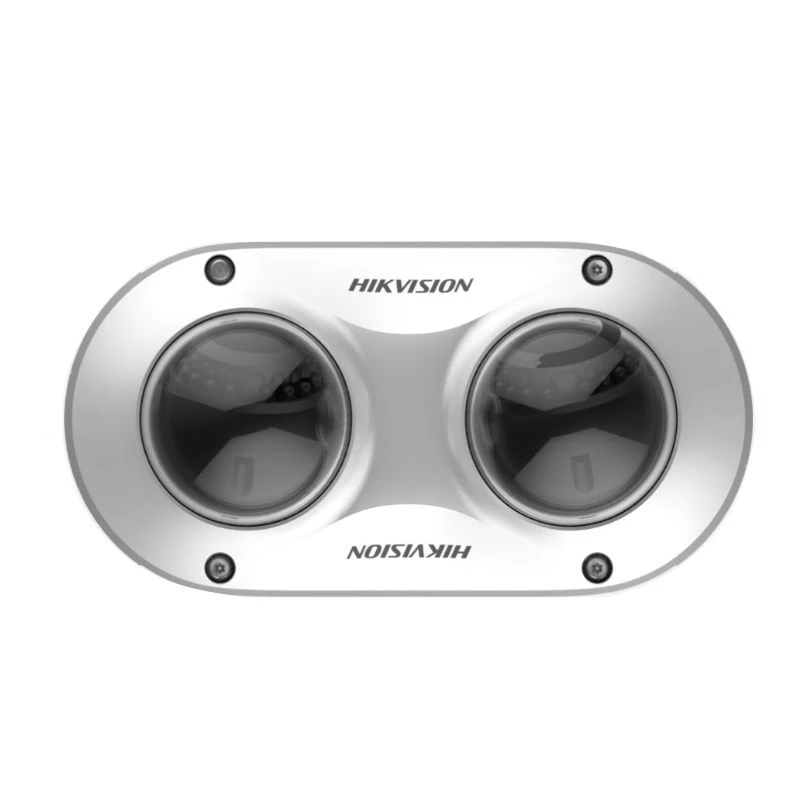

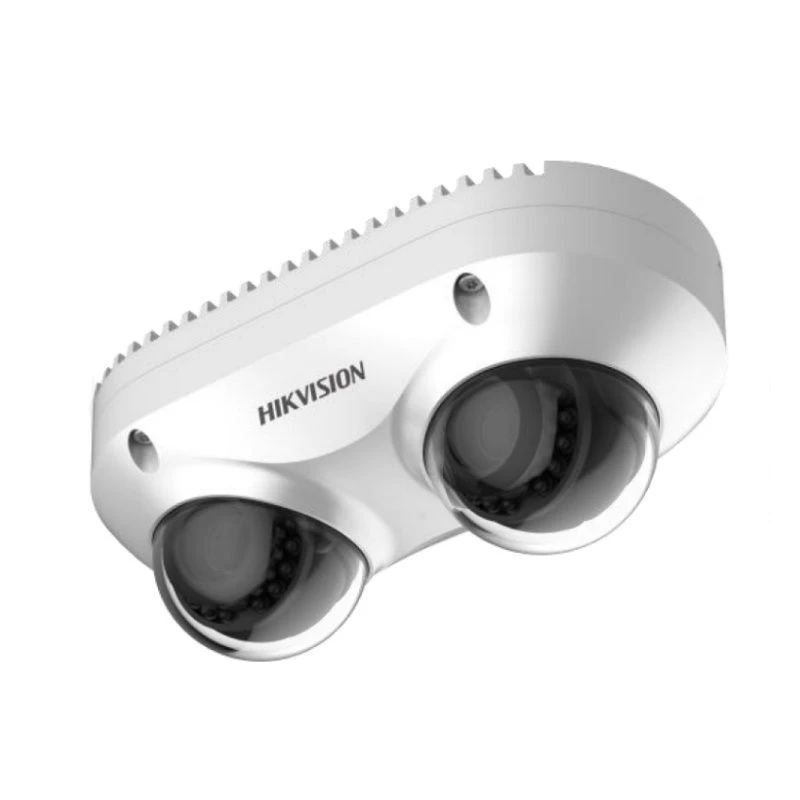

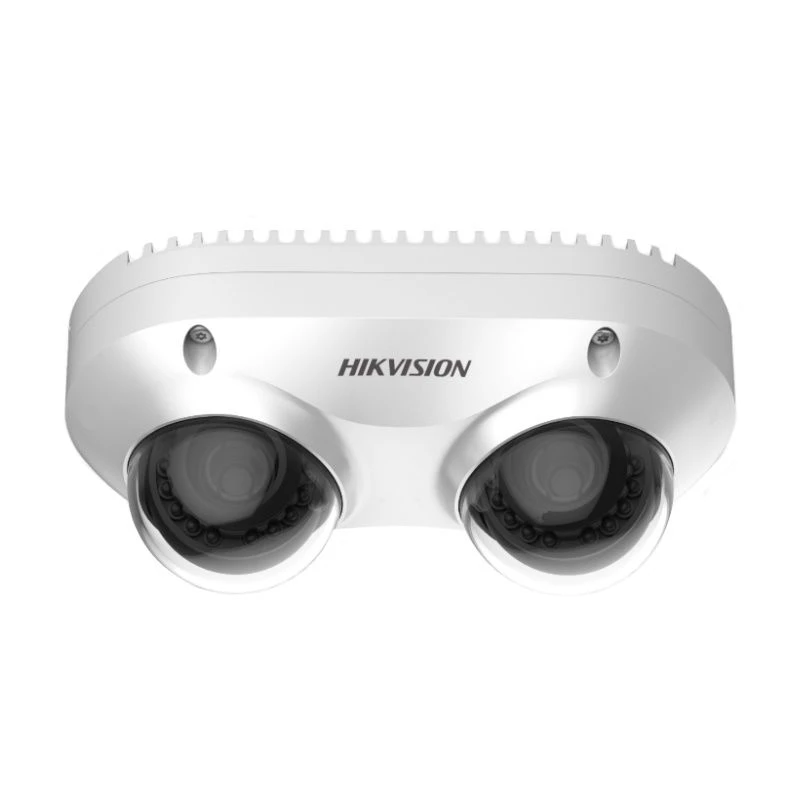

The DS-2CD6D42G0-IS is a 5MP PanoVu camera, with a Dual-directional design, avaliable in 3 different lens options.
Hikvision PanoVu range cameras offer a streamlined surveillance experiance, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)
The DS-2CD6D42G0-IS is a part of the Dual-directional PanoVu series, and offers a dual-lens design, with flexible Pan and Tilt capabilities, to allow for two seperate wide angle views from a single vantage point.
The most suitable application environments for Dual-directional PanoVu cameras include; Hallways, Walkways, Retail, and, Cashier Stations
Smart Features – To add to the capabilites of video surveillance, the DS-2CD6D42G0-IS is equipped with the use of a selection of security features – Basic events, Smart events, and Linkage options
Basic Events – Motion detection, Video tampering alarm, Network disconnected, IP address conflict, Illegal login, HDD full, HDD error, Abnormal reboot, Alarm input/output, and Video quality diagnosis
Smart Events – Scene change detection, Audio exception detection, and Defocus detection
Linkage – Upload to FTP/NAS/memory card, Notify surveillance centre, Send Email, Trigger alarm output, Trigger recording, and Trigger capture
Lens Options and FOV – The DS-2CD6D42G0-IS comes avaliable with a choice of 3 different lens types (2.8mm, 4mm, or, 6mm) – each offer an M12 lens mount, with F1.6 aperture, and different Fields of View.
| Horizontal FOV | Vertical FOV | Diagonal FOV | |
| 2.8mm | 98.2° | 54.2° | 114.6° |
| 4mm | 78.8° | 40.5° | 93.9° |
| 6mm | 49.1° | 26.3° | 57.2° |
DORI = Detect, Observe, Recognise, Identify – The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| 2.8mm | 61.1 m | 24.2 m | 12.2 m | 6.1 m |
| 4mm | 85.4 m | 33.9 m | 17.1 m | 8.5 m |
| 6mm | 128.0 m | 50.8 m | 25.6 m | 12.8 m |
