Hikvision DS-2CD6D52G0-IH(S) 5MP Dual-Directional PanoVu Camera

The DS-2CD6D52G0-IH(S) is a 5MP PanoVu camera, with a Dual-directional design, avaliable in 3 different lens options.

Hikvision PanoVu range cameras offer a streamlined surveillance experiance, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)

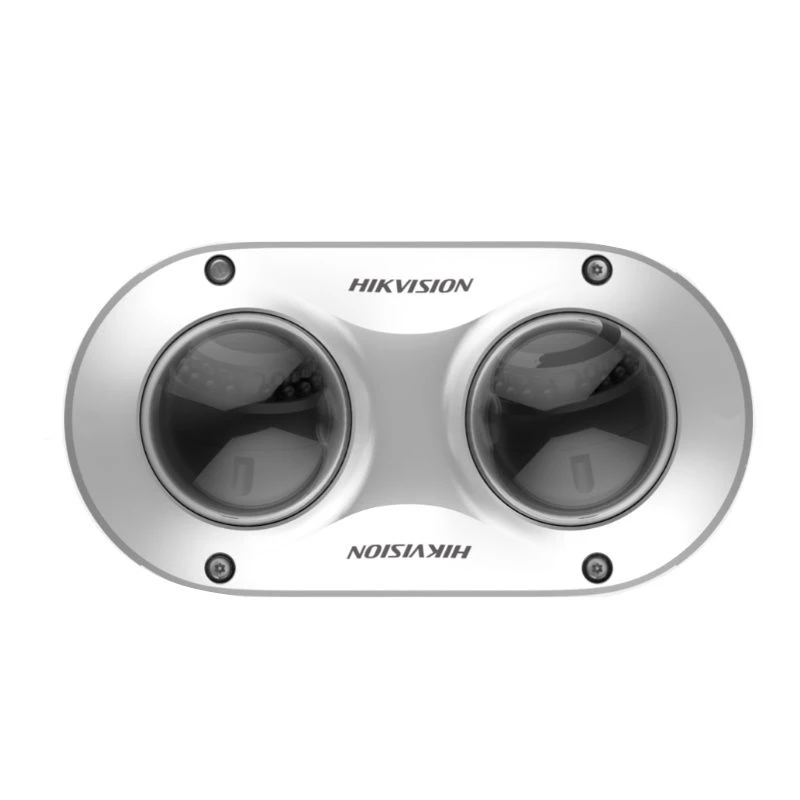

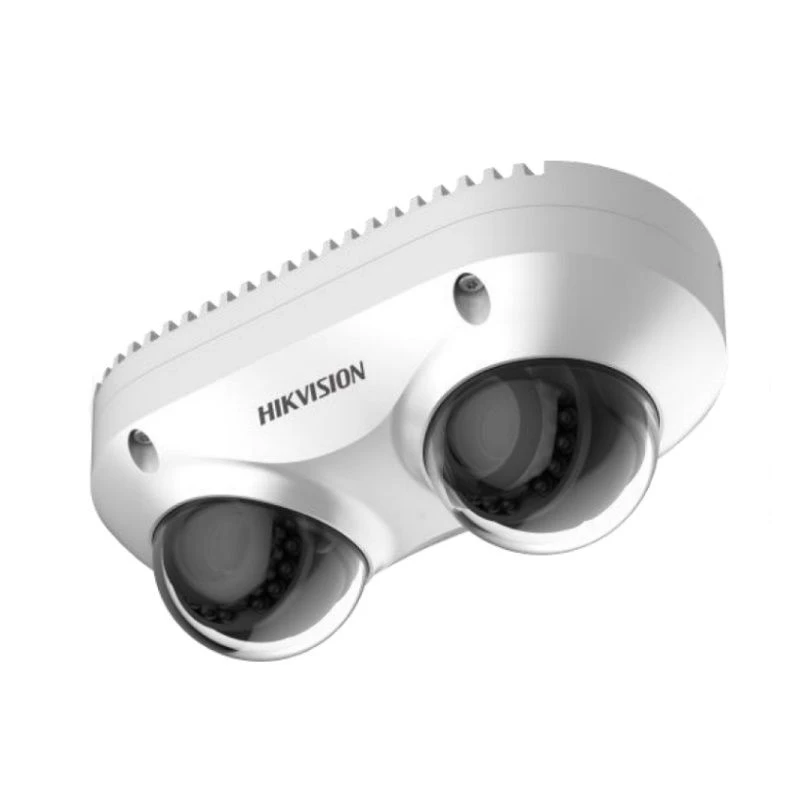

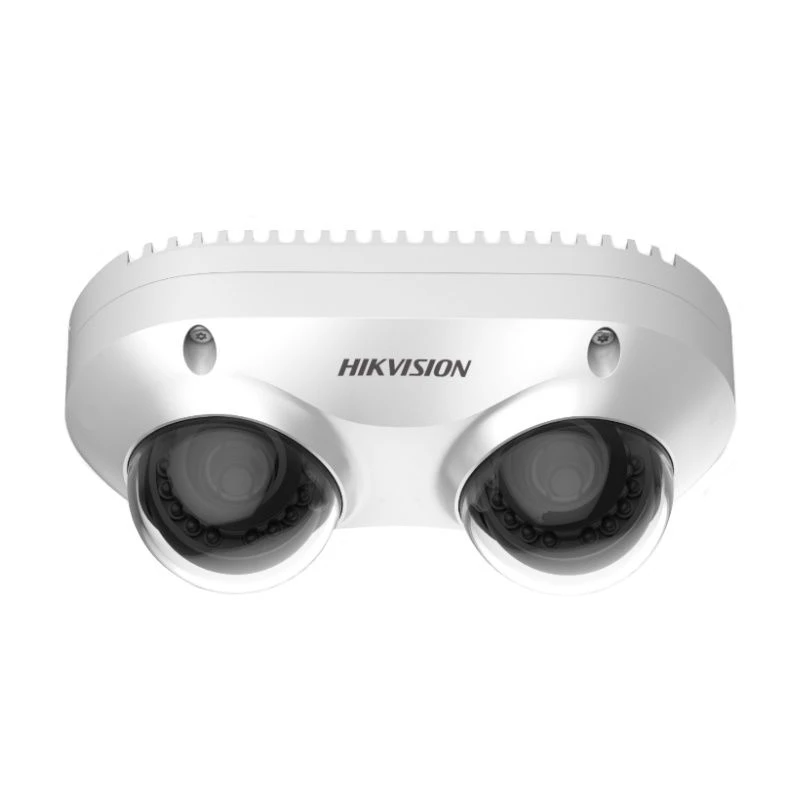

The DS-2CD6D52G0-IH(S) is a part of the Dual-directional PanoVu series, and offers a dual-lens design, with flexible Pan and Tilt capabilities, to allow for two seperate wide angle views from a single vantage point.

The most suitable application environments for Dual-directional PanoVu cameras include; Hallways, Walkways, Retail, and, Cashier Stations

---

Smart Features – To add to the capabilites of video surveillance, the DS-2CD6D52G0-IH(S) is equipped with the use of a selection of security features – Basic events, Smart events, and Linkage options

Basic Events – Motion detection, Video tampering alarm, and Excepton detection (network disconnected, IP address conflict, Illegal login, HDD full, HDD error)

Smart Events – Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection, and, Audio exception detection

Linkage – Upload to FTP/NAS/memory card, or, Send Email

---

Lens Options and FOV – The DS-2CD6D52G0-IH(S) comes avaliable with a choice of 3 different lens types (2.8mm, 4mm, or, 6mm) – each offer an M12 lens mount, with F1.6 aperture, and different Fields of View.

	Horizontal FOV	Vertical FOV	Diagonal FOV
2.8mm	97°	70°	128°
4mm	79°	57°	104°
6mm	49°	35°	63°

DORI = Detect, Observe, Recognise, Identify – The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
2.8mm	61.1 m	24.2 m	12.2 m	6.1 m
4mm	85.4 m	33.9 m	17.1 m	8.5 m
6mm	128.0 m	50.8 m	25.6 m	12.8 m

---

Dimensions
