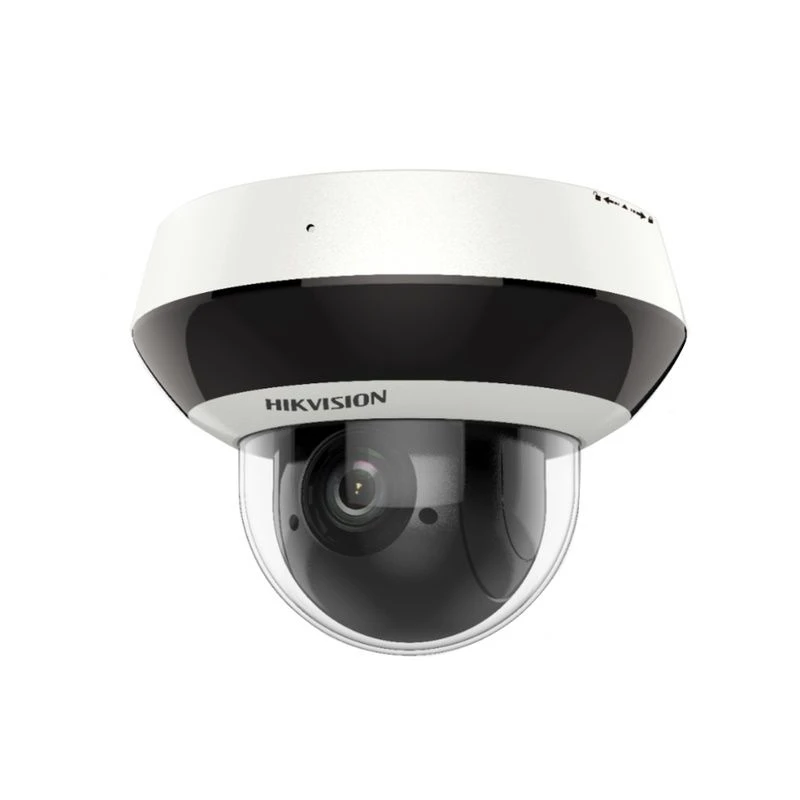

Hikvision DS-2DE2A404IW-DE3(S6) 2-Inch 4MP Mini PT Dome Camera

The DS-2DE2A404IW-DE3(C0)(S6)(C) is a 2-inch Mini PT Dome camera from Hikvision, designed to offer intuitive Pan and Tilt capabilities that can be controlled remotely using the Hik-Connect mobile app.
It comes equipped with 4MP image resolution, 4x optical zoom, IR illumination, DarkFighter technology, and a selection of video surveillance events.

---

PTZ Specs / Capabilites

The DS-2DE2A404IW-DE3(S6) offers users PTZ capabilites and a selection of supported PTZ features. With Pan/Tilt manouverability, Hikvision’s PT domes are capable of expansive views, ideal for a range of wide indoor spaces (such as; corridors, offices, factories, stores, restaurants, etc). This is supported by 4x optical and 16x digital zoom, allowing for detailed close ups of objects / areas of interest.

Pan – Movement range – 0° ~ 355° | Speed – configurable from 0.1°/s ~ 100°/s

Tilt – Movement range – 0° ~ 90° | Speed – configurable from 0.1°/s ~ 100°/s

Zoom – 4x Optical, 16x Digital

Supported PTZ features – Proportional zoom, Presets (up to 300), Preset freezing, 3D positioning, PTZ status display, Scheduled tasks (preset, dome reboot, and dome adjust)

---

Image Quality

Equipped with 4MP resolution, up to 2560×1440, with 16:9 aspect ratio, the DS-2DE2A404IW-DE3(S6) offers impressive image quality, supported by select image enhancement technologies and excellent low-light performance.
These features include:

IR Illumination – with an IR wavelength of 850nm, the built-in IR Illuminator reaches up to 20m, and allows for impressive image clarity and area coverage in darkness

120dB WDR (Wide Dynamic Range) – used to improve image detail in scenes with areas of dim lighting / darkness and harsh bright lighting, to keep surveillance footage as clear as possible in challenging lighting conditions

BLC (Backlight Compensation) and HLC (Highlight Compensation) – used to compensate for strong backlight (BLC) and areas of brightness (HLC) to help keep images clear and detailed at all times

3DNR (3D Noise Reduction) – helps to reduce interferance from incoming signals (‘noise’) that would usually disrupt image quality, to maintain image quality.

---

Events and Alarm Linkage

Basic Events – Motion detection, Video tampering alarm, and Exception detection

Smart Events – Face detection, Line-crossing detection, Intrusion detection, Region enterance detection, Region exiting detection, Unattended baggage detection, Object removal detection, and Audio exception detection

Alarm Linkage – Upload to FTP/NAS/memory card, Notify surveillance centre, send Email, Trigger recording, and PTZ actions (preset)

---

DORI – Detect, Observe, Recognise & Identify

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Distance (Tele)	180m	71.4m	36m	18m

---

Dimensions:
