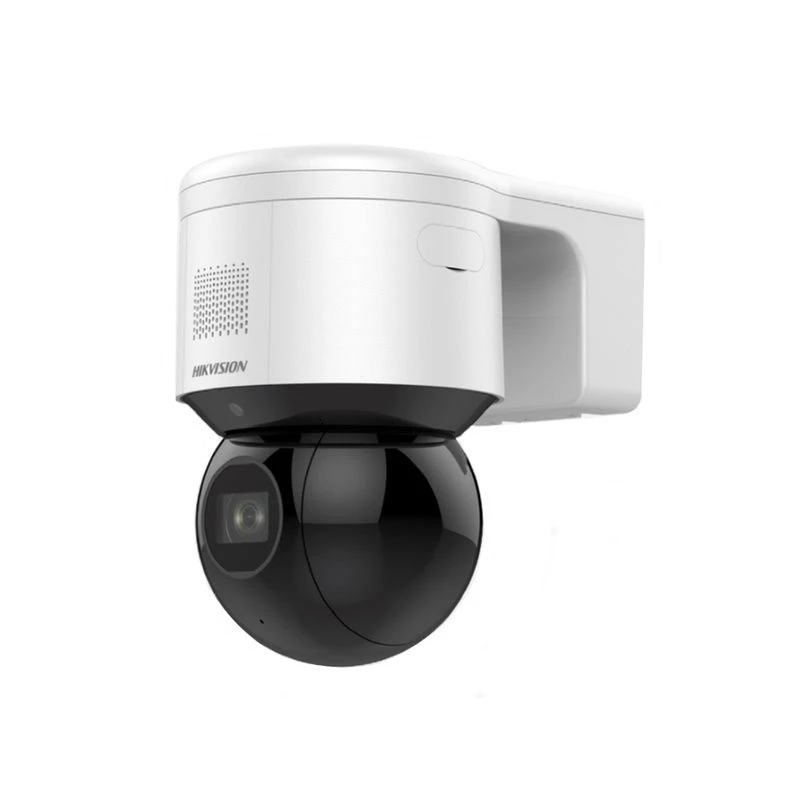

Hikvision DS-2DE3A404IW-DE(S6) 3-Inch 4MP Mini PT Dome Camera

The DS-2DE3A404IW-DE(S6) is a 3-inch 4MP PT Mini Dome camera, designed with Pan and Tilt capabilities for effective wide area coverage, and 4x optical zoom.
This camera also features IP66 rated casing, for water and dust resistance, suitable for installation in outdoor environments.

---

PTZ Specs / Capabilites

The DS-2DE3A404IW-DE(S6) offers users PTZ capabilites and a selection of supported PTZ features. With Pan/Tilt manouverability, Hikvision’s PT domes are capable of expansive views, working alongside 4x optical and 16x digital zoom, allowing for detailed close ups of objects / areas of interest.

Pan – Movement range – 0 ~ 350° | Speed – configurable from 0.1°/s ~ 60°/s

Tilt – Movement range – 0° ~ 90° | Speed – configurable from 0.1°/s ~ 50°/s

Zoom – 4x Optical, 16x Digital

Supported PTZ features – Proportional pan, Presets (up to 300), Preset freezing, 3D positioning, PTZ status display, Patrol scan (up to 32 presets for each patrol), Scheduled tasks (preset, patrol scan, dome reboot, dome adjust, and aux output)

---

Image Quality

Equipped with 4MP resolution, up to 2560×1440, with 16:9 aspect ratio, the DS-2DE3A404IW-DE(S6) offers impressive image quality, supported by select image enhancement technologies for improved performance in challenging lighting conditions.
These features include:

120dB WDR (Wide Dynamic Range) – used to improve image detail in scenes with areas of dim lighting / darkness and harsh bright lighting, to keep surveillance footage as clear as possible in challenging lighting conditions

BLC (Backlight Compensation) and HLC (Highlight Compensation) – used to compensate for strong backlight (BLC) and areas of brightness (HLC) to help keep images clear and detailed at all times

3DNR (3D Noise Reduction) – helps to reduce interferance from incoming signals (‘noise’) that would usually disrupt image quality, to maintain image quality.

---

Events and Alarm Linkage

Basic Events – Motion detection, Video tampering alarm, Exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), Alarm Input, and Alarm Output

Smart Events – Face detection, Line crossing detection, Intrusion detection, Region enterance detection, Region exiting detection, Unattended baggage detection, Object removal detection, and Audio exception detection

Alarm Linkage – Upload to FTP/NAS/memory card, Notify surveillance centre, send Email, Audiable warning, Flashing alarm, Preset, and Patrol scan

---

DORI – Detect, Observe, Recognise & Identify

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Distance (Tele)	180m	71.4m	36m	18m

---

Dimensions:
