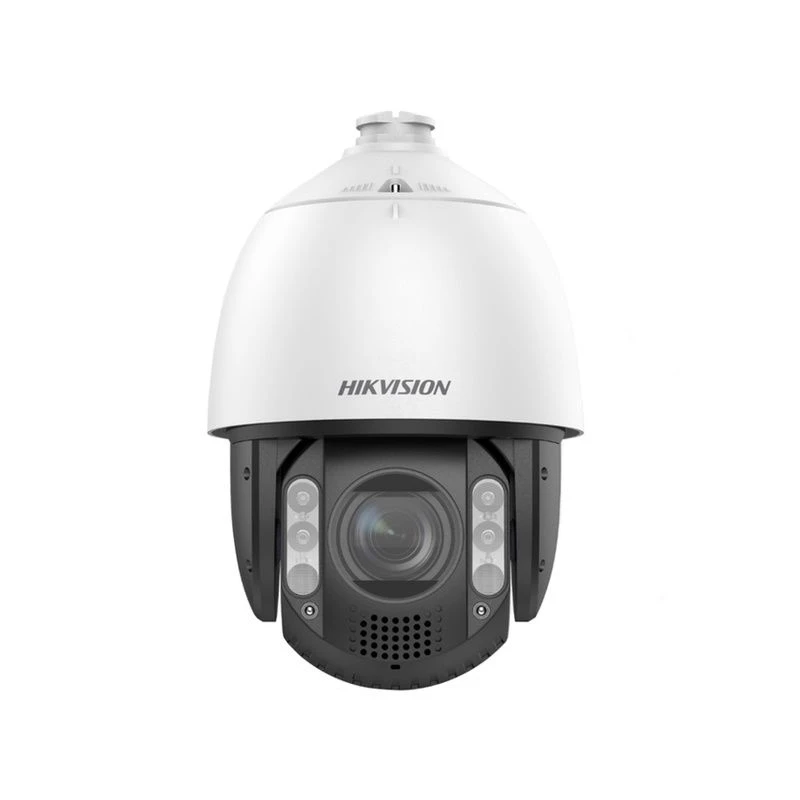

Hikvision DS-2DE7A412MCG-EB 7-inch 4MP ColorVu Network Speed Dome

The DS-2DE7A412MCG-EB is a 7-inch PTZ camera from Hikvision, equipped with a 6.7mm ~ 80.4mm varifocal lens, and capable of 4MP resolution, 12x Optical zoom, and 24/7 colour imaging (using Hikvision’s ColorVu technology)

Also featuring a selection of Image Enhancement technologies, and support for Smart features / Deep learning functions, the DS-2DE7A412MCG-EB is well equipped for a range of video surveillance applications, offering impressive image quality, performance, and capabilities.

---

Impressive Image Quality

With technologies in place for image enhancement, and features for improved performance in challenging lighting conditions, the DS-2DE7A412MCG-EB provides continuous impressive performance for effective surveillance footage at all times. Supported features / technologies include:

Suppliment Light – with IR Illumination up to 150m, and White Light up to 100m

Day/Night Modes – for impressive image quality 24/7. Supports Auto, and Scheduled switching between modes

Image Enhancement – BLC (backlight compensation), HLC (highlight compensation, and, 3DNR (3D noise reduction) for improved image quality, reducing strong backlight, brightness, and ‘noise’ interferance

120dB WDR (Wide Dynamic Range) – equipped to improve image visibility in challenging lighting conditions – scenes with extremely bright or dark lighting – keeping footage as detailed and clear as possible at all times

Other features – Digital Defog, EIS (electronic image stabalisation), Regional Exposure, Regional Focus, and Image Settings

---

PTZ Capabilities

Pan Range – 360° | Pan Speed – configurable from 0.1°/s ~ 160°/s (preset speed – 240°/s)
Tilt Range – -15° ~ 90° (auto flip) | Tilt Speed – configurable from 0.1°/s ~ 120°/s (preset speed – 200°/s)

The DS-2DE7A412MCG-EB also features support for Proportional Pan, up to 300 Presets, 8 Patrol scans (with up to 32 presets for each patrol), 4 Pattern scans, Power-off memory, 3D positioning, PTZ status display, Preset freezing, Park actions (listed below), and, Scheduled tasks (listed below)

Park Actions – Preset, Patrol scan, Pattern scan, Auto-scan, Tilt scan, Random scan, Frame scan, and, Panorama scan

Scheduled Tasks – Preset, Pattern scan, Patrol scan, Auto-scan, Tilt scan, Random scan, Frame scan, Panorama scan, Dome reboot, Dome adjust, and, Aux output

---

Smart Features and Deep Learning Functions

Basic Events – Motion detection, Video tampering alarm, Exception detection, Alarm input, and Alarm output

Smart Events – Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, and, Audio exception detection

Smart Tracking – Features support for Manual tracking and Auto-tracking

Alarm Linkage – Upload footage to FTP/NAS/memory card, Notify surveillace center, Send Email, Trigger alarm output, Trigger recording, Audiable warning, White light flashing, and PTZ actions (preset, patrol scan, and pattern scan)

Deep Learning Functions – Face Capture (detects up to 5 faces simultaneously, and supports detecting, capturing, grading, selecting of face in motion, and output of best face image), and, Perimeter Protection (supports line crossing, region enterance, and, region exiting)

---

DORI – Detect, Observe, Recognise & Identify

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

DORI	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Distance (tele)	744.8m	295.6m	149m	74.5m

---

Dimensions
