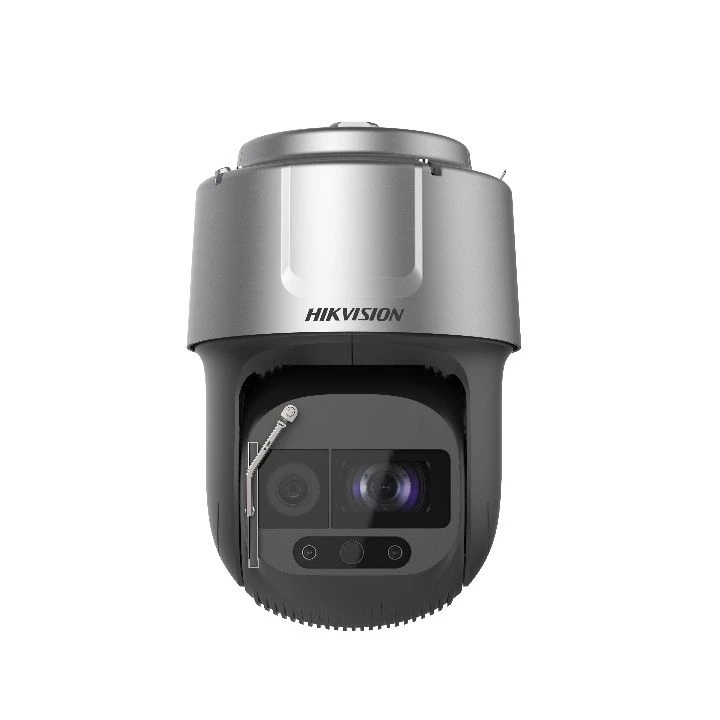

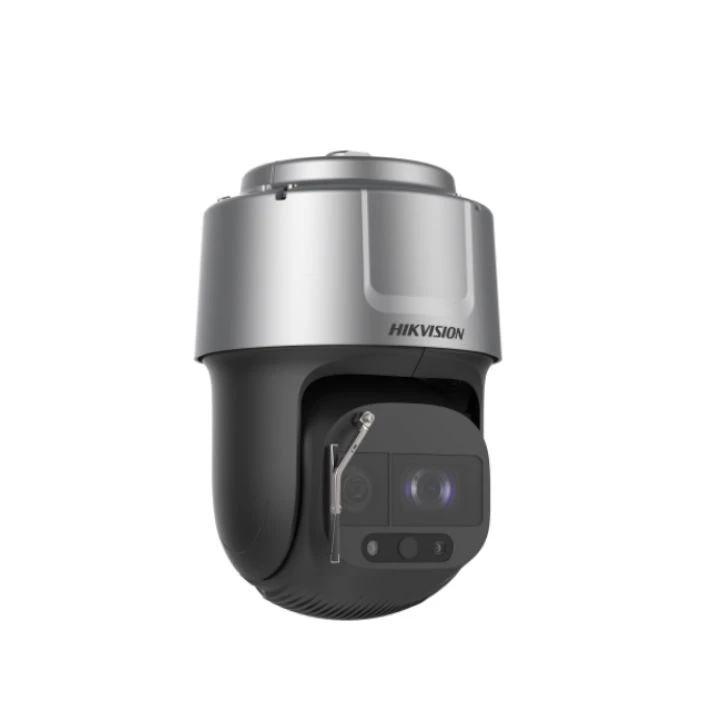

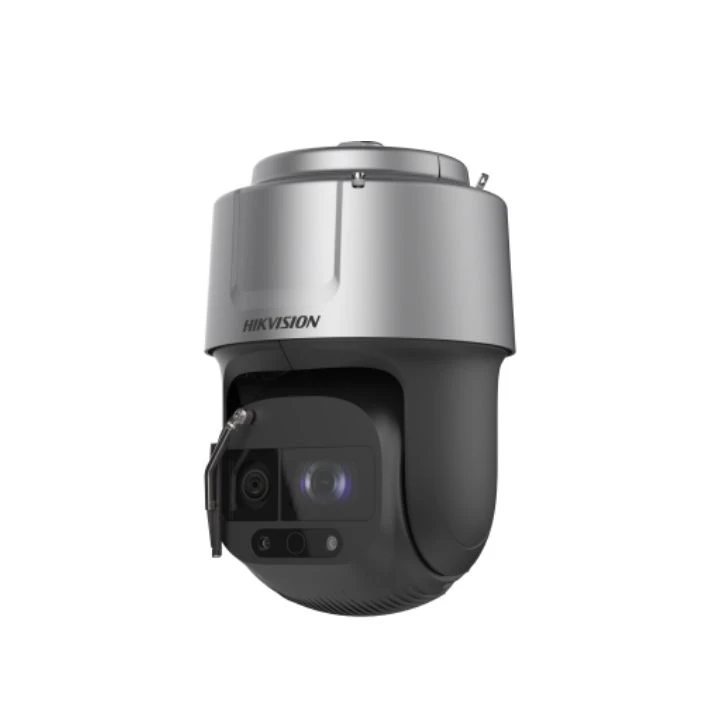

Hikvision DS-2DF9C435IHS-DLW(T2) 4MP 35x Zoom IR PTZ Network Camera

The Hikvision DS-2DF9C435IHS-DLW(T2) is a 4 megapixel PTZ network camera, with 35x optical zoom and and varifocal lens of 5.9mm – 206.5mm which provides a horizontal field of view of 58.9° – 206.5°. It has been designed for use where high definition images are required across expansive areas such as rivers, forests, railway lines, airports, and public venues etc.

Using deep learning algorithms to support the auto tracking 3.0 and perimeter protection, the DS-2DF9C435IHS-DLW(T2) will accurately determine humans and/or vehicles to provide a reliable alarm notification. The algorithm dramatically reduces the number of false alarms that can be triggered by small animals, foliage, shadows or heavy rain.

To ensure that optimised surveillance can be achieved, the DS-2DF9C435IHS-DLW(T2) features the following smart events.

• Object removal detection
• Unattended baggage detection
• Intrusion detection
• Line crossing detection
• Region entrance detection
• Region exiting detection
• Audio exception detection
• Face Capture (Detects up to 30 faces at once)
• Vehicle Detection (license plate number, vehicle model and vehicle colour recognition)

The DS-2DF9C435IHS-DLW(T2) features DarkfighterX technology as well as powerful built-in IR supplement lighting that can reach up to 500 metres to ensure that high quality images are produced in low light environments. And, when faced with challenging light scenarios, the DS-2DF9C435IHS-DLW(T2) uses 140 dB WDR (Wide Dynamic Range), 3D (Digital Noise Reduction), HLC (Highlight Compensation), BLC (Backlight Compensation) and EIS (Electronic Image Stabalisation) to enhance the image quality.

DORI stands for Detect, Observe, Recognise & Identify. The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within it’s field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015.

DORI	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Distance (Tele)	2606.9m	1034.5m	521.4m	260.7m

Users are safe to install the DS-2DF9C435IHS-DLW(T2) outdoors, with a rating of IP67 the PTZ has been labelled resistant to water and dust ingress. It also features lightning protection, surge protection and voltage transient protection.

Please note that the DS-2DF9C435IHS-DLW(T2) needs to be powered via 36 VDC mains supply and does not support POE.

Hikvision DS-2DF9C435IHS-DLW(T2) Dimensions
