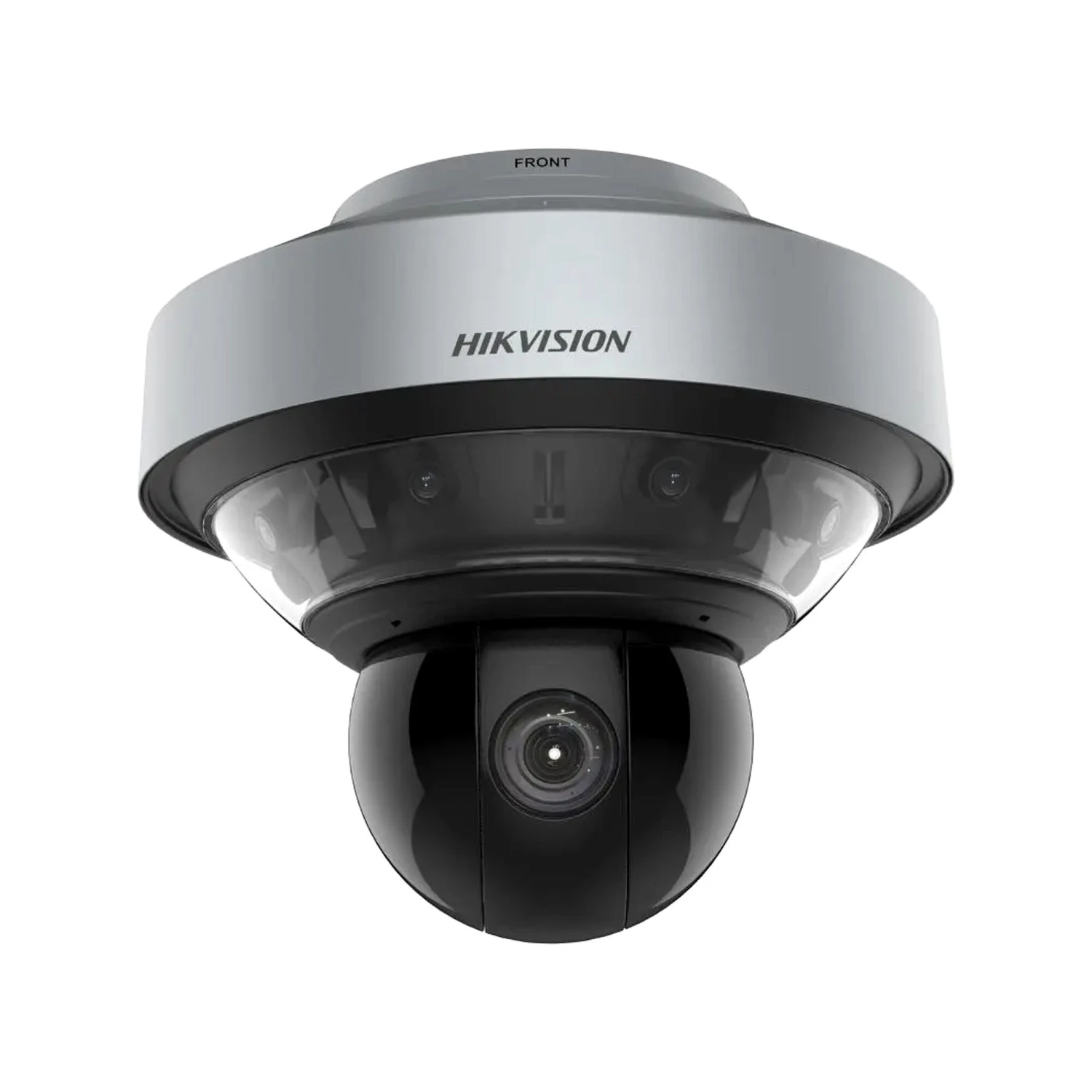

Hikvision DS-2DP2427ZIXS-DE/440(F0)(P4) 24MP 270° Panoramic And PTZ Camera

The DS-2DP2427ZIXS-DE/440(F0)(P4) is a 24MP Panoramic and PTZ Camera, offering users high resolution video with the use of two channels, for both wide-reaching panoramic views, and detailed close-ups.

---

Dual Panoramic and PTZ Channels

The two Panoramic and PTZ channels each offer their own surveillance capabilities and specs, offering users a varied and effective video surveillance experiance. While the Panoramic channel covers 6 individual sensors, and stitches images together to create a fill 270° panoramic field of view, the PTZ channel is used to show increased detail, allowing for 40x optical zoom to provide close up views over expansive areas.

Panoramic and PTZ channel specs:

	Panoramic Channel	PTZ Channel
Max. Resolution	8160 x 2400	8160 x 2400
Lens Focal Length	2.8mm	6mm ~ 240mm
Zoom	N/A	40x Optical, 16x Digital, 5.6s zoom speed
WDR (wide dynamic range)	Not supported	120 dB
Defog	Not supported	Supported – optical defog
Movement range (Pan / Tilt)	N/A	Pan: 360°, Tilt: -15° to 90° (auto flip)
Presets / Scans	N/A	300 presets, 8 patrol scans, 4 pattern scans

---

Smart Features

Events – Supports Line crossing, Region entrance, Region exiting, Unattended baggage, Object removal, and Intrusion detection events (these allow for improved video surveillance, detecting suspicious activity to alert users with supported alarm linkage)

Alarm Linkage – Upload to FPT/NAS/Memory card, Notify surveillance centre, Send Email, Trigger alarm, Trigger output, Trigger recording, and PTZ actions (preset, patrol scan, pattern scan)

Smart Tracking – Includes; Manual tracking, Auto-tracking, Panorama tracking, and supports Patrol tracking in multiple-detection scenes

Deep Learning functions – With deep learning support is included for Face Capture (can detect up to 30 faces simultaneously, and supports the detection, tracking, capture, grading, and output of best face picture), People Density (for the detection of density levels in user-configured areas), and Congestion Alarm

---

DORI = Detect, Observe, Recognise, Identify – The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Panoramic – Distance	38.6 m	15.3 m	7.7 m	3.9 m
PTZ – Distance (Tele)	4137.9 m	1642.0 m	827.6 m	413.8 m

---

Dimensions
