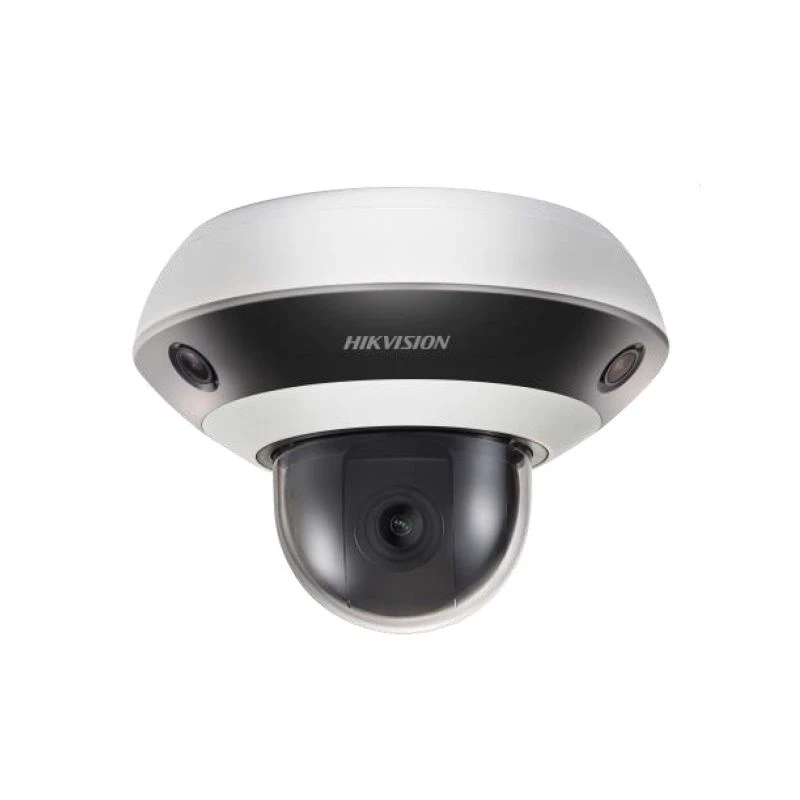

Hikvision DS-2PT3326IZ-DE3 Triple-Directional Mini PanoVu Camera With PTZ

The DS-2PT3326IZ-DE3 is a Triple-directional PanoVu camera, offering 3 lenses to cover up to 360° to ensure video surveillance with no blind-zones.

Hikvision PanoVu range cameras offer a streamlined surveillance experiance, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)
The DS-2PT3326IZ-DE3 is a part of the PanoVu Mini series, and offers a 3-lens design, with both a PTZ and Panoramic channels, offering a range of video surveillance and image quality capabilities. PanoVu Mini cameras are also a good option for users in need of compact sizes and cost effective designs.

The PanoVu Mini range is designed for use in a range of Indoor environments, with suitable applications including; Offices, Retail, Education, and Hotels

---

Channels – The DS-2PT3326IZ-DE3 is designed to feature both a Panoramic channel and a PTZ channel.
The Panoramic channel is avaliable in 3 of the Camera’s sensors, with 1920×1080 resolution at 30fps, and a minimum illumination of 0.05 lux. The PTZ channel offers 1920×1080 resolution, with 4x optical zoom, and 8x digital zoom. Additional spec differences are listed in the table below.

Panoramic and PTZ channel specs:

	Panoramic channel	PTZ channel
Image Enhancement	3D DNR, Regional exposure	3D DNR, Regional exposure, Regional focus
Privacy mask	4 programmable masks (x3)	8 programmable masks
Lens Type	F2.0 aperture, Fixed Focal lens	F2.0 ~ F2.4 aperture range, Varifocal lens
Focal length	2mm	2.8 ~ 12mm
Zoom	N/A	8x digital zoom, 4x optical zoom, 5.4s zoom speed
Field of View	128.5° x 3 (Horizontal FOV), 75.7° (Vertical FOV), 144° (Diagonal FOV)	120° ~ 56.6° (Horizontal FOV), 61.8° ~ 31.7° (Vertical FOV), 149° ~ 65° (Diagonal FOV)
Pan and Tilt	N/A	Pan: 0° ~ 90° | Tilt: 0° ~ 90°
Additional Features (for PTZ)	N/A	Proportional zoom, Power-off memory, PTZ status display, Scheduled tasks (preset/dome reboot/dome adjust), and Smart Events (audio exception, intrusion, and line crossing detection)

DORI = Detect, Observe, Recognise, Identify – The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Panoramic – Distance (Tele)	26.7 m	10.6 m	5.3 m	2.7 m
PTZ – Distance (Tele)	160 m	63.5 m	32 m	16 m

---

Dimensions
