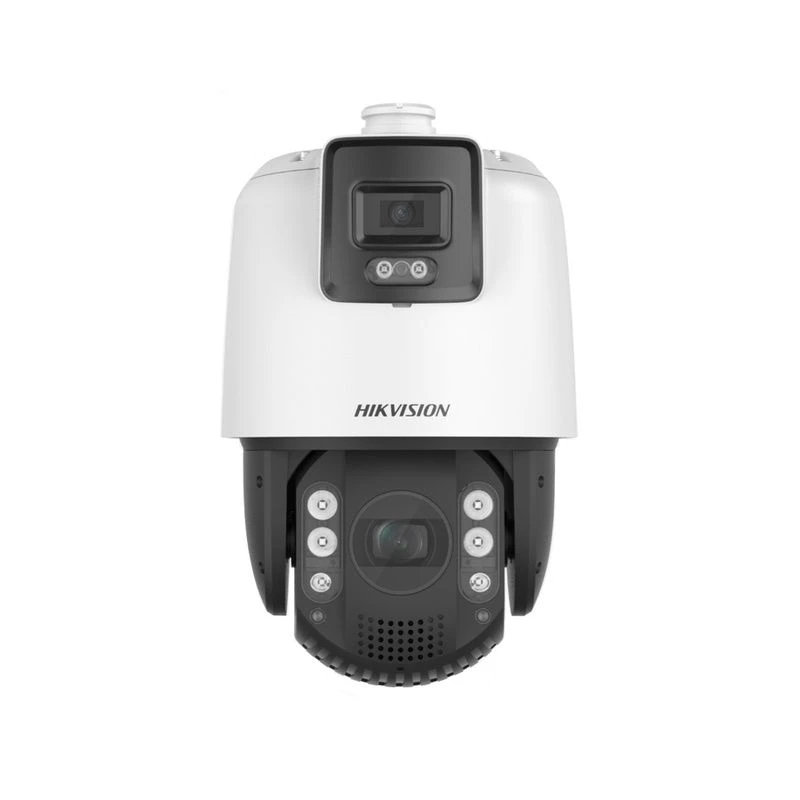

Hikvision DS-2SE7C432MW-AEB (14F1)(P3) 4MP 32x TandemVu IR Network Speed Dome

The DS-2SE7C432MW-AEB (14F1)(P3) IR Network speed dome, is a part of Hikvision’s new TandemVu camera range, exploring the capabilities of combining PTZ and bullet lenses, to allow for multiple lenses in one unit, a cost effective choice for anyone looking for effective outdoor security.

Hikvision’s TandemVu range allows users to hold panoramic views (using the bullet channel) even during pan, tilt, and zoom manouvers (using the PTZ channel), so even when getting a close up of the scene, you can feel confident that you will always be aware of the bigger picture, keeping everything as secure as possible.

As a part of the SE7C product family, the DS-2SE7C432MW-AEB, with an ingress protection of IP66, is an ideal choice for outdoor security in streets, parks, farmland and parking lots. It should also be noted, that with Day and Night functionality (and a scheduled switch between the two modes) users will be able to see crystal clear, full-colour footage, no matter the time of day.

The DS-2SE7C432MW-AEB also offers a range of Smart features, including:

– Basic Events: Motion detection, video tampering alarm (only on PTZ channel), alarm input, alarm output and exception (on both the PTZ channel and the Bullet channel)

– Smart Events: Intrusion detection, line crossing detection, region entrance detection, region exiting detection and audio exception detection (on both the PTZ channel and the Bullet channel)

– Smart Linkage: Manual tracking, auto-tracking, tracking takeover and track in turn.

– Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing (on both the PTZ channel and the Bullet channel) and PTZ actions (only on PTZ channel), which include, preset, patrol scan and pattern scan.

– Scheduled Tasks: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust and aux output (only on PTZ channel)

---

DORI stands for Detect, Observe, Recognise & Identify.

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Distance (Tele)	3060.0m	1214.3m	612.0m	306.0m

---

For more information about the capabilities of Hikvision’s TandemVu series cameras, please see the following ‘TandemVu in Action’ videos:

Industrial Park / Warehouse Docks , Industrial Park Perimeters , Industrial Park Entryways

---
