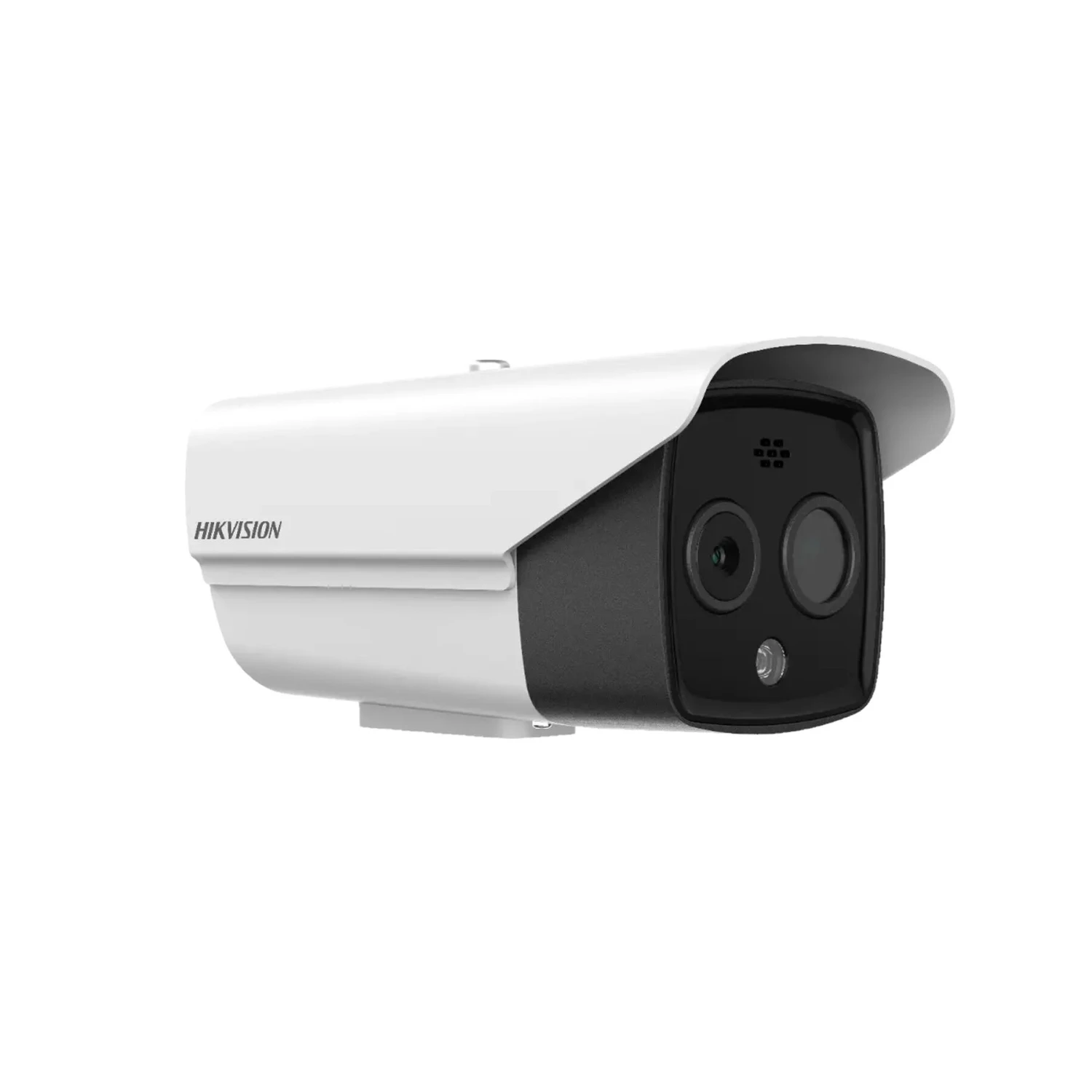

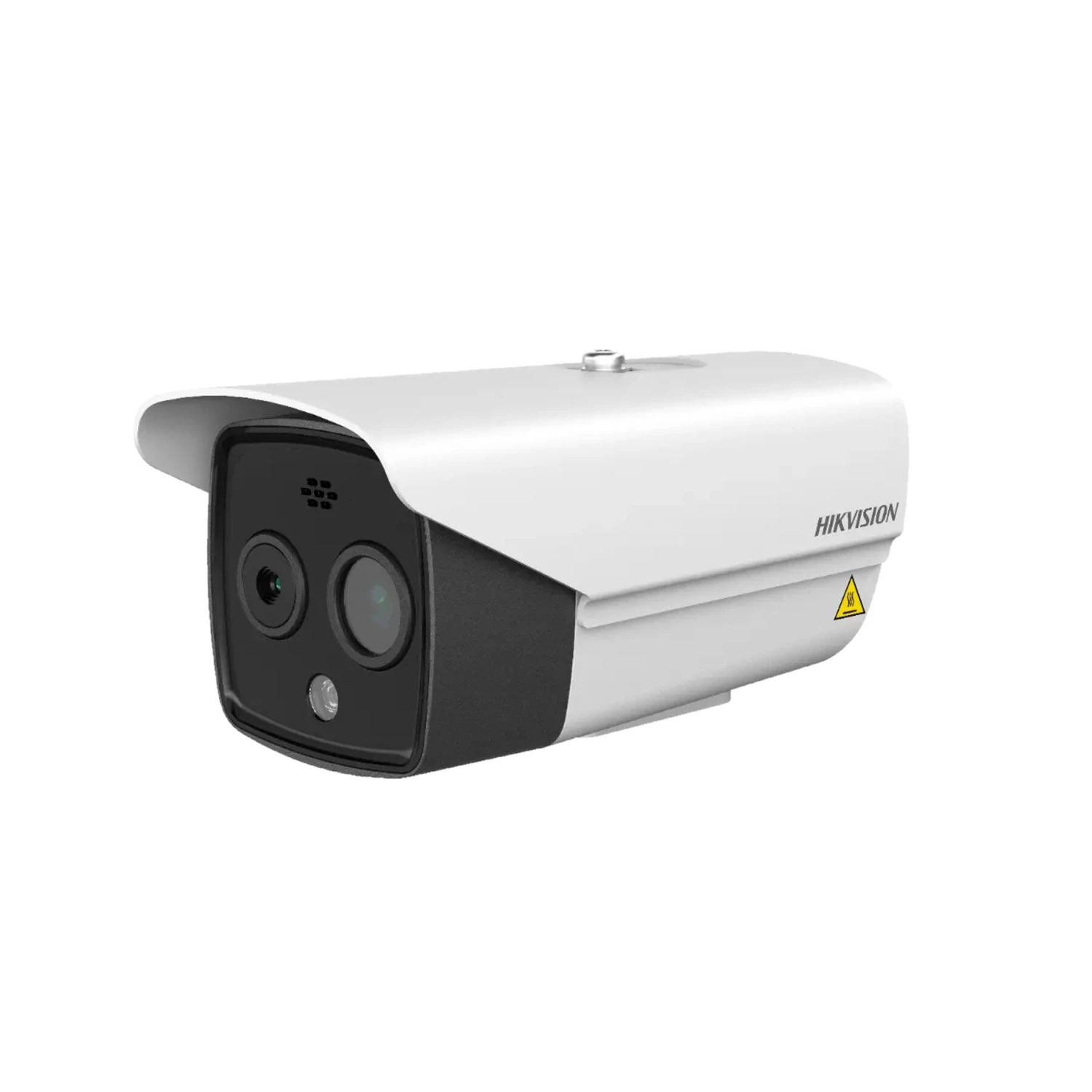

Hikvision DS-2TD2628-7/QA/GLT 4G Thermal Network Bullet Camera

The Hikvision DS-2TD2628-7/QA/GLT Thermal Bullet Camera offers an optical Bi-spectrum design (utilizing both a Thermal module and an Optical module) with support for video analysis (ideal for perimeter protection) and equipped with a temperature exception alarm (designed for early fire prevention).

As a part of the Hikvision HeatPro series, the DS-2TD2628-7/QA/GLT features Thermal Radiation detection abilities, allowing it to detect object temperatures (both high and low) and temperature changes (with alarms connected to these). This is what allows for its impressive early fire detection ability and makes it capable of working even in cases of darkness, low light, or strong backlight. With a HeatPro camera, users are able to react to fires (or other drastic temperature change issues) as quickly as possible, keeping damage to a minimum.

The setup for the DS-2TD2628-7/QA/GLT also connects easily and wirelessly over the internet over mobile networks through supporting multiple standards including GSM, WCDMA, and 4G LTE.

With a deep learning algorithm, the DS-2TD2628-7/QA/GLT also offers high precision VCA detection and real-time alarm, so users can always feel that their property is being kept as secure as possible, and know that they will be alerted to react to incidents as soon as possible.

With its smart features, and IP67 design, the DS-2TD2628-7/QA/GLT is considered an ideal choice of camera to be applied to a wide range of environments, including in a mobile tower, construction sites and farms.



Smart Functions:

– VCA Range: Vehicles (1.4 x 4.0 m) – 144.9m   –  Humans (1.8 x 0.5 m) – 55.2m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.

– Temperature Measurement: Object (0.2 x 0.2 m) – 23.3m  –  Object (1 x 1 m) 116.7m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total. The rule types include; 10 points, 10 areas, and 1 line.

Temperature Range –  -20°c ~ 150°c (-4°F to 302°F)
Temperature Accuracy –  ± 8°C (± 14.4°F)



DRI (Detection, Recognition, Identification) Range:

– Detection Range: Vehicles (1.4 x 4.0 m) 881m  –  Humans (1.8 x 0.5 m) 287m – In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.

– Recognition Range: Vehicles (1.4 x 4.0 m) 220m  –  Humans (1.8 x 0.5 m) 72m – In order to classify, the object (Animal, Human, Vehicle, ect) must be covered by 6, or more, pixels.

– Identification Range: Vehicles (1.4 x 4.0 m) 110m  –  Humans (1.8 x 0.5 m) 36m – In order to identify and describe it in details, the object must be covered by 12, or more, pixels.



---

Dimensions:



---



HeatPro Series:
