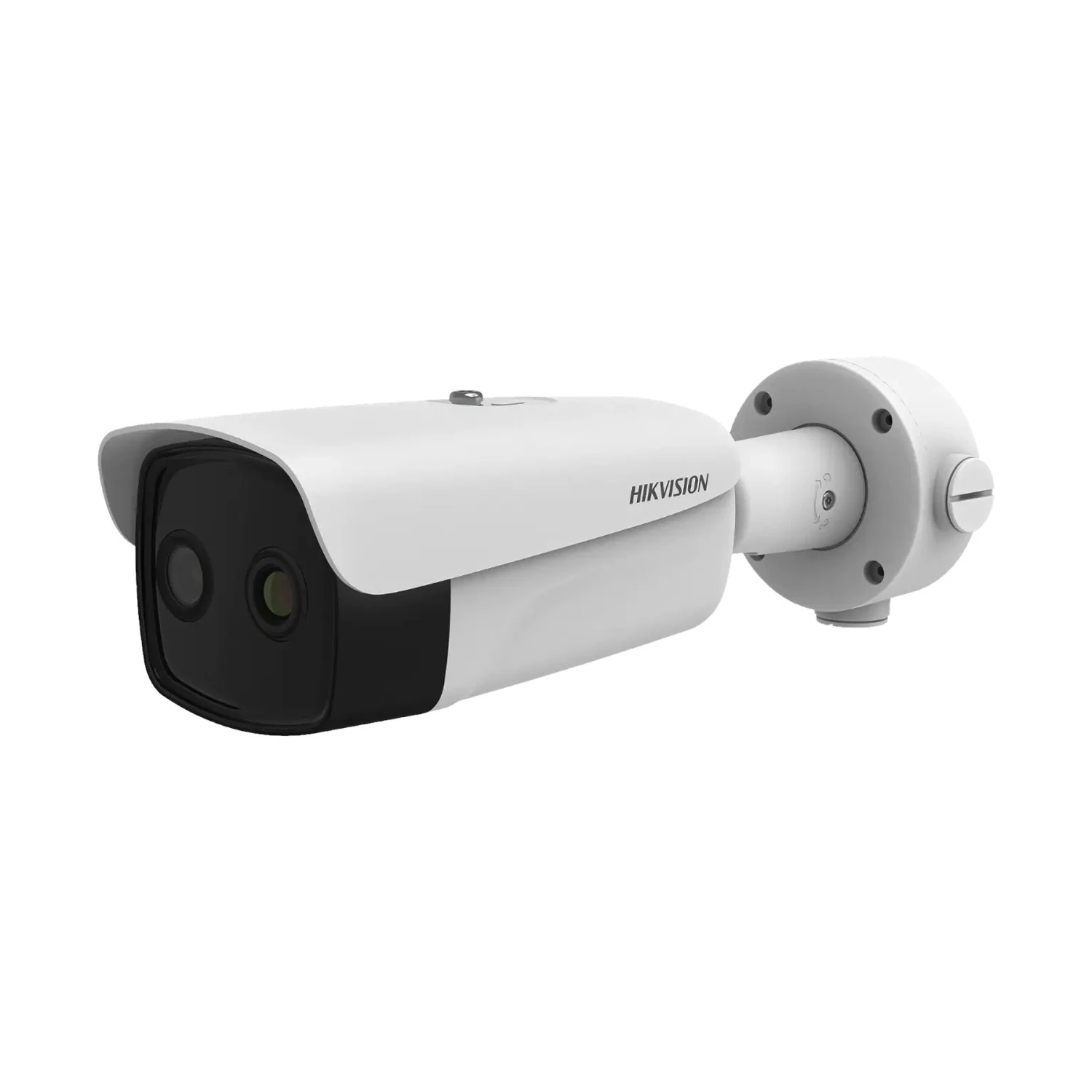

Hikvision DS-2TD2637-15/P Thermal Network Bullet Camera

The Hikvision DS-2TD2637-15/P is a Thermographic Network Bullet Camera, offers an optical Bi-spectrum design (utilising both a Thermal module and an Optical module) and is equipped with a highly accurate temperature exception alarm.

The DS-2TD2637-15/P is equipped with a built-in GPU which supports an intelligent perimeter protection algorithm and real-time alarm. It can also realise high-precision VCA detection. This is then all applied to perimeter protection and fire prevention purposes, helping users discover unexpected events quickly and preventing damage to property.

With a deep learning algorithm, the DS-2TD2637-15/P also offers high precision VCA detection and real-time alarm, so users can always feel that their property is being kept as secure as possible, and know that they will be alerted to react to incidents as soon as possible.

With its smart features and IP66 design, the DS-2TD2637-15/P can be applied to solar park, substation, airport, recycling sites, warehouses, and more.

Smart Functions:

– VCA Range: Vehicles (1.4 x 4.0 m) – 309m   –  Humans (1.8 x 0.5 m) – 110m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.

– Temperature Measurement: Object (2 x 2 m) – 351m  –  Object (1 x 1 m) 177m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total. The rule types include; 10 points, 10 areas, and 1 line.

Temperature Range –  -20°c ~ 150°c (-4°F to 302°F)
Temperature Accuracy –  ± 8°C (± 14.4°F)

– Fire Detection:  Object (2 x 2 m) – 882m   –  Object (1 x 1 m) – 441m

DRI (Detection, Recognition, Identification) Range:

– Detection Range: Vehicles (1.4 x 4.0 m) 1353m  –  Humans (1.8 x 0.5 m) 441m – In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.

– Recognition Range: Vehicles (1.4 x 4.0 m) 338m  –  Humans (1.8 x 0.5 m) 110m – In order to classify, the object (Animal, Human, Vehicle, ect) must be covered by 6, or more, pixels.

– Identification Range: Vehicles (1.4 x 4.0 m) 169m  –  Humans (1.8 x 0.5 m) 55m – In order to identify and describe it in details, the object must be covered by 12, or more, pixels.



---

Dimensions:



---
