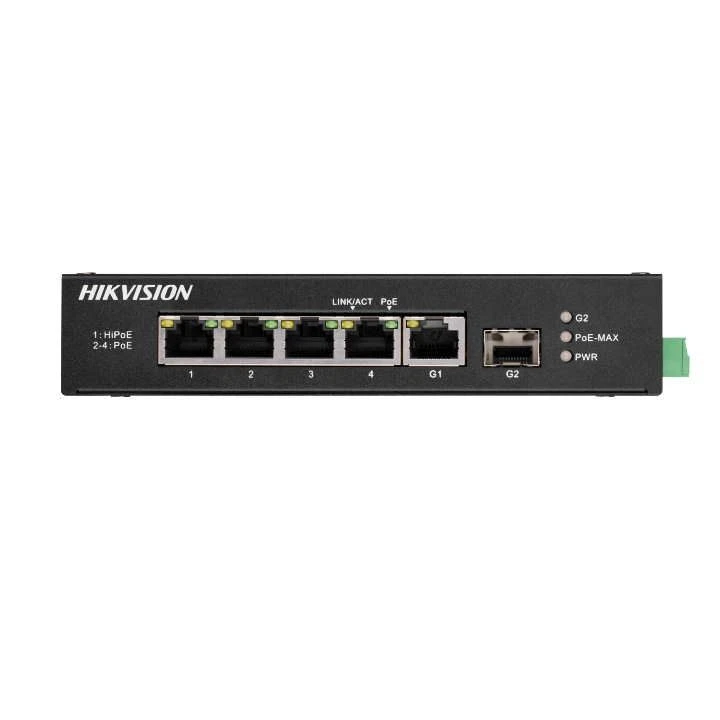

Hikvision DS-3T0306HP-E/HS 4 Port 100M Unmanaged Hi-PoE Switch

The Hikvsion DS-3T0306HP-E/HS is a long range, 4 port, 100M, unmanaged PoE switch. It features one Hi-PoE ports, and 3 standard PoE ports.

Ports 1 = Hi-PoE / Max Port Power: 90W

Ports 2 – 4 = PoE / Max Port Power: 30W

Ports 3 & 4 = Long-distance transmission (up to 300m)

Standard

– Ports 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

– Ports 2 to 4 : IEEE 802.3af, IEEE 802.3at

Max Port Power

– Ports 1 : 60W

– Ports 2 to 4: 30 W

Port Type

– RJ45 port, full duplex, MDI/MDI-X adaptive

Other

– Mac Address Table: 2K

– PoE Power Budget: 110W

– PoE Power Consumption: 120W

– Switching Capacity: 5.6 Gbps

– Power Supply: 48 to 57 VDC, 2.5 A Max
