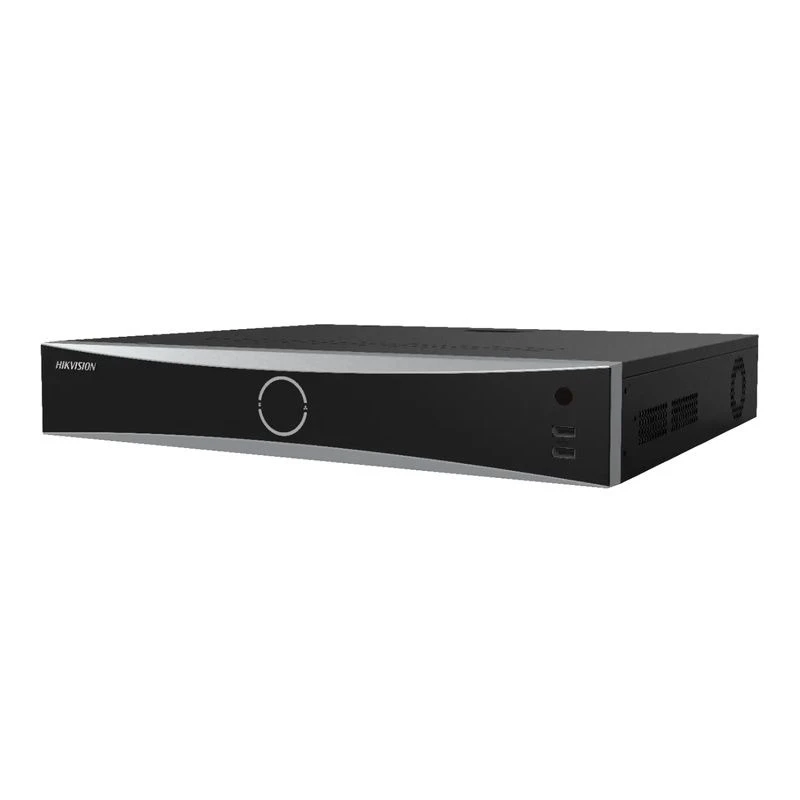

Hikvision DS-7716NXI-K4/16P 16-channel 1.5U 4K PoE K-series AcuSense Network Video Recorder

The DS-7716NXI-K4/16P is a 16-channel Network Video Recorder from Hikvision, that was designed as part of the K-series of NVRs, featuring AcuSense technology.

---

Performance:

Video Output – Provides simultaneous HDMI and VGA outputs (HDMI video ouput at up to 4K image resolution)

Storage and Playback – Features 4 SATA interfaces for HDD connection (supports up to 10TB), and 16-channel syncrhonous playback.

Network and Ethernet Access – Designed with 16 independent PoE network interfaces, and 1 self-adaptive 10/100/1000 Mbps Ethernet interface.

Reliability – Supports H.265+ compression (for storage efficiency – reduces storage space by 75%) and stream over TLS encryption (for a more secure stream transmission service)

Bandwidth – 160 Mbps Incoming / 160 Mbps Outgoing

---

AcuSense / Smart Functions:

As a part of the AcuSense K-series, the DS-7716NXI-K4/16P offers a cost effective NVR solution with built-in support for AI capabilities (Hikvision AcuSense technology). This allows for support for the following Smart functions:

Motion Detection 2.0 – supported by all channels, at 4MP resolution (up to 8MP when SVC mode is enabled)

Perimeter Protection – 2-channels, at 4MP resolution (by device) / all channels (by camera)

Video Analysis – 2-channels, for human and vehicle recognition (works to reduce false alarms)

Facial Recognition – 1-channel  for video stream /or 2-channel for face picture. (please see the table below for more information)

Facial Detection / Analytics	Supports; Face picture comparison, Human face capture, and, Face picture search.
Face Picture Library	Up to 16 libraries, with up to 20,000 face pictures in total. (pictures are <4MB, the total capacity is 1GB)
Facial Detection Performance	Supports 1-channel, at 8MP resolution
Face Picture Comparison	4-channels

Smart Search – for selected areas in video.

Smart Playback – for improved playback efficiency.

---

Interfaces:

---

Dimensions:
