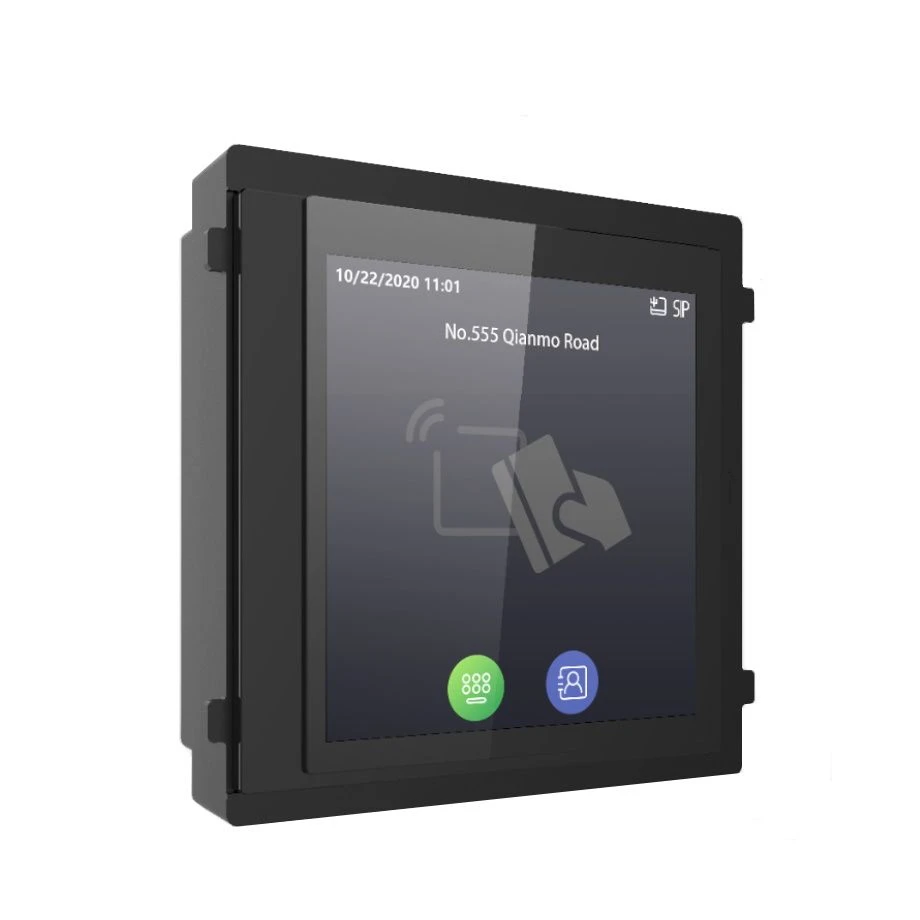

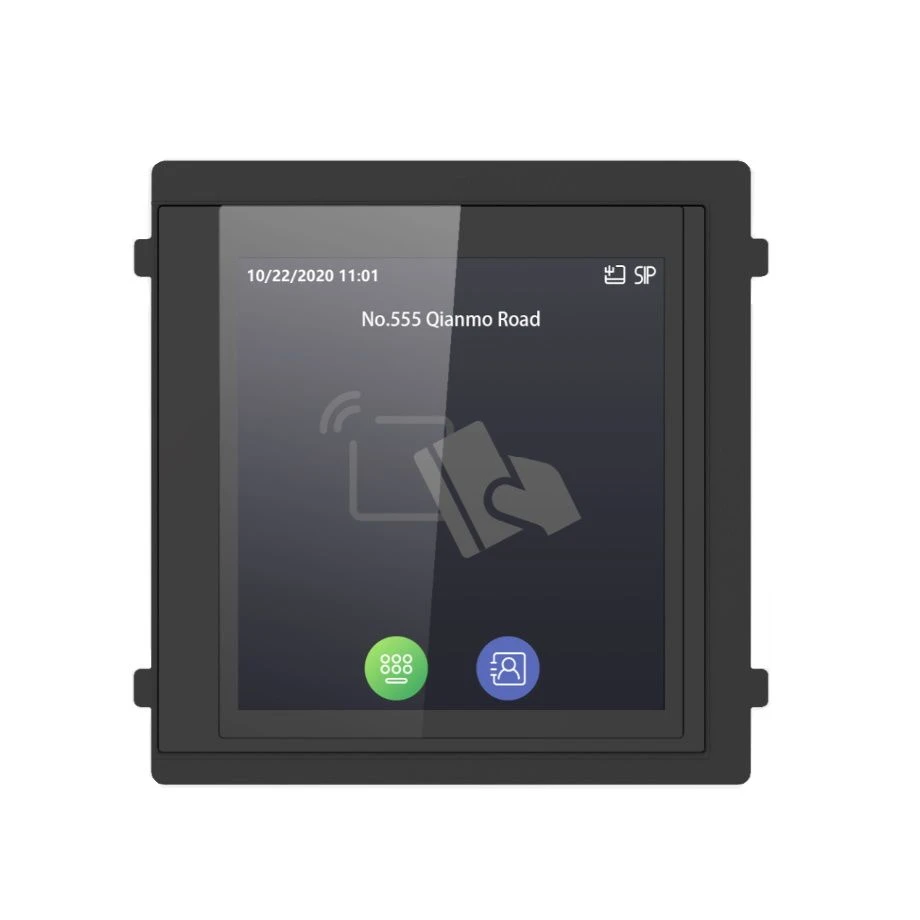

Hikvision DS-KD-TDM Door Station – Touch Display Module With Mifare Card Reader

Hikvision’s DS-KD-TDM is a modular Door Station, equipped with a 480 x 480 resolution 4-inch touch screen, and Mifare card reader. Equipped for use in outdoor applications, its design also features IP65 and IK8 rated protection (for water, dust and vandal resitance) as well as support for either Surface or Flush mounting brackets.

With support for both Card Reading and Pin Codes, the DS-KD-TDM offers users a choice of two main door entry security measures, alongside its other features (these include: Dial number display, Contact list, and Advertisement display). With its Touch and Display module design, the DS-KD-TDM is capable of a range of key features, and can add an additional, and impressive, layer of security to any intercom / video surveillance system.

---

Interface – Design Overview

Dimensions – (w x h x d)  100mm x 100mm x 35mm
