Hikvision DS-KIS602(B) Video Intercom Kit

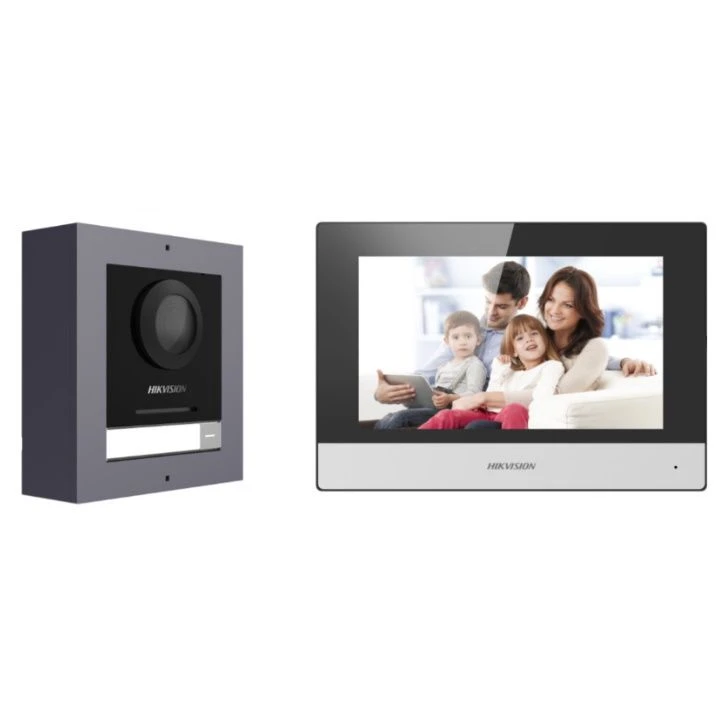

The DS-KIS602(B) Video Intercom Kit offers a selection of Hikvision products in a pre-prepared bundle, fit for an effective intercom / door entry system setup.

---

Indoor Station

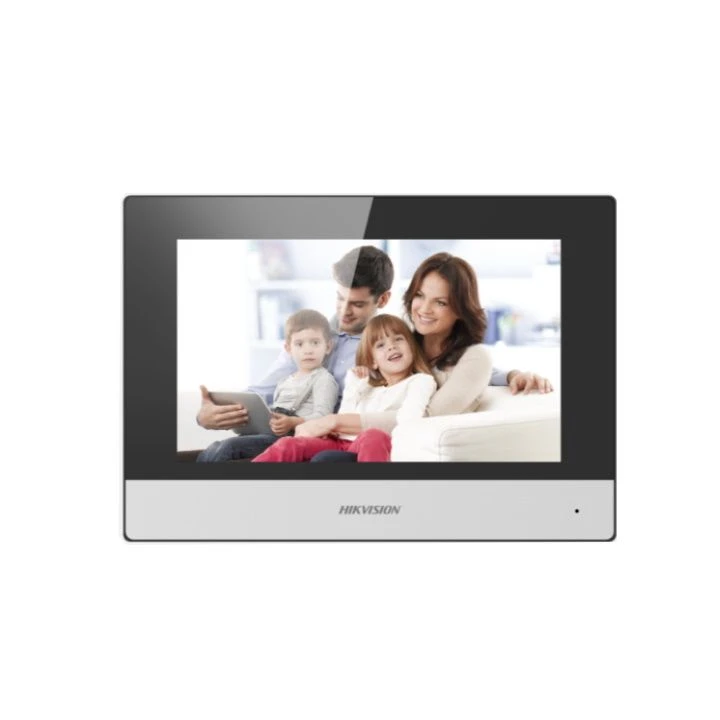

The DS-KH6320-WTE1 Indoor Station offers a 7-inch clour TFT screen, with 1024 x 600 resolution and capacitive touch technology.

General Specs –

– Working Temperature – -10°c ~ 55°c

– Power Consumption – <6W

Audio Parameters –

– Audio Input – Built-in omnidirectional Microphone – Output – Built-in Loudspeaker

– Audio Quality – Noise Suppression and Echo Cancellation

– Audio Compression rate – 64 Kbps

Device Interfaces –

– RS-485 – 1

– 8-channel Alarm Inputs

– Relay Output – 2

Dimensions –

---

Door Station

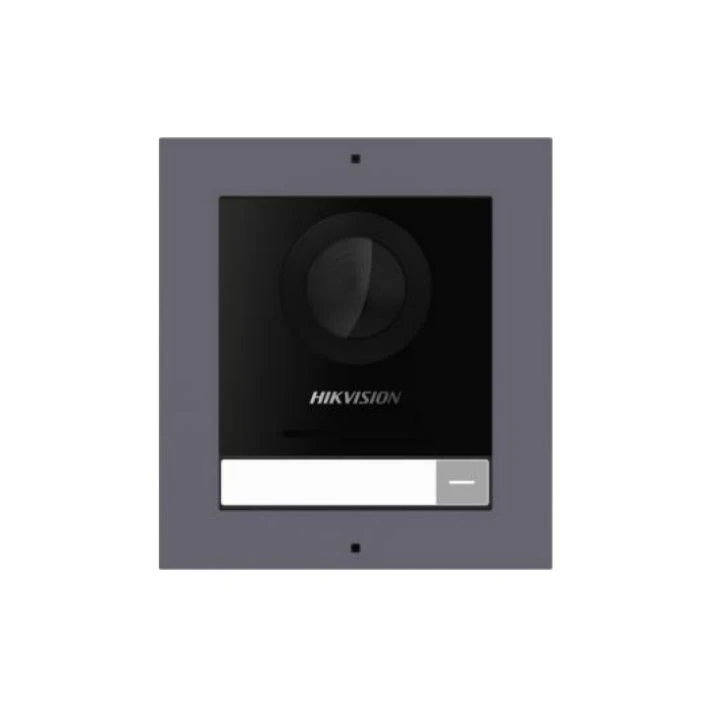

The DS-KD8003-IME1(B)/Surface Door Station offers a Surface Mount Installation design, a 2MP HD Camera, and support for WDR (Wide Dynamic Range), Motion Detection, Noise reduction and Backlight compensation.

General Specs –

– Working Temperature – -40°c ~ 60°c

– Ingress Protection – IP65

– Power Supply – IEEE 802.3 af, Standard PoE, or, 12 VDC

– Power Consumption – <5W

Audio Parameters –

– Audio Input – Built-in omnidirectional Microphone – Output – Built-in Loudspeaker

– Audio Quality – Noise Suppression and Echo Cancellation

– Audio Compression rate – 64 Kbps

– Audio Intercom – Two-way Audio Communication

Device Interfaces –

– RS-485 – 1

– Alarm Input – 4 (2 exit buttons, and, 2 door contacts)

– Debugging port – 1

– TAMPER Switch – 1

– Lock Control – 2 (2 relay, max. 30V, 2A)

Dimensions –
