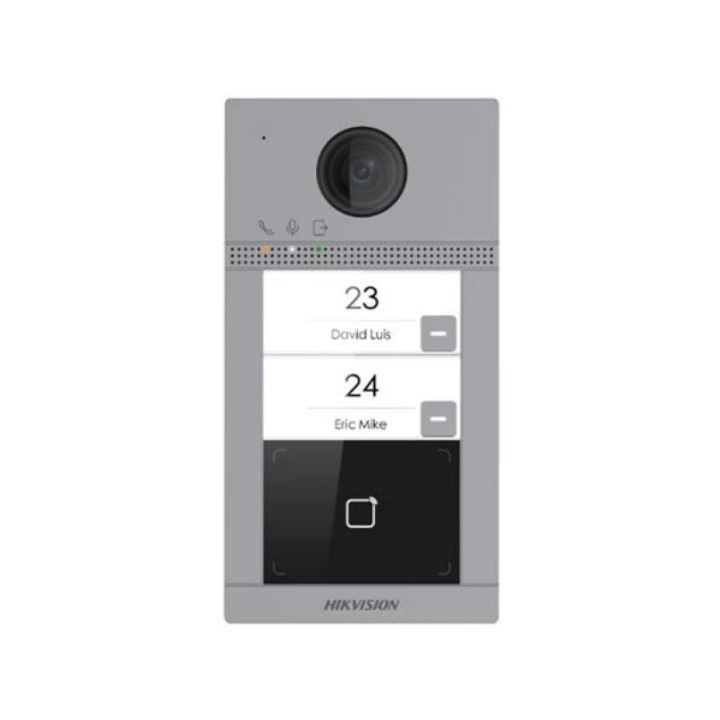

Hikvision DS-KV8213-WME1(C) Villa Door Station

The DS-KV8213-WME1(C) is a Hikvision Door Station designed with an IP65, IK08 Aluminium alloy shell, fit for Outdoor application. This new (C) model also features a selection of design improvements, along with the Door station’s additional features and functionality, making the DS-KV8213-WME1(C) an ideal addition to any Hikvision door entry / Intercom system set-up.

---

Features

System Parameters – Embedded Linux operation system, Embedded MCU processor, 32 M ROM, and, 256 M RAM.

Video Parameters – The DS-KV8213-WME1(C) offers a 2MP HD Camera, with a max. resolution of 1920 x 1080 (640 x 480 for its sub-stream), WDR (Wide Dynamic Range) support, and a Field of View (FOV) of 124° / 75° (horizontal / vertical).
IR Suppliment Lights are also included.

Audio Parameters – The DS-KV8213-WME1(C) also offers impressive audio quality, with a compression bitrate of 64 Kbps, and the inclusion of Noise suppression and Echo cancellation, keeping audio as clear as possible.
Audio Input – Built-in omnidirectional Microphone – Output – Built-in Loudspeaker (with more than 80 dB within 30cm)

Device Interfaces – These include:

– 4 Alarm Inputs, 1 Network Interface, 1 TAMPER Interface, 2 Exit Buttons (Maximum), 2 Lock Control Interfaces, 2 Door Contact Inputs, 1 Power Interface, and, the inclusion of an Internal Mifare Card Reader (and 1 TF card)

---

When compared to its previous model –

	DS-KV8213-WME1(C)	Previous (Non-C) Model
Audio Compression	G.711 U , G.711 A	G.711 U
Capacity (User / Card)	2000 / 10,000	/
WiFi Standard	WiFi 802.11 b/g/n	/
Card Reader Frequency	13.56 MHz	/
TF Card	1 (reserved)	0

---

The DS-KV8213-WME1(C) is designed for Surface Mounting Installation

---

Dimensions
