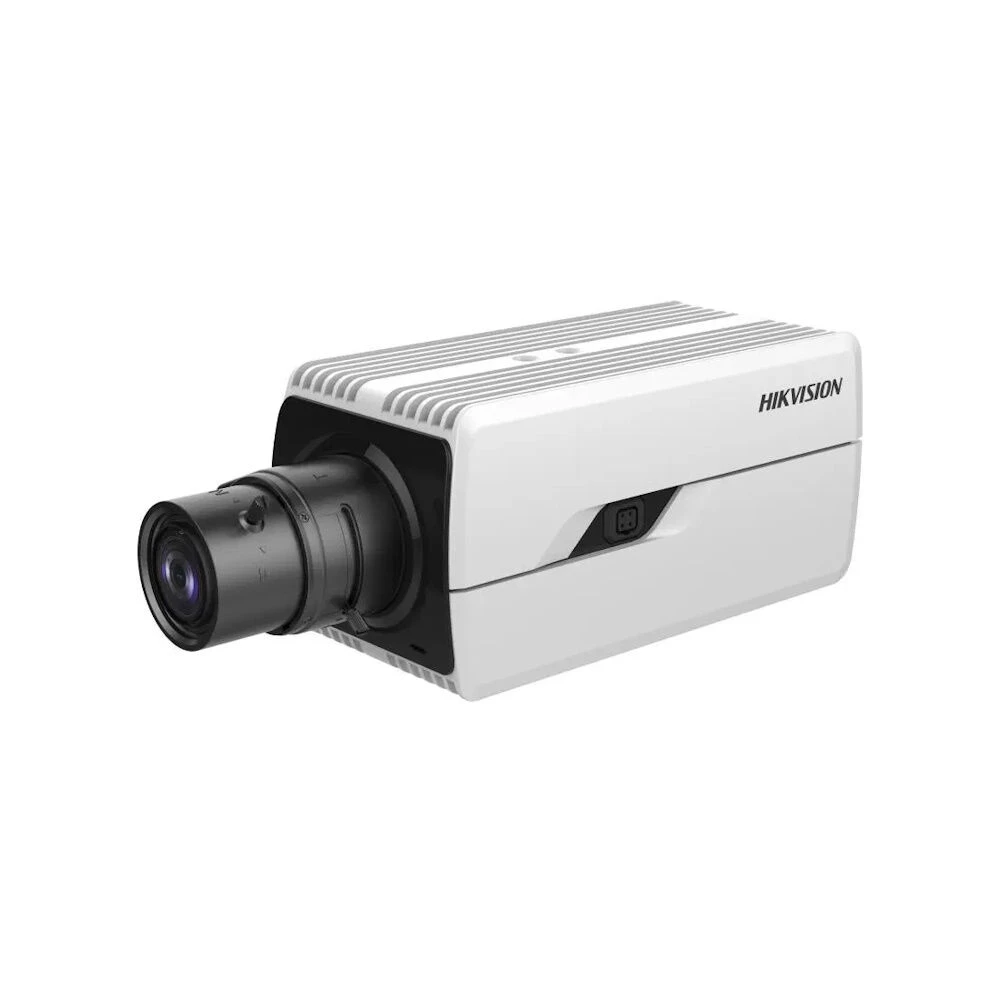

Hikvision IDS-2CD7046G0(-AP)(/F11) 4MP DeepinView Box Network Camera

The iDS-2CD7046G0(-AP)(/F11) is a 4MP Box camera, from Hikvision, released as a part of the DeepinView series, meaning it comes equipped with an impressive selection of deep learning surveillance functions.

---

Events and Alarm Linkage:

Basic Events – Motion detection, Video Tampering alarm, Exception detection (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), Video quality diagnosis.

Smart Events – Line Crossing detection, Intrusion detection, Region Entrance detection, Region Exiting detection, Audio Exception detection, Scene change detection, Defocus detection.

Alarm Linkage – Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger alarm output, Trigger recording, Trigger capture, Audible warning.

DeepinView – Deep Learning Functions:

Multi-Target Type Detection – supports the simultaneous detection and capture of up to 7 human facial features, 13 human body features, and 2 vehicle features.

Face Capture and Face Comparison – detects up to 60 faces simultaneously, and up to 10 face libraries (up to 30,000 faces in each, and 150,000 faces in total). Also supports face library encryption.

Perimeter Protection – supports Line crossing, Intrusion, Region entrance, and Region exiting detection, as well as alarm triggering by specified target types (human and vehicle).

People Counting – supports crossline people counting, display and exporting of people flow data, displays real-time people flow data on screen, uploads face wth background and close-up face picture.

Queue Management – supports up to 8 detection regions, 2 detection modes (regional people queuing-up and waiting time detection), an independent arming schedule and linkage method. It also generates reports to compare the efficiency of different queues.

Heat Map – offers a graphic description of visits in a configured area (calculating the amount of people or amount of dwell time), and supports 2 report types (space heat map and time heat line chart).

Hard Hat Detection – detects up to 30 human targets simultaneously, and supports up to 4 shield regions.

Metadata – supports Intrusion, Line crossing, Region entrance, Region exiting, Face capture, and Multi-target-type detection.

Regional People Counting – supports up to 8 detection regions, 3 detection modes (people density detection, number of people exception detection, and waiting time exception detection), real-time search of number of people, people density detection, and independent arming schedule / linkage method.

On/Off Duty Detection – supports up to 8 detection regions, 2 detection modes (absence detection and on/off duty detection), and parameter settings (person on duty and absence detection).

---

Interfaces:

---

Dimensions:

---
