Hikvision IDS-2CD7347G0-XS 4MP DarkFighterS DeepinView Fixed Turret Network Camera

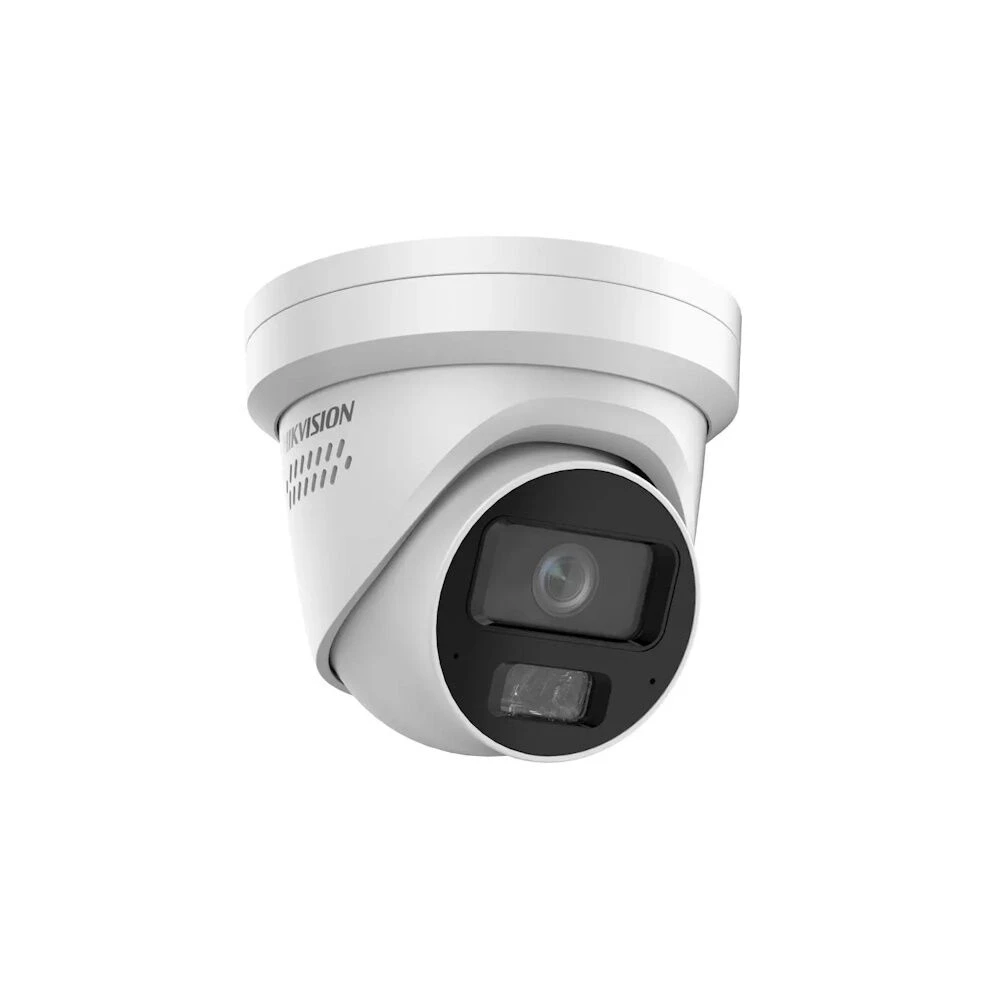

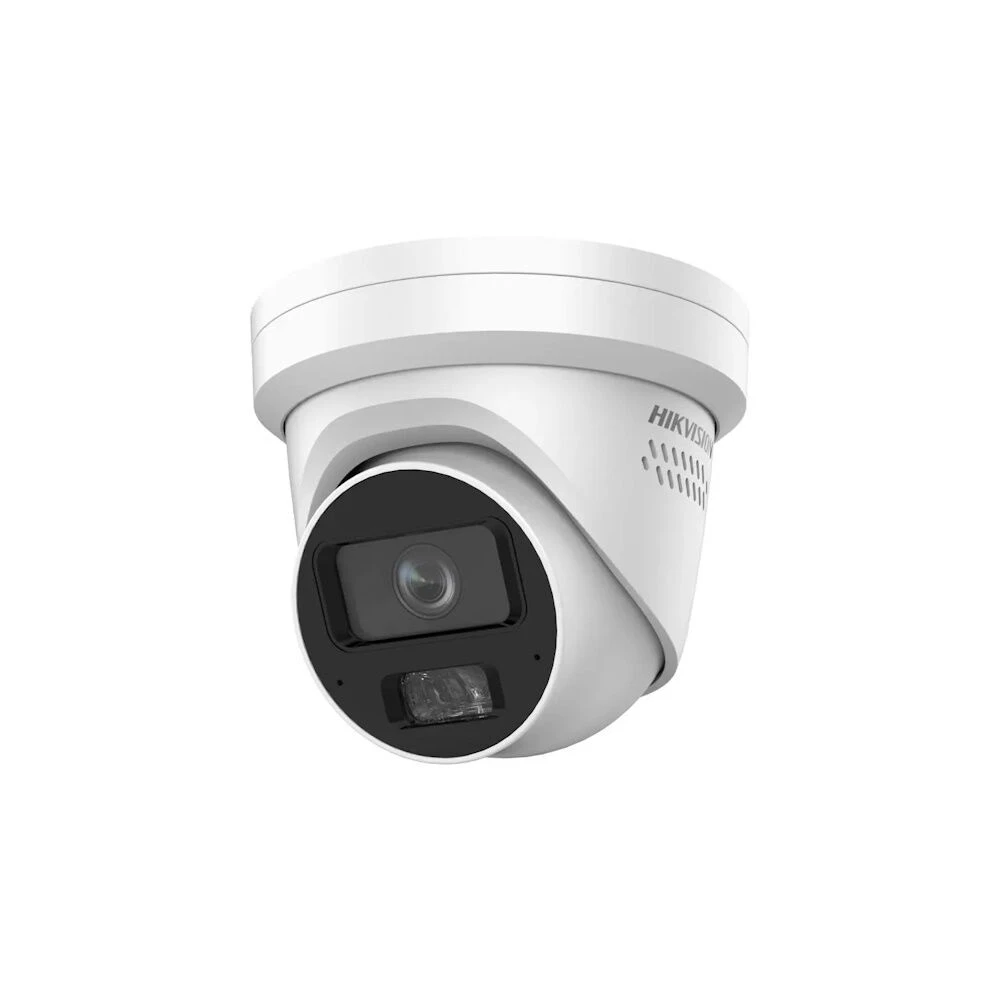

The iDS-2CD7347G0-XS is a 4MP resolution Turret camera, from Hikvision, designed as part of the DeepinView series, equipped with DarkFighterS technology and Deep Learning functions.

DarkFighterS – Is a Hikvision technology designed to improve a camera’s low-light performace. With DarkFighterS the iDS-2CD7347G0-XS is capable of excellent visibility and image quality in scenes with challenging lighting conditions.
This is further improved by the camera’s selection of supported image enhancement technologies. These include; BLC (backlight compensation), HLC (highlight compensation), 3D DNR (3D noise reduction), defog, WDR (wide dynamic range), and EIS (electronic image stabalisation)

---

Events and Alarm Linkage:

Basic Events – Motion detection, Video Tampering alarm, Video Quality diagnosis, Exception detection (network disconnected, IP address conflict, Illegal login, Abnormal restart, HDD full, HDD error, Vibration detection)

Smart Events – Scene Change detection, Audio Exception detection, Defocus detection.

Alarm Linkage – Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger alarm output, Trigger recording, Trigger capture, Audiable warning.

Deep Learning Functions:

Face Capture – Detects up to 60 faces simultaneously. Supports swing left and right (from -60° to 60°), tilt up and down (from -30° to 30°), as well as, upload of face with background and close-ups.

People Counting – Supports crossline counting, display, and export of people-flow data (entering and exiting – data stored in the flash). Real-time people flow is displayed on screen, and supports real-time uploading by statistic cycle.

Queue Management – Supports up to 8 detection regions, an independent arming schedule, and linkage method. Supports 2 detection modes (includes; regional people queuing up, waiting time detection) and generates reports to compare the efficiency of different queues.

Heat Map – A graphic description of visits calculating the amount of people or dwell time in a configured area. Two report types are available; Space heat map and Time heat map line chart.

Perimeter Protection – Line crossing, Intrusion, Region Entrance, and, Region Exiting detection. Supports alarm triggering by specified target types (human and vehicle)

Metadata – Intrusion, Line crossing, Region Entrance, and, Region Exiting detection.

On/Off Duty Detection – Supports up to 8 detection regions, and independent arming schedule and linkage method. It also supports 2 detection modes (Absence detection and On/Off Duty detection) and parameter settings (Person on duty and Absence duration)

---

DORI stands for Detect, Observe, Recognise & Identify.

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
2.8mm	61.5m	24.4m	12.73m	6.2m
4mm	72.1m	28.6m	14.4m	7.2m

---

Dimensions:

---
