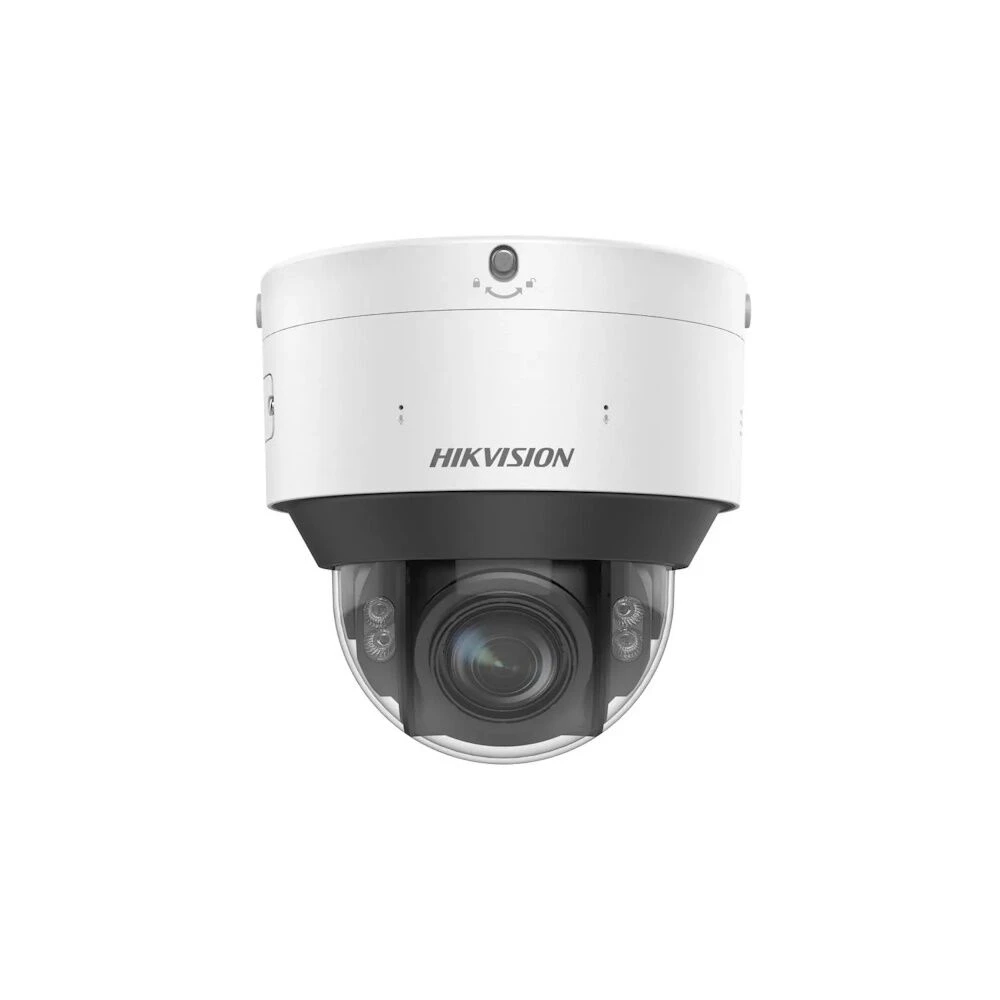

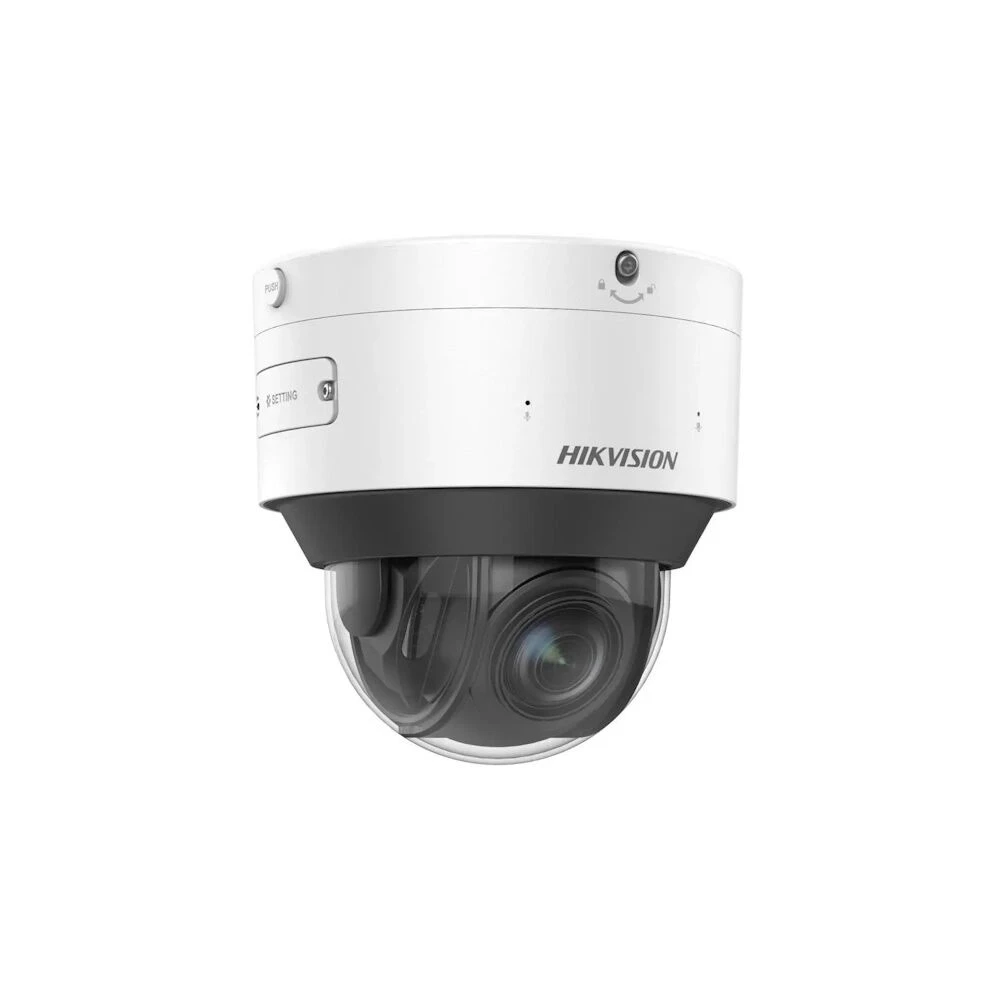

Hikvision IDS-2CD7547G0-XZHS(Y) 4MP DarkFighterS DeepinView Outdoor Motorised Varifocal Dome Camera

The iDS-2CD7547G0-XZHS(Y) is a 4MP resolution Dome camera, from Hikvision, designed as part of the DeepinView series, equipped with DarkFighterS technology and Deep Learning functions.

DarkFighterS – Is a Hikvision technology designed to improve a camera’s low-light performace. With DarkFighterS the iDS-2CD7547G0-XZHS(Y) is capable of excellent visibility and image quality in scenes with challenging lighting conditions.
This is further improved by the camera’s selection of supported image enhancement technologies. These include; BLC (backlight compensation), HLC (highlight compensation), 3D DNR (3D noise reduction), defog, WDR (wide dynamic range), and EIS (electronic image stabalisation)

---

Events and Alarm Linkage:

Basic Events – Motion detection, Video Tampering alarm, Exception detection (network disconnected, IP address conflict, Illegal login, Abnormal restart, HDD full, HDD error), Video Quality diagnosis, Vibration detection.

Smart Events – Line crossing detection, Intrusion detection, Region Entrance detection, Region Exiting detection, Audio exception detection, Scene change detection, Defocus detection.

Alarm Linkage – Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger alarm output, Trigger recording, Trigger capture, Audiable warning.

Deep Learning Functions:

Multi-Target-Type Detection – Supports simultaneous detection and capture of human body, face, and vehicle. Can detect up to 7 face features, 13 human body features, and 2 vehicle features.

Face Capture – Detects up to 60 faces simultaneously.

Face Comparison – Supports up to 10 face libraries, with up to 30,000 faces per library. 150,000 faces in total. It also supports face library encryption.

People Counting – Supports crossline people counting, display, and exporting of people-flow data (entering and exiting – data stored in the flash). Real-time people flow data is displayed on screen.

Queue Management – Supports up to 8 detection regions, an independent arming schedule, linkage method, and 2 detection modes (regional queuing up and waiting time detection). It also generates reports to compare the efficiency of different queues, and displays a queue’s changing status.

Heat Map – A graphic description of visits, calculating the amount of people or dwell time in a configured area. Supports 2 report types (Space heat map and Time heat map line chart).

Hard Hat Detection – Detects up to 30 human targets simultaneously, and supports up to 4 sheild regions.

Metadata – Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Face capture, Multi-target-type detection.

Regional People Counting – Supports up to 8 detection regions, 3 detection modes (people density detection, number of people exception detection, waiting time exception detection), and, parameter settings (alarm times per exception, alarm interval, first alarm delay).

On/Off Duty Detection – Supports up to 8 detection regions, 2 detection modes (absence detection, on/off duty detection), and, parameter settings (person on duty, absence duration)

---

DORI stands for Detect, Observe, Recognise & Identify.

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
Distance (Wide)	63.4m	25.2m	12.7m	6.3m
Distance (Tele)	140.7m	55.8m	28.1m	14.1m

---

Dimensions:

---
