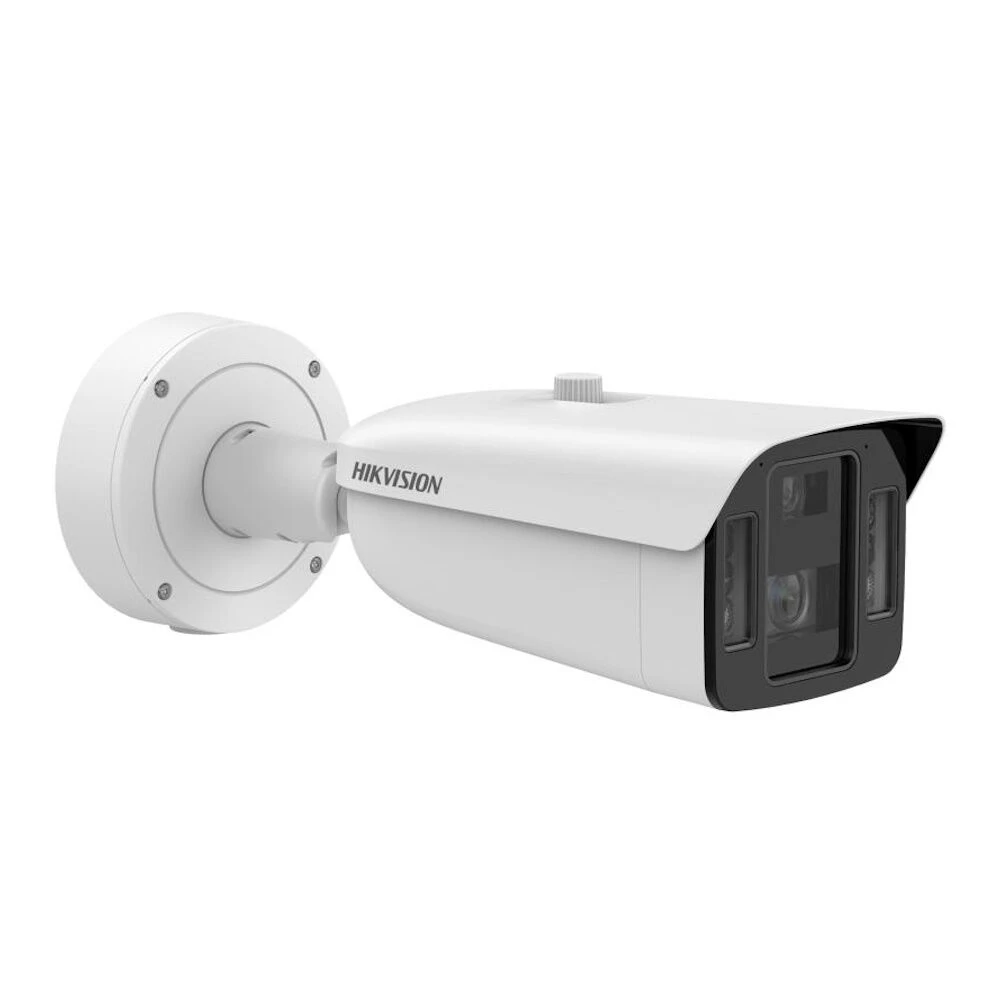

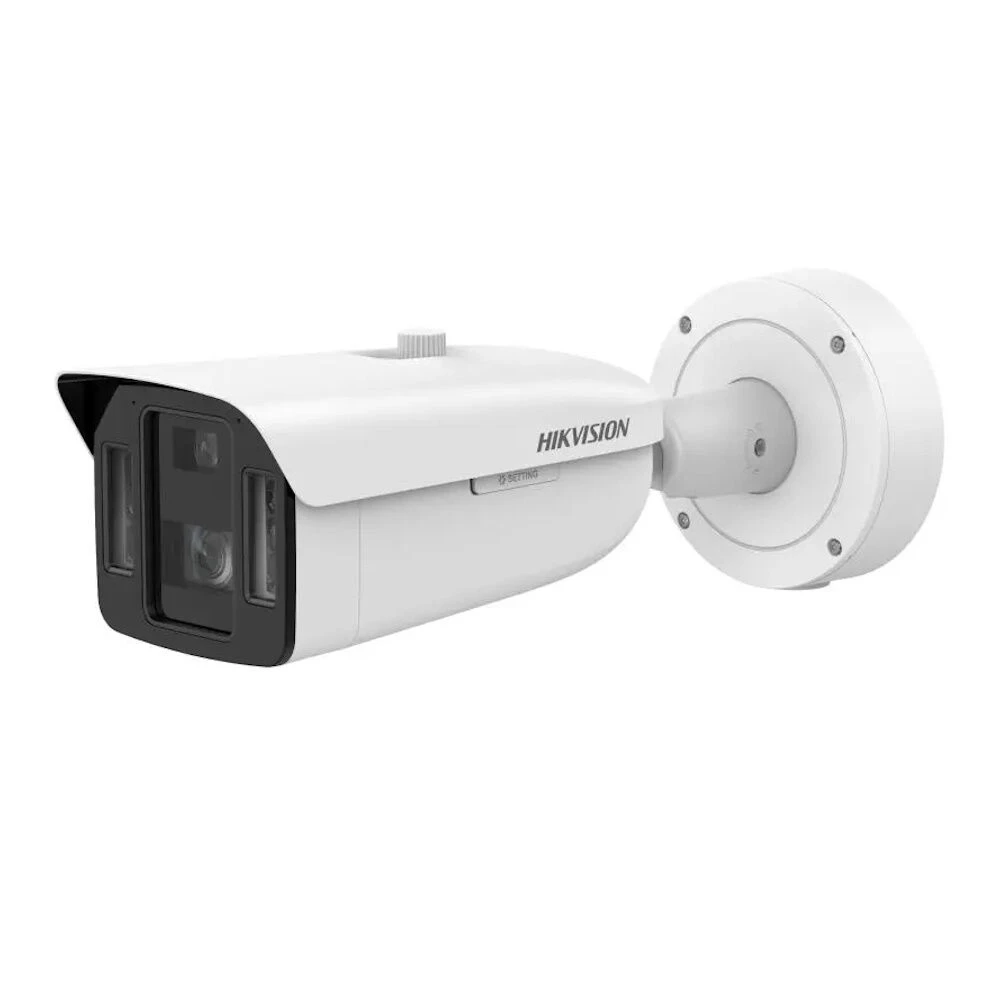

Hikvision IDS-2CD8A86G0-XZ(H)S(Y) 4K DeepinView Multi-Sensor Bullet Camera

The iDS-2CD8A86G0-XZ(H)S(Y) is a Multi-Sensor Bullet Camera that provides 8MP resolution in Channel 1 and 4MP resolution in Channel 2. Channel 1 offers a detailed view and a variety of intelligent algorithms such as Automatic Number Plate Reconigiton (ANPR). On the other hand, Channel 2 offers 24/7 colourful imaging with ColorVu technology and DeppinView Perimeter Protection. This camera is also equipped with Hybrid illumination and DarkFighter technology, giving excellent low light performance.

---

Events and Alarm Linkage:

Basic Events – Motion detection, Video Tampering alarm, Exception detection (network disconnected, IP address conflict, illegal login, HDD full, HDD error), Video Quality diagnosis, Vibration detection.

Smart Events – Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Scene change detection, Audio exception detection, Defocus detection, Audio exception detection

Alarm Linkage – Upload to FTP/NAS/memory card, Notify surveillance center, Send Email, Trigger Alarm output, Trigger recording, Trigger capture, White light flashing

DeepinView – Deep Learning Functions:

Multi-Target Type Detection – Channel 1 only – Supports simultaneous detection and capture of human body, face, and vehicle. Can detect up to 7 face features, 13 human body features, and 2 vehicle features. Can detect up to 60 targets simultaneously.

Face Capture – Channel 1 only – Detects up to 120 faces simultaneously.

Face Comparison – Channel 1 only – Supports up to 10 face libraries, with up to 30,000 faces per library. 150,000 faces in total. It also supports face library encryption.

Perimeter Protection – Channel 1 and 2 – Supports Line crossing, Intrusion, Region entrance, and Region exiting detection, as well as alarm triggering by specified target types.

Road Traffic and Vehicle Detection – Channel 1 only – Can achieve plate capture and recognition and supports Allowlist and Blocklist (up to 10,000 records). Supports vehicle attribute detection (including vehicle type, colour etc.). Licence plate recognition ≥98%.

---

DORI stands for Detect, Observe, Recognise & Identify.

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

	Detect	Observe	Recognise	Identify
Channel 1 (wide/tele)	241.4m/620.7m	95.8m/246.3m	48.3m/124.1m	24.1m/62.1m
Channel 2	77m	30.5m	15.4m	7.7m

---

Dimensions:



---
