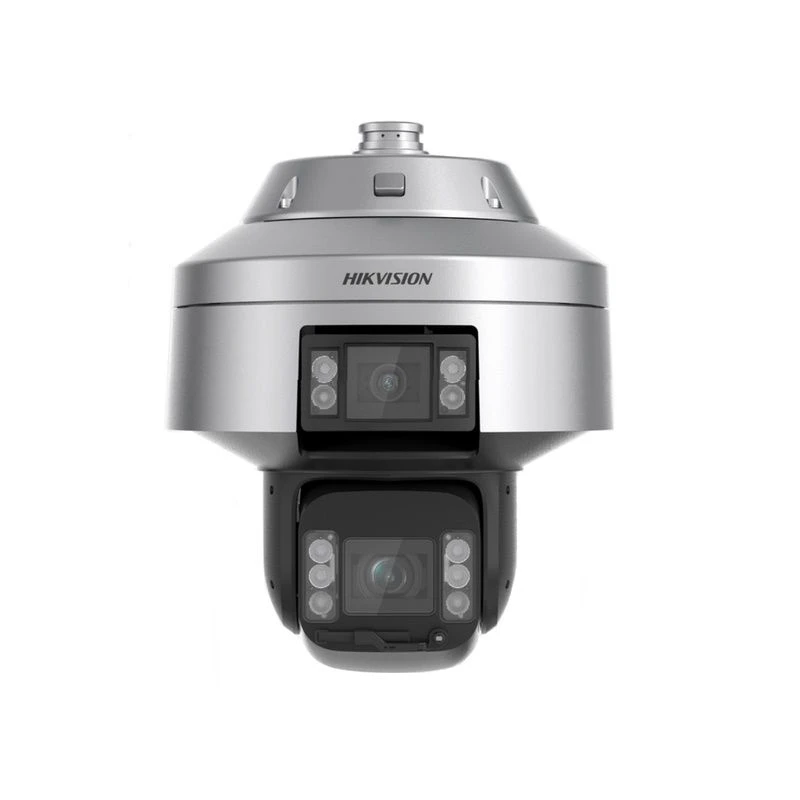

Hikvision IDS-2SK7184MXS-D 4K 5X TandemVu Smart-Linkage PTZ Camera

The iDS-2SK7184MXS-D 4K resolution, Smart-Linkage PTZ Camera, is a part of Hikvision’s new TandemVu camera range, exploring the capabilities of combining PTZ and bullet lenses, to allow for multiple lenses in one unit, a cost effective choice for anyone looking for effective outdoor security.

Hikvision’s TandemVu range allows users to hold panoramic views (using the bullet channel) even during pan, tilt, and zoom manouvers (using the PTZ channel), so even when getting a close up of the scene, you can feel confident that you will always be aware of the bigger picture, keeping everything as secure as possible.

With an Ingress protection of IP66, the iDS-2SK7184MXS-D is an ideal choice for outdoor security, particularly in large areas, such as; intersections, T-junctions, squares, borderlines and parks. It should also be noted, that with Day and Night functionality (and a scheduled switch between modes) users will be able to see crystal clear, full-colour footage, no matter the time of day.

The iDS-2SK7184MXS-D also offers a range of Smart features, including:

– Basic Events: Audio exception, motion detection, alarm input, alarm output, and video tampering alarm.

– Smart Events: The panoramic channel arms the detection area and links the PTZ channel to track targets and output alarms. Events include; Intrusion detection, line crossing detection, region entrance, and region exiting detection.

– Adjustable Pan and Tilt: For both channels, PTZ (pan, 0 ~ 330°, tilt, -10° ~ 90°) and Panoramic (pan, 0 ~ 360° endless, tilt, 0 ~ 30°)

– Smart Tracking: Panorama tracking, event tracking and Tracking Takeover (when the target moves out of the panoramic view, the PTZ channel continues to track the target in a larger area)

– Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, and upload to FTP.

– Feature Abstraction: Face, human body, and vehicle feature abstraction.

– Multi-Target-Type Detection: Supports face, human body, and vehicle capture. Track and grade the target, output of best capture image, face and human body feature analysis, modeling and comparison.

DORI stands for Detect, Observe, Recognise & Identify.

The DORI Distance provides users with a general overview of the camera’s capability to distinguish people or objects within its field of view.

DORI	Detect	Observe	Recognise	Identify
Definition	25 px/m	63 px/m	125 px/m	250 px/m
Distance (Tele)	662.1m	262.7m	132.4m	66.2m

---

Dimensions
