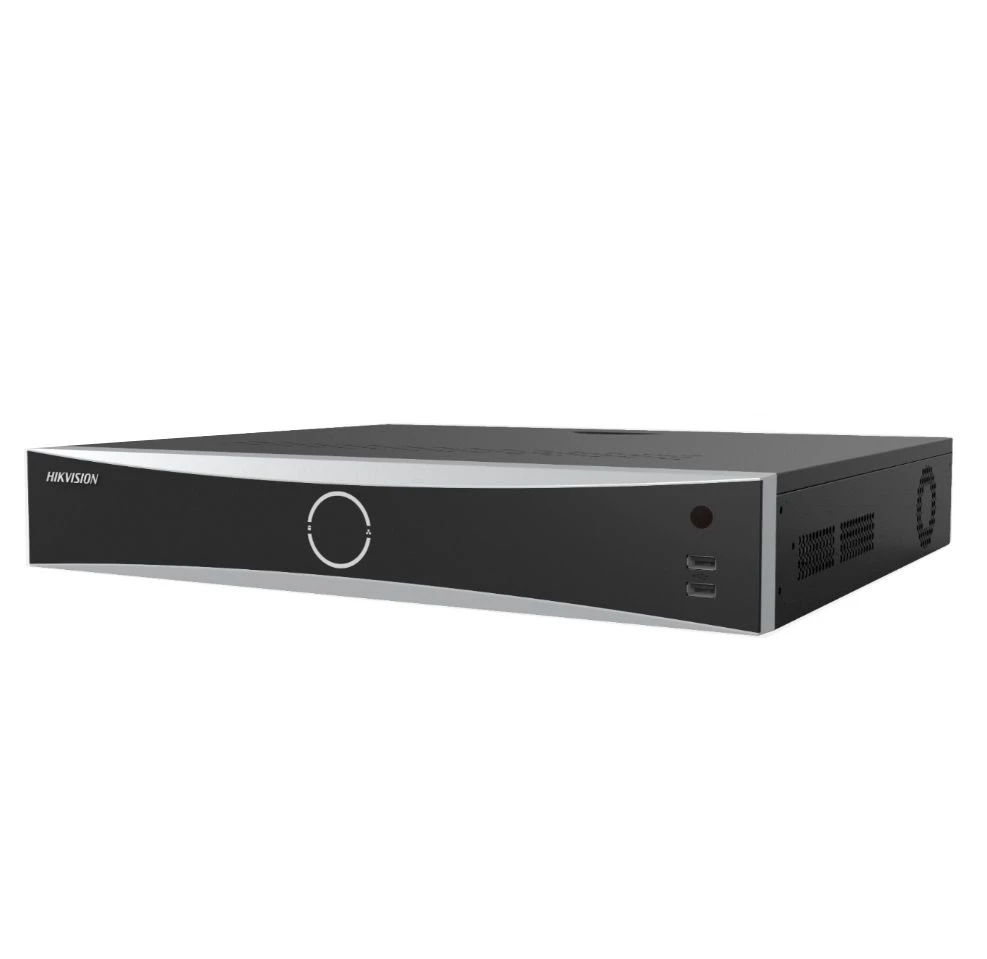

Hikvision IDS-7732NXI-I4/16P/X 32-channel 1.5U 16 PoE 4K DeepinMind Network Video Recorder

The iDS-7732NXI-I4/16P/X is a 32-channel Network Video Recorder (NVR) with 16 port PoE. As a part of Hikvision’s DeepinMind series, it comes equipped with ANPR and Facial Recogntion support, 16-channel synchronous playback, a variety of Video analytics (VCA), and effective H.265+ compression technology.
With these features and more, the iDS-7732NXI-I4/16P/X has a lot to offer any user, making it an ideal addition to any Hikvision video security system.

---

Facial Recognition and Face Picture Comparison

Equipped to model and analyse face images captured by connected IP cameras, the iDS-7732NXI-I4/16P/X offers support for the use of Facial Recognition and Face Comparison technologies. This is a feature that can add an extra layer of effective security measures to any video security system, allowing for users to configure a face picture library, so alarms can be set to react to strangers entering your protected premises.

– Face Picture Library – Support for up to 16 libraries, with up to 100,000 pictures in total (each image is <4MB, total capacity is <20GB)

– Face Picture Comparison – Features support for face image comparison alarm, working on up to 16-channels

– Performance of Face Detection / Analytics – Supports 8-channel 8MP human face capture, using supported HD Network cameras

---

Perimeter Protection

The iDS-7732NXI-I4/16P/X adopts Deep Learning algorithms to reduce false alarms (often caused by tree braches, leaves, shadow movement, light, vehicles, animals, or other non-human objects) with its ability to effectively classify between objects and humans.

---

Video Structualisation

DeepinMind NVRs also make use of Video Structualisation technology, extracting face picture, human body and vehicle features from live videos, allowing for users to retrieve and use necessary footage/images.

– Structured Analysis – Supports up to 8-channel 2MP live video structuralisation analysis

– Face Picture Comparison – Includes support for 8-channel picture comparison alarm

---

PoE Specs

As an I4/16P/X model, this DeepinMind NVR also offers Power over Ethernet (PoE) functionality, with 16 PoE ports (RJ-45 10/100 Mbps self-adaptive Ethernet Interface) and a power consumption of <200W

---

Additional Features, Specs, and supported Video Analytics

The iDS-7732NXI-I4/16P/X also features a selection of other impressive specs and features, each included in the DeepinView NVR design to help offer user’s the most effective and efficient Network Video Recorder solution possible. These Specs / Features include:

– H.265+ compression – to effectively reduce storage space (by up to 75%)

– Stream over TLS encryption – to provide a more secure stream transmission service

– Provides Independent HDMI and VGA outputs – HDMI1 output at up to 4K (3840×2160), HDMI2 output at up to 1920×1080, and VGA output at up to 1920×1080

– VCA (Video Content Analytics) / Camera Smart Functions – supports VCA detection (motion, line-crossing, and intrusion), Heat map, ANPR (automatic number-plate recognition), and People counting

– Power Supply – 100 to 240V AC, 50 ~ 60Hz, with a power consumption (without HDD) of <30W

---

Physical Interface:

Dimensions:
