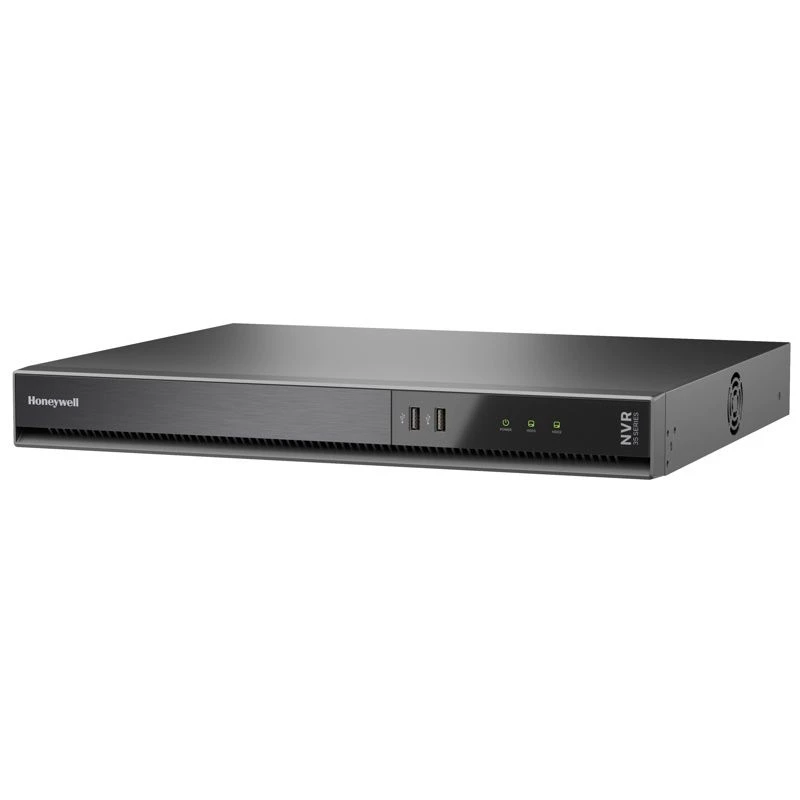

Honeywell HN35160200 16-Channel Network Video Recorder

The HN35160200 is a 16-channel Network Video Recorder from Honeywell, offering 8MP (4K Ultra HD) Image resolution, and NDAA compliance. As a part of Honeywell’s 35 series, users should also note that the HN35160200 is designed for use with 35 series cameras.

– Storage Capabilities: Built with 10TB of internal storage, and supporting 2 HDDs (expandable up to 20TB) users are offered ideal storage capabilities for their video surveillance system, that can be increased as their storage needs grow.
However, users must note that this NVR is a 0TB model. Hard Drives must be purchased seperately.

– Image quality: With a max. resolution of 3840 x 2160, and a framerate of up to 30fps, the HN35160200 is capable of 4K, Ultra HD image quality, to compliment 8MP 35 series cameras. This works alongside the NVRs high decoding capability and H.265 HEVC smart codec compression, to keep surveillance footage clear and detailed, with efficient performance.

---

Supported Cameras and Surveillance Features

– Supported Cameras: Designed for use with Honeywell 35 series cameras, the HN35160200 supports the following IP camera models:

35 series Micro-dome – HC35W25R3 | Mini-domes – HC35W45R2, HC35W48R2, HC35W45R3, HC35W48R3 | Bullets – HC35WB5R2, HC35WB8R2, HC35WB5R3, HC35WB8R3 | Ball (Turrets) – HC35WE5R2, HC35WE8R2, HC35WE5R3, HC35WE8R3 | PTZ – HC35WZ5R30
For more information on these cameras please see their linked product pages

– Supported Events and Alarms: Equipped with support for both System and Camera Events / Event actions, the HN35160200 offers impressive video surveillance capabilities, ideal for any security system setup.

Camera Events – Alarm In, Motion detection, Camera disconnected, Tampering detection, Smart Motion detection, Intrusion, Crowd detection, and, Multi-loitering
System Events – Alarm In/Out, Disk failure, and, Disk full

Event Action – Video recording, Send Email, Buzzer, FTP, Alarm Out (camera / system), PTZ preset, and, Send video to full screen

---

System Security

– Keep your System Secure: Designed with end-to-end Encryption (with video streaming encrypted – from 35 series cameras to NVR / between NVR and web client/viewer/mobileApp) the HN35160200 is made to keep footage, and other stored data, as secure as possible.
For more Information from Honeywell on the Importance of Cybersecurity, please see the following document – Honeywell Cybersecurity

---

System Diagram:

---

Dimensions:
