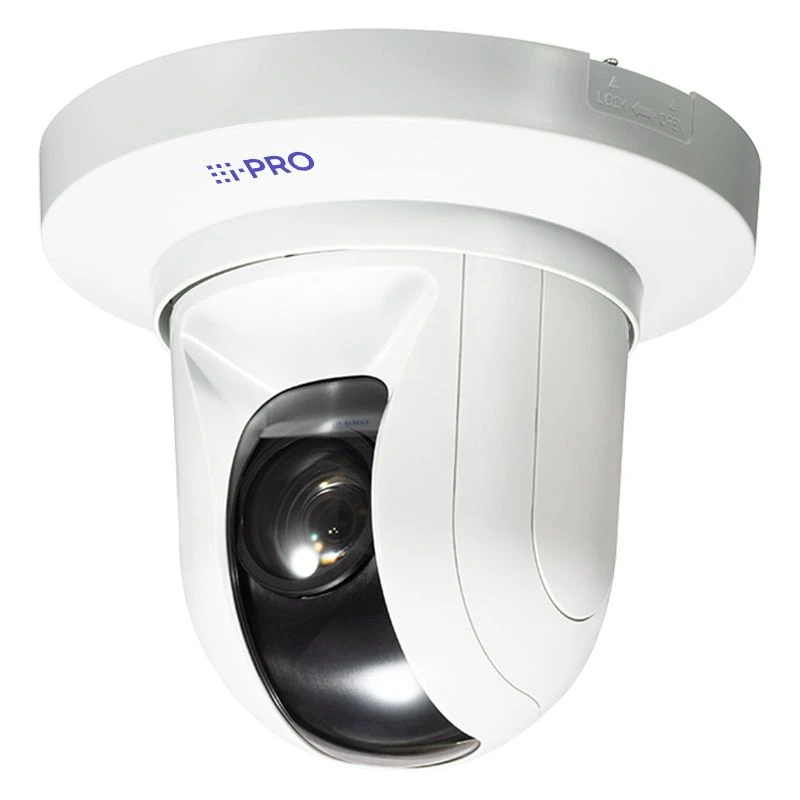

I-Pro WV-U61301 Indoor PTZ Network Camera

The WV-U61301 is part of the U-series which has been designed to provide users with PTZ cameras that meet top security certifications (FIPS 140-2 level 3) whilst providing a unique blend of imaging performance, reliability and affordability.

The camera is equipped with a wide range of high-quality features, including i-Pro’s original intelligent auto function and super dynamic function which enables the camera to produce clear images even in harsh environments.

The WV-U61301 has two options:

– WV-U61301-Z1: 4.7 ~47mm 10x zoom lens (6.7° ~ 62° horizontal field of view)

– WV-U61301-Z2: 4 ~ 84.6mm 21x zoom lens (3.7° ~ 77° horizontal field of view)

Both units feature a pan range of 0 -+ 350° and a tilt range of 0 -+ 90° enabling users to view vast areas within their scene. Designed for indoor use with its discreet look, this camera can be seamlessly integrated in a range of applications including schools, offices, shops, shopping centres etc.

---

DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:

DORI	Detect	Observe	Recognise	Identify
4.7 ~ 47mm	64.2 ~ 656.0m	25.7 ~ 262.4m	12.8 ~ 131.2m	6.4 ~ 65.6m
4 ~ 84.6mm	51.9 ~ 1293.8m	20.8 ~ 517.5m	10.4 ~ 258.8m	5.2 ~ 129.4m

---

---
