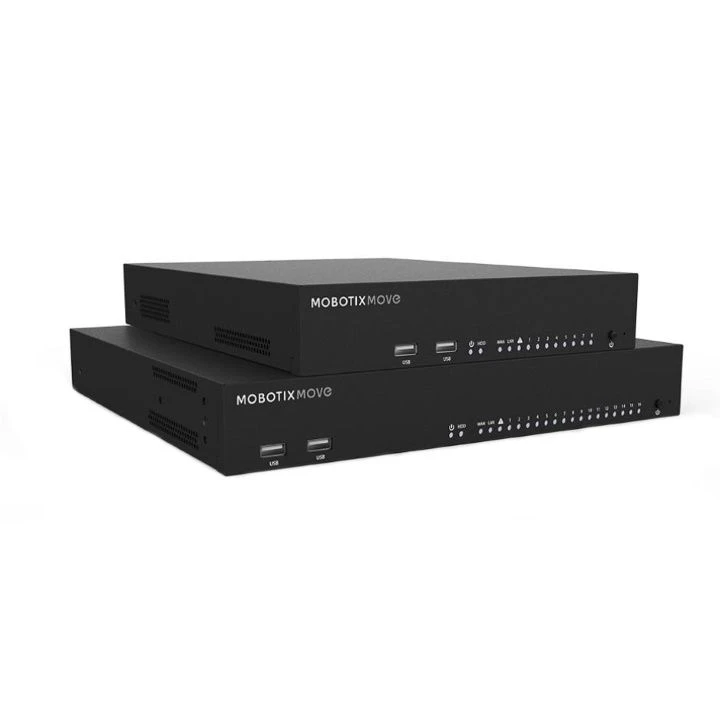

Mobotix Move MX-S-NVR1A-16-POE 16 Channel Network Video Recorder

The Mobotix Move NVR series including MX-S-NVR1A-16-POE has been specifically designed to support the Mobotix Move series of IP cameras with powerful recording by deep integration protocols out of the box.

The MX-S-NVR1A-16-POE has an integrated 16 port PoE switch which allows users to directly connect cameras to the NVR without the need for an additional power supply. The unit is also equipped with M.2 (M-Key) and iSCSI communication interfaces providing seamless adaptation to the requirements of the installation.

The web management interface allows users to monitor and configure PoE power consumption, network connection quality and control the PoE power support of ONVIF S conformant third-party cameras.

The MX-S-NVR1A-16-POE is recommended for use in numerous applications including shops, restaurants, small offices, or homes. All connected cameras are supported by the integrated, cost- and license-free MOBOTIX MOVE NVR video management software, which is tailored to the Mobotix Move cameras.

Benefits:

– Plug and Play
– No specialised video knowledge is required for use
– Direct connection of up to two high-resolution displays, keyboard, mouse and joystick
– One or two additional HDDs per NVR required for storage functionality
– No recurring costs

Users can download the free-of-charge Mobotix Move NVR app to display and control all Mobotix Move cameras connected to the MX-S-NVR1A-16-POE (Live View, Playback View, PTZ control). The connection to the MOBOTIX MOVE NVR and the cameras is established locally via an additional WLAN connection.

---

Model	Max. Power Consumption
MX-BC1A-2-IR	5.6W
MX-BC1A-4-IR	13.68W
MX-VB2A-2-IR-VA	13W
MX-VB1A-5-IR-VA	13W
MX-SD1A-330	25.4W
MX-SD1A-340-IR	44W
MX-VD1A-2-IR	12.25W
MX-VD1A-4-IR	13.68W
MX-VD2A-2-IR-VA	13W
MX-VD1A-5-IR-VA	13W

---
