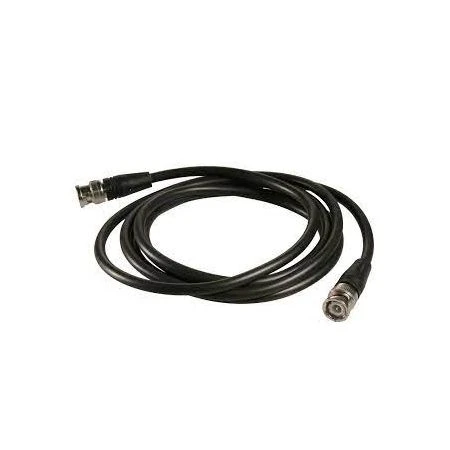

Pelco CBL2M-1001 2m HD BNC Cable – For Sarix Modular Cameras

Original price was: $57.60.Current price is: $40.32.

SKU: CBL2M-1001 Categories: Accessories, Chevron-right Cables and Plugs

7 days return and exchange
Buy with Confidence, Get Quality
Quick responses, top-notch service.
Fast, friendly, always here to help.

Description
Reviews (0)

The CBL2M-1001 is a HD BNC cable designed for use in Pelco’s Sarix Modular Camera system, connecting supported Imager modules to the Main Processor unit.

HD BNC cables are capable of transmitting high resolution video, helping the Sarix Modular Camera to achieve the best image quality possible, while simultaneously powering its connected Imager module. Users should note that one cable is needed for each Imager, and that the Main Unit supports up to 2 modules.

It should also be noted that, for optimal performance, the HD BNC cable should never be bent or curved any less than a 12.7mm radius circle (as depicted above)

How to equip
with Sarix Modular Main Processor unit and Imager modules

Cable with Main Processor Unit

– Place unit on flat surface and connect the required cables – one BNC for each Imager that is being installed (supports 2 max.)

– The Sarix Modular camera system offers a choice of 3 Imager modules – a 3MP Right-Angle Pinhole lens Imager, a 3MP Micro-Bullet Imager, and a 5MP Micro-Bullet Imager

Cable with Micro-Bullet Imager module

– If using the L-bracket mounting adapter (optional), plug in the BNC cable once the Imager has been mounted, and connect to Main Unit

– One connector on each HD BNC is IP66 rated, to allow for protection against dust and water. This connector should only be used with the Micro-Bullet Imager.

The IP66 end should go into the Imager, and the non-IP rated should be used to connect it to the main unit (this should be installed in a dry and secure location)

Cable with Right-Angle, Pinhole Lens Imager module

– Plug in the BNC cable after mounting, and connect to the main unit. Equip the cable as depicted.

– Please note that the IP66 connector is not necessary for this Imager, as the Right-Angle Imager is not IP66 rated itself – is suited only for Indoor application

For more information about the different modules listed here, please see their respective Product Pages – found on this page under ‘Related Products’

Dimensions
Imager Modules with Minumum Cable Length
