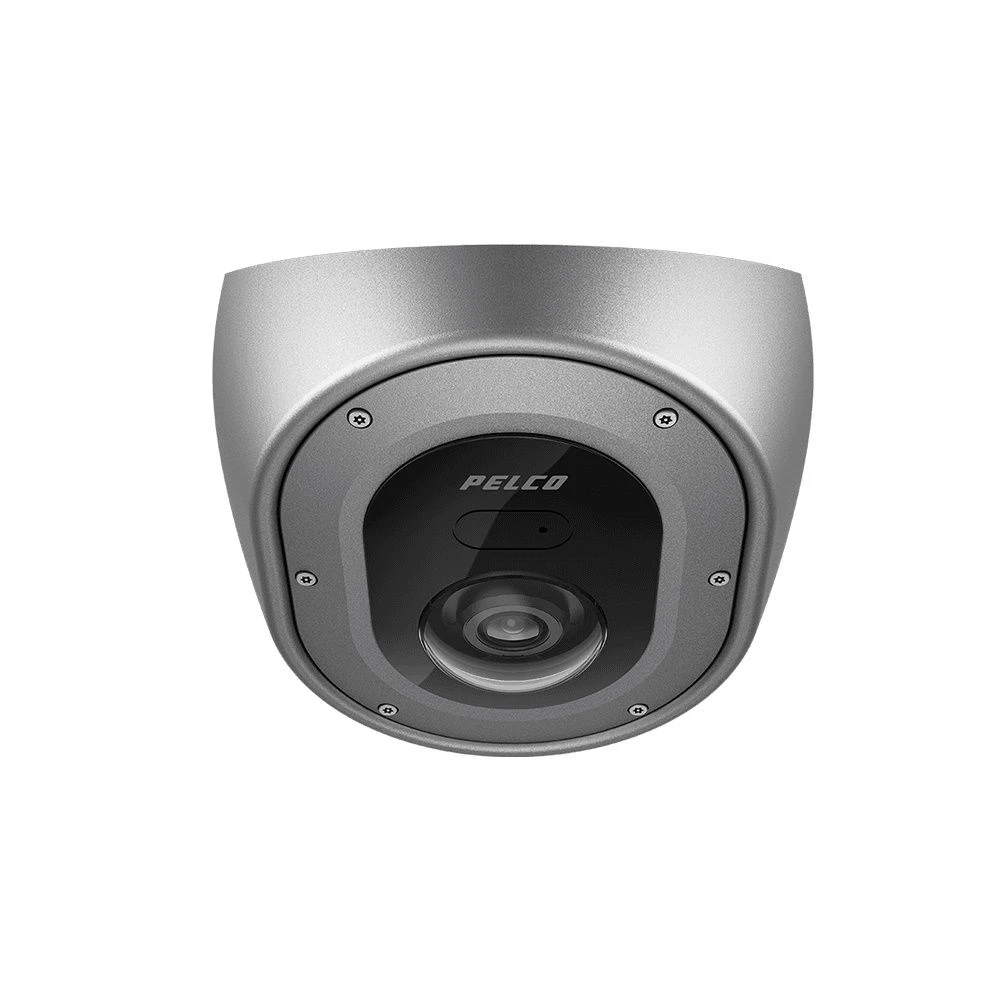

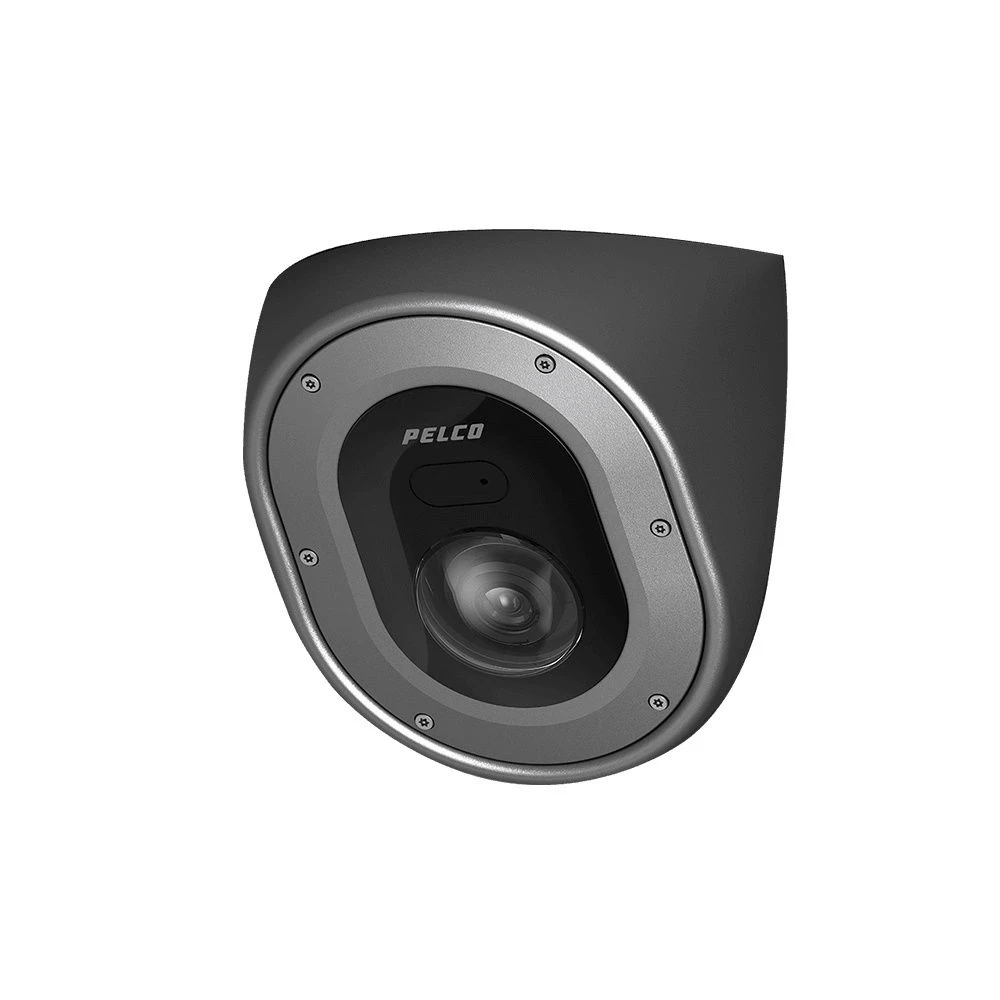

Pelco IBD532-1SS 5MP Corner Mount Camera – Stainless Steel

The IBD532-1SS is a 5MP Corner Mount Camera, from Pelco’s Sarix Corner Camera 3 series, with a fixed 2.3mm lens, and stainless steel construction.
As a Sarix Corner 3 Camera, the IBD532-1SS offers users a range of effective features, unique to the corner mount design, that are ideal for specific applications / environments. These include:

Wall-to-Wall and Floor-to-Ceiling coverage, for full area surveillance ideal for use in high-security environments.

Audio Recording capabilities, using a built-in microphone (can be disabled if desired) for recording evidence and to assist with situational awareness

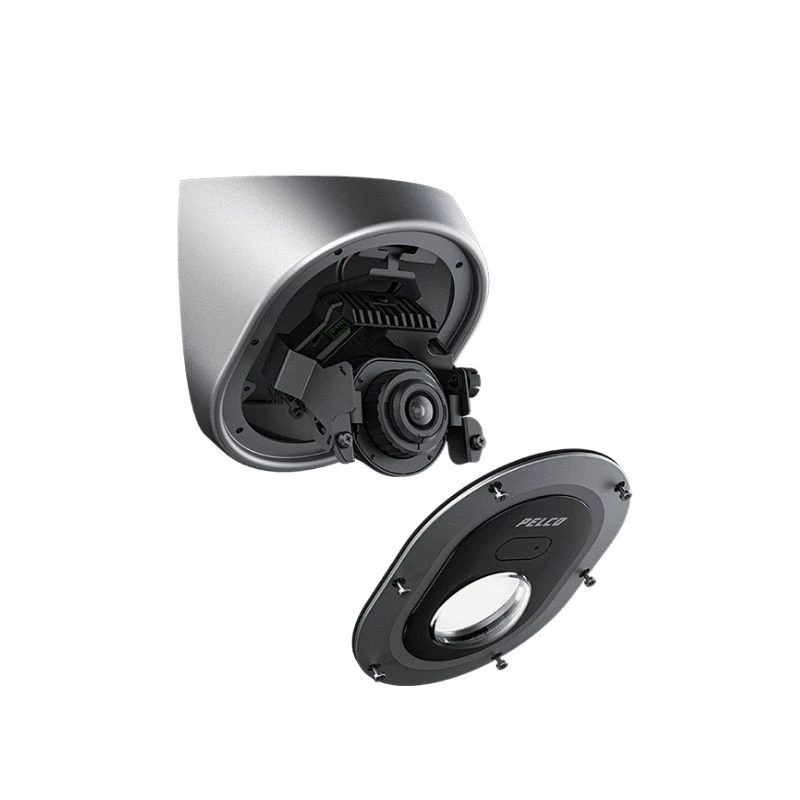

Designed for Easy Installation and Repair, with a water-resistant construction (making it easy to clean) and simple to repair parts (compatible with conventional tools), so users can minimise downtime.

Vandal Resistant (IK10), equipped for impact up to 50 joules, and a no-grip design, capable of withstanding even the harshest attempts to damage, detach, or interrupt surveillance. Ideal for any application where there is a high threat of vandalism (such as; schools, prisons, hosptials, etc)

Water Resistant and Easy to Clean, IP66/67 rated design, and NEMA 4X stainless steel enclosure (for protection against water and windblown dust). Allows for both Indoor and Outdoor use.

Anti-Ligature design, to meet requirements in correctional or healthcare environments.

Example Application Environments

Prisons Designed with Anti-Ligature and Vandal Resistance, the IBD532-1SS is well equipped to streamline the monitoring of inmates, provide optimal situational awareness, and offer features needed in this specific application environment.	Law Enforcement With its Vandal Resistant design and built-in Microphone for audio recording, the IBD532-1SS is designed to protect against a suspect’s attempts to damage or disable footage, and equipped for recording any necessary evidence.	Public Transit Capable of wide coverage, with a wall-to-wall / floor-to-ceiling design, and a waterproof IP66/67 rating (making it easy to clean) the IBD532-1SS is also well equipped for use in public indoor / outdoor environments.

---

Analytics and Events

Alongside its main features, Pelco’s IBD532-1SS corner mount camera is also equipped with a range of useful video surveillance analytics, to help offer the most effective security experiance possible.
Analytics / Events supported by Sarix Corner Cameras include:

Objects in Area – Triggers event when the specified object type moves into a set region of interest

Object Loitering – Triggers when the specified object type stays in the region of interest for an extended period of time

Objects Crossing Beam – An event is triggered when a specified number of objects cross the user-configured directional beam (can be uni or bi-directional)

Object Appears or Enters Area – Triggers an event with each object that enters a set region of interest – can be used to count objects.

Object Not Present in Area – Triggers when there are no objects present in a region of interest – can be used to keep track of high value items

Objects Enter Area – An event is triggered once the specified number of objects have entered the region of interest.

Objects Leave Area – An event is triggered once the specified number of objects have left the region of interest.

Object Stops in Area – Triggers when an object moves into a region of interest and stops moving for a specified threshold amount of time.

Direction Violated – Triggers an event when an object is detected moving against the specified direction of travel.

Tamper Detection – Detects and triggers an event when the scene enexpectedly changes – if a cloth or lens cap has been used to block the camera, or if the camera is re-positioned without authorisation.

---

Security Features

Equipped to keep surveillance footage and security systems as secure as possible, Sarix Corner Cameras are also designed to include a range of Security Features, including;
Password protection, HTTPS encryption, Digest authentication, WS authentication, User access log, and, 802.1 1x port-based authentication

---
