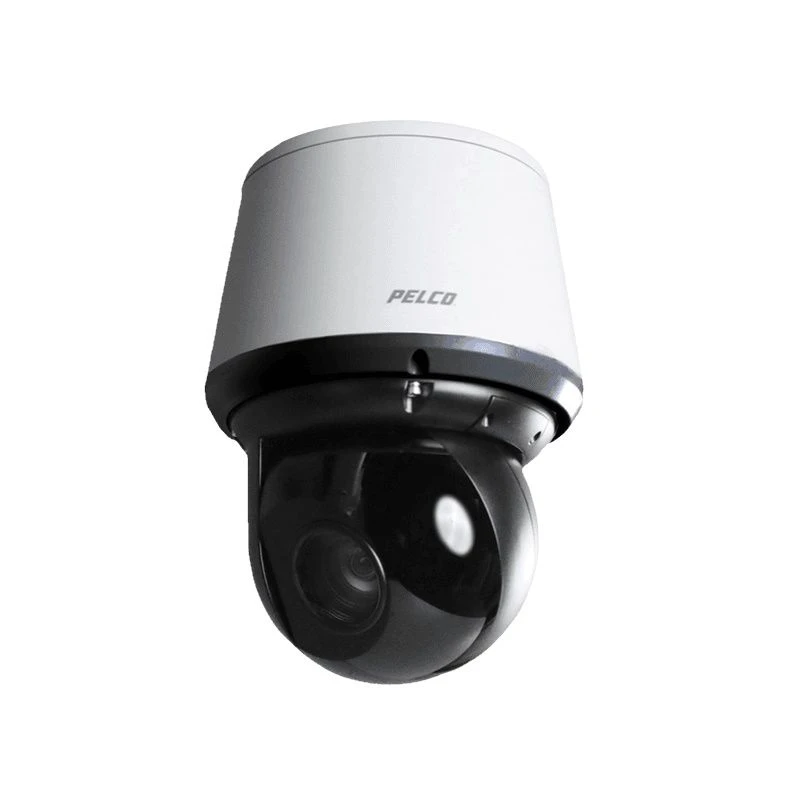

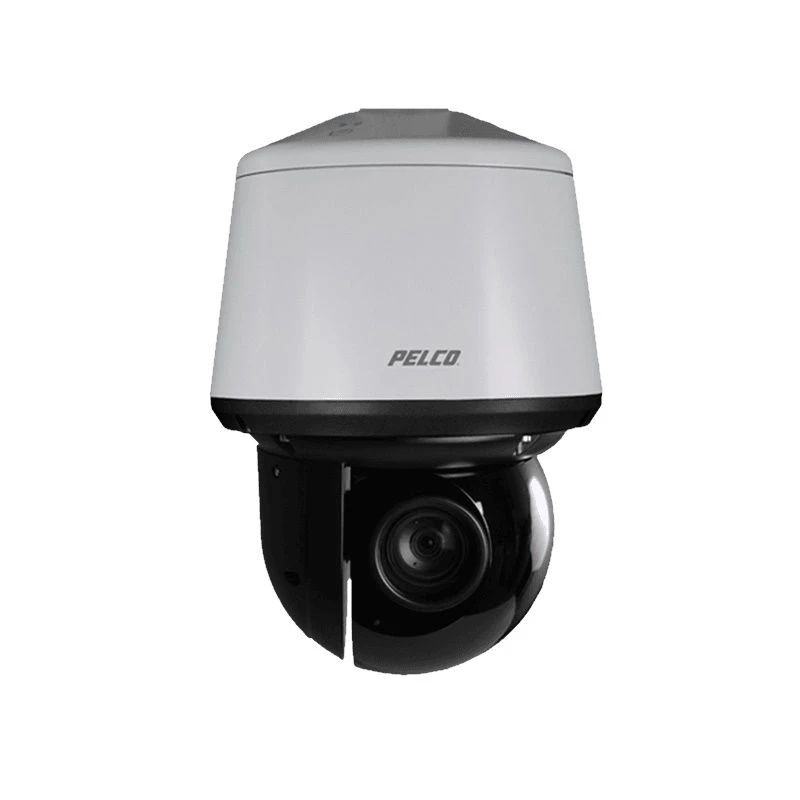

Pelco Spectra P2230L-ESR 2MP 30X IR PTZ Camera

The P2230L-ESR is a 2MP, 30x zoom PTZ camera, designed as a part of Pelco’s Spectra Professional range, offering users an impressive pan, tilt, and zoom camera solution, with support for image enhancement technologies and IR illumination.

---

---

Impressive Image Quality

Equipped for 1920×1080 maximum resolution, the P2230L-ESR offers a 16:9 aspect ratio, and 2MP image quality. Alongwith this, the Spectra Pro IR PTZ also offers image enhancement functionalities, and impressive low light capabilities. These include:

3D Noise Filtering (3DNR – 3D Noise Reduction) – reduces interruptions in image quality made by ‘noise’ (signals – transmitted audio, images, and video)

EIS (Electronic Image Stabalisation) – keeps image quality consistant and stable, even in challenging environments

120dB WDR (Wide Dynamic Range) – helps to improve low light visibility, keeping images detailed and clear in scenes with harsh bright or dark lighting conditions

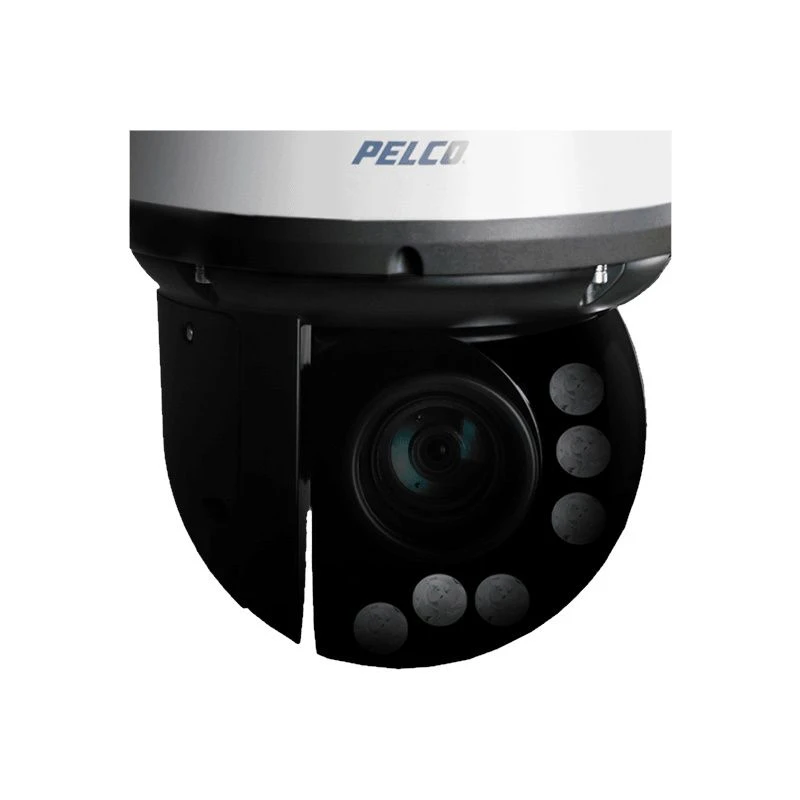

IR Illumination – allows for visibiltiy in absolute darkness. Using Infared Illumination (IR) with proportional brightness based on zoom, the P2230L-ESR can create visible images without pre-existing light up to 150m, and is almost undetectable with 850nm wavelength

---

Embedded Features

Software Features – Includes; 256 presets, 16 tours, 4 patterns, Field of view scan, Password protection, and more

Pan/Tilt/Zoom Features – Auto Flip (rotates camera 180° at bottom of tilt travel), and Proportional pan/tilt (to continually decrease speeds in proportion to depth of zoom)

Analytics

Camera Sabotage – Detects changes in the camera’s field of view, triggering an alarm if the lens becomes obstructed (by spray paint, cloth, lens cap, etc) or if the camera is repositioned without authorisation

Simple Motion Detection – Detects the movement of objects. Generates an alarm in a high traffic area when a person, or object moves

More Pelco analytics can be used when integrated with a supported VMS (Video Management System), such as Pelco VideoXpert. For more information about VideoXpert and camera licences please see the linked product page – Pelco Camera Licences for VideoXpert Professional

---

Dimensions:

Users should also note that this camera features a Hinged Top Cover, depicted below:
