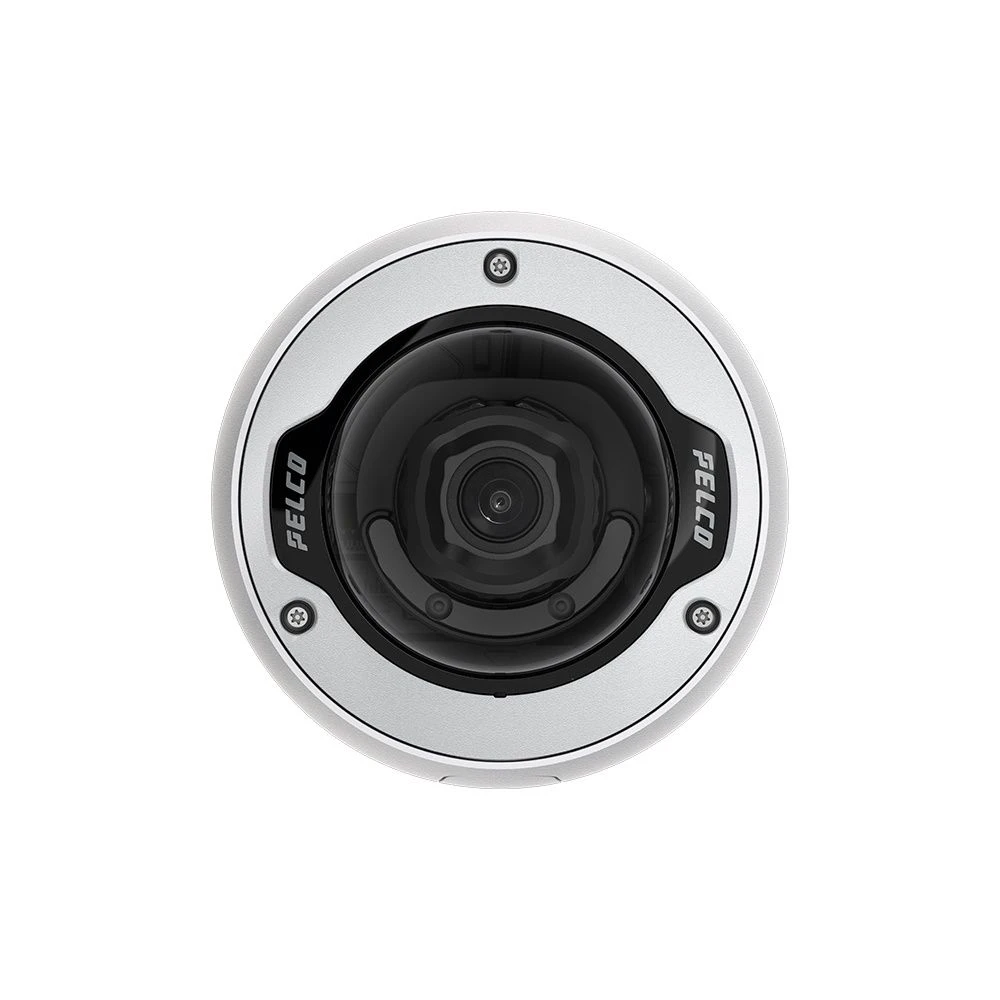

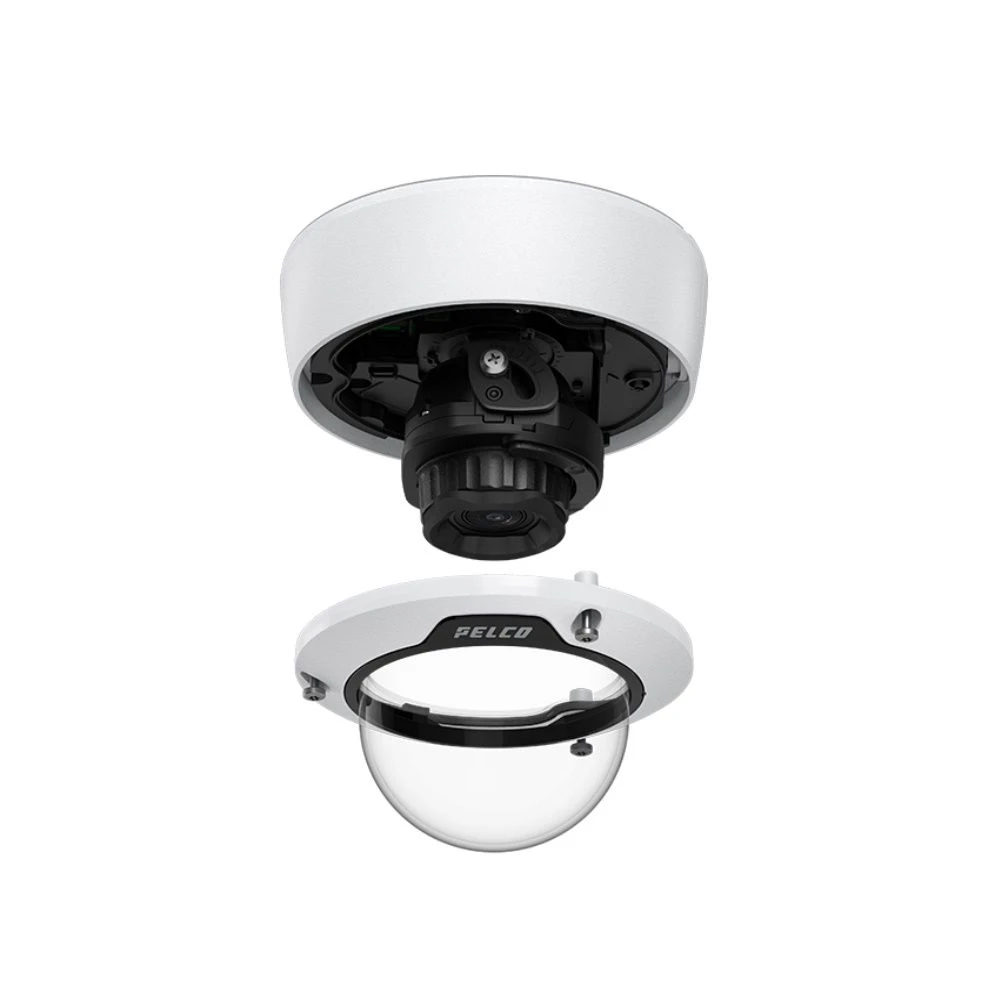

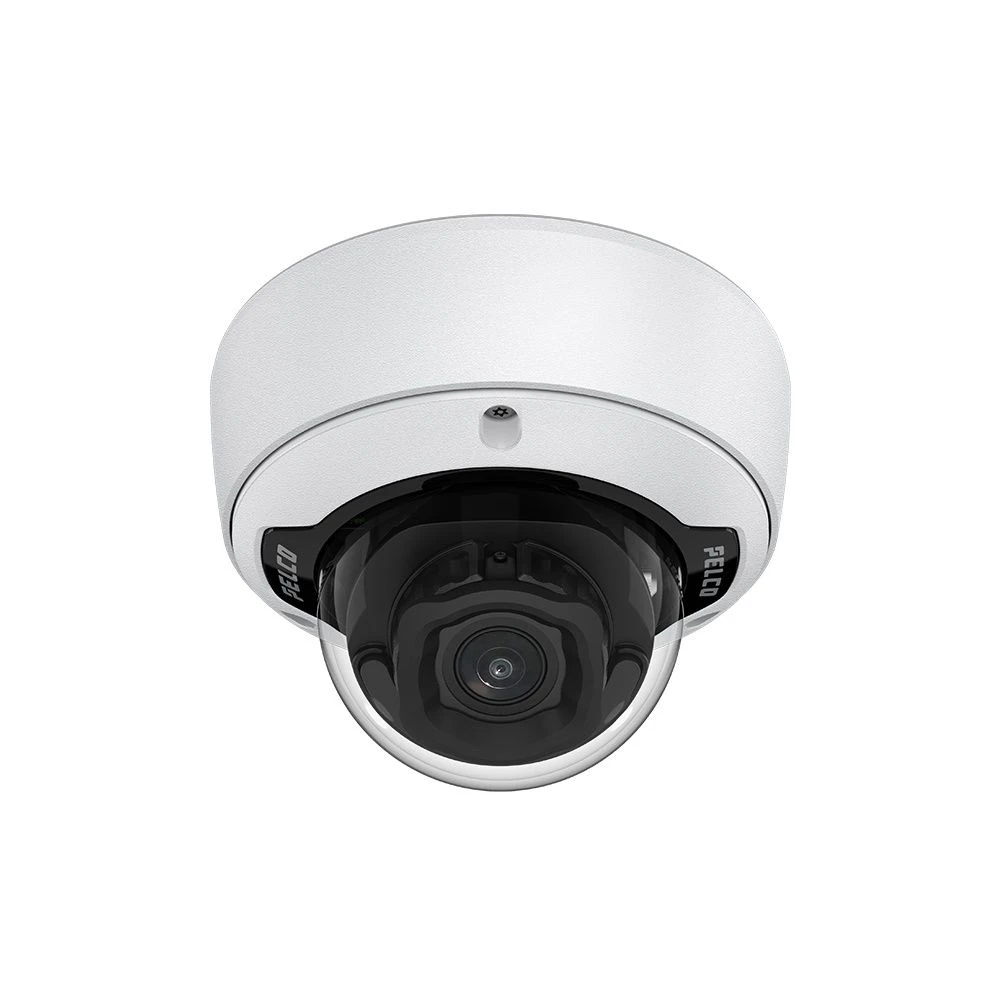

Pelco SRXP4-5V10-EMD 5MP Environmental Dome Camera

The SRXP4-5V10-EMD is an Environmental (Outdoor) 5MP Dome Camera, with a 3.4 ~ 10.5mm motorised remote-zoom lens.
As a part of Pelco’s Sarix Professional 4 series of cameras, the 5V10-EMD offers impressive image quality, a selection of Pelco Smart Analytics, ONVIF compliance for easy integration to other systems, and NDAA compliance.

---

---

Impressive Image Quality

Designed with 5MP resolution (with an imaging area of 5.57mm x 3.13mm (H x V) and a 4:3 aspect ratio, the SRXP4-5V10-IMD offers clear, high resolution image quality, supported by a 3D Noise Reduction filter, 130dB Wide Dynamic Range, and a minimum Illumination of 0.04 lux (colour mode)

As a 5MP model, it also includes 2 camera operating modes, allowing for users to choose between a focus on analytics / surveillance features with ‘Full Feature’ mode, and a focus on smooth image quality with ‘High Framerate’ mode (please note: in Full Framerate mode Analytics are disabled)

Weather and Vandal Proof Design

Equipped for use in Outdoor applications, the Sarix Pro 4 Environmental Dome cameras are designed with polycarbonate housing, an operating temperature of -40°c ~ +60°c, and reliable weather and vandal resistance (with an ingress protection rating of IP66/67 and Type 4X for weather / water proofing, alongside an IK10 impact rating)

Pelco Smart Analytics

Sarix Pro 4 Series Cameras also feature a selection of Pelco Smart Analytics, powered by Motorola solutions, each equipped to detect critical events with impressive accuracy, enabling fast and tactical responses to any possible security threat.
Supported Analytics:

Objects in Area – Triggers an event when a selected object type enters the region of interest

Object Loitering – Event is triggered when the selected object type stays in the region of interest for an extended amount of time.

Objects Crossing Beam – Triggers an event once a specified number of objects have crossed the configured directional beam (across the camera’s FOV – can be uni- or bi-directional)

Object Appears or Enters Area – An event is triggered by each object that enters the region of interest (can be used for counting)

Object Not Present in Area – An event is triggered when there are no objects present in the region of interest

Objects Enter Area – Triggers an event once a specified number of objects have entered the region of interest

Objects Leave Area – Triggers an event once a specified number of objects have left the region of interest

Object Stops in Area – Event is triggered when an object is detected moving into the region of interest, and stops moving for a specified threshold time

Direction Violated – An event is triggered when an object moves in the prohibited direction of travel

Tamper Detection – An event is triggered when the scene unexpectedly changes (detects unauthorised camera repositioning, or if the lens becomes obstructed)

With this selection of analytics, and ONVIF compliance (allowing for easy integration with VideoXpert – Pelco’s Video Management System) users are offered a wide range of Video Surveillance capabilities, to keep their site as secure as possible.
For more information on Pelco VideoXpert, and Camera Licences, please see the linked product page – VideoXpert Professional

---

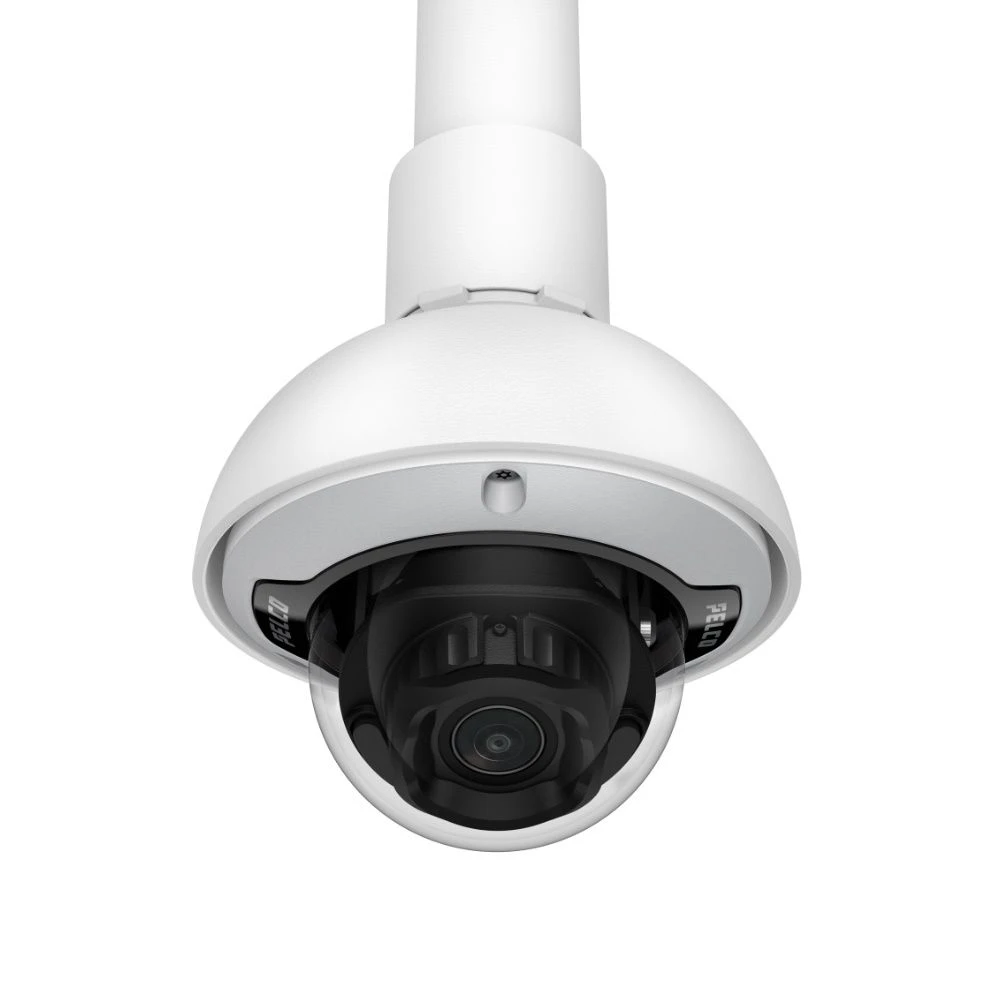

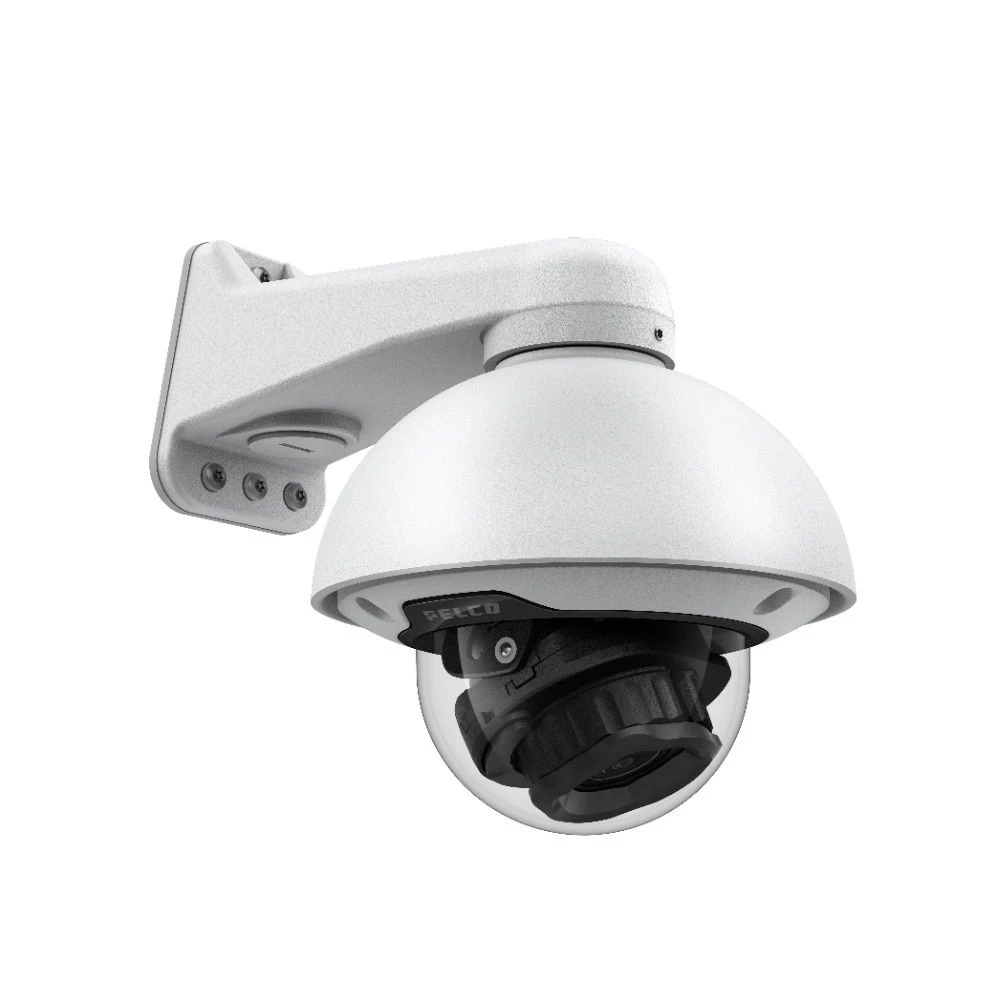

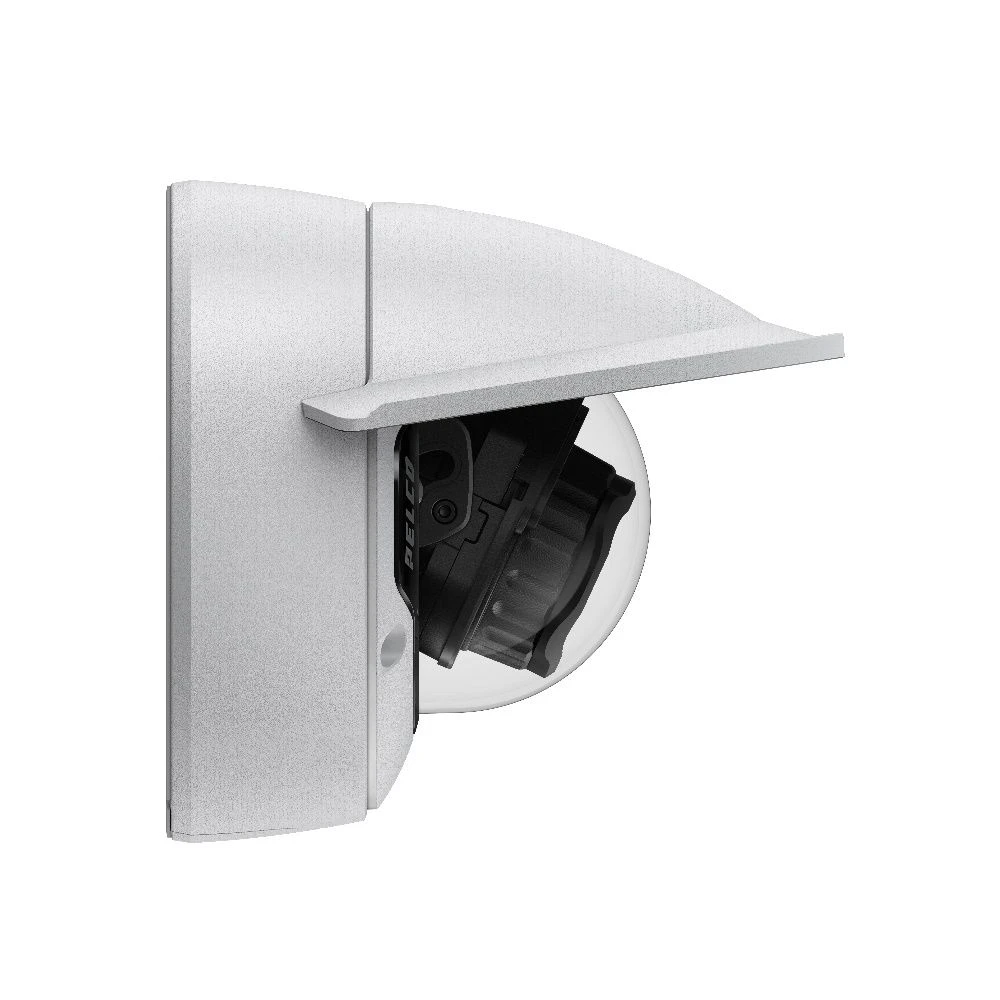

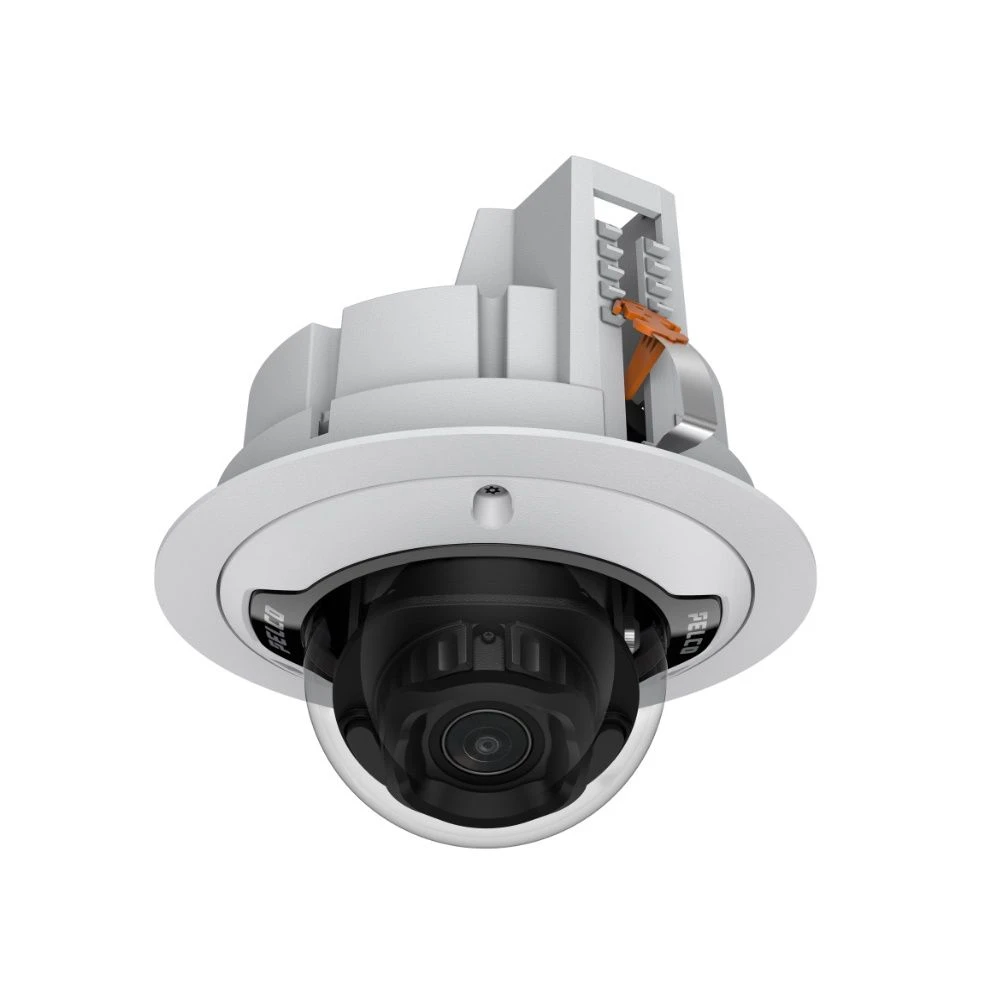

Mounting Options:

The Sarix Pro 4 range of Dome cameras are designed with support for a selection of mounting options, each depicted below – equipped with the base camera model. For each option users will need the required mounts (brackets available at Use-IP can be found on this page under ‘Related Products’)
