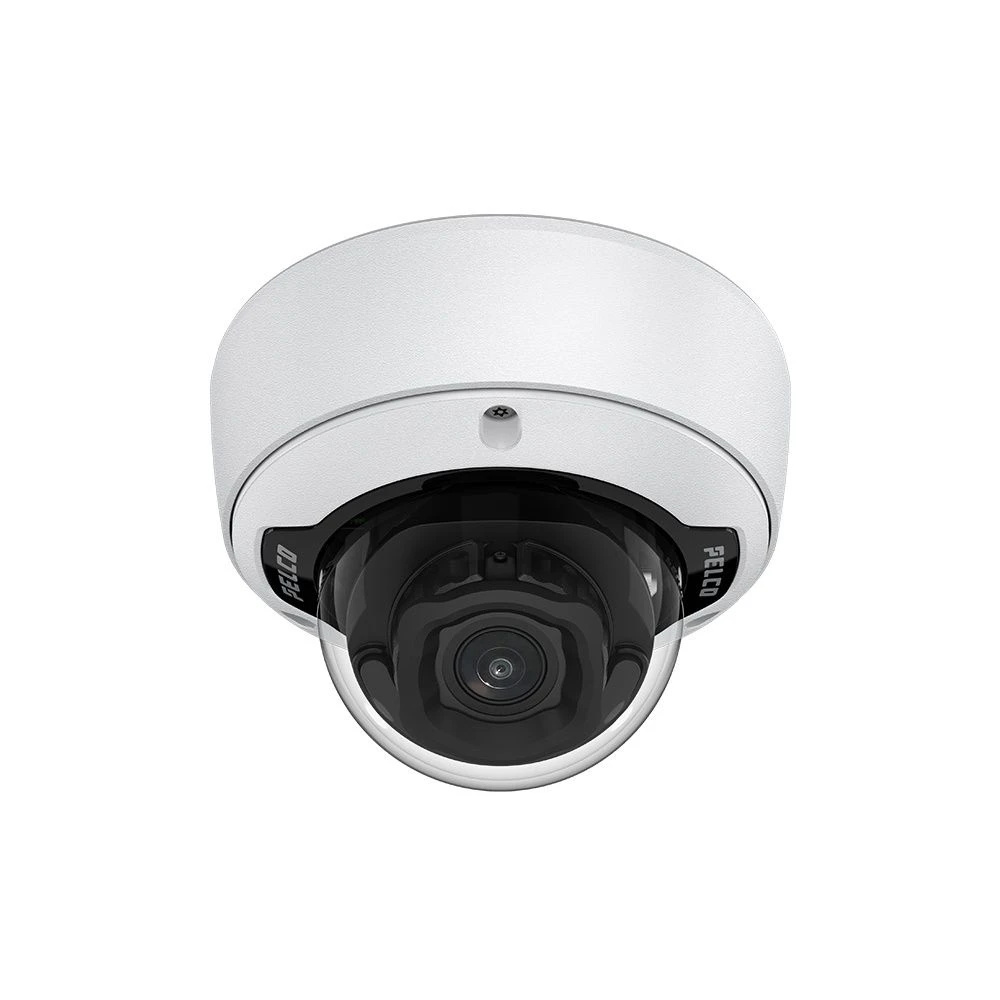

Pelco SRXP4-5V10-IMD-IR 5MP Indoor IR Dome Camera

The SRXP4-5V10-IMD-IR is an Indoor 5MP Dome Camera, with a 3.4 ~ 10.5mm motorised remote-zoom lens, and 30m IR Illumination.
As a part of Pelco’s Sarix Professional 4 series of cameras, the 5V10-IMD-IR offers impressive image quality, a selection of Pelco Smart Analytics, ONVIF compliance for easy integration to other systems, and NDAA compliance.

As an Indoor Dome camera model, the SRXP4-5V10-IMD-IR also supports an optional Microphone accessory (ACMICR-1001 – purchased seperately) to allow for additional audio recording capabilities.

---

---

Impressive Image Quality

Designed with 130dB Wide Dynamic Range (allowing for improved detail and impressive clarity in scenes with areas of both harsh, bright lighting, and dim lighting conditions) and up to 30m IR Illumination (with 0 lux in monochrome mode – 0.04 lux (colour) and 0.02 lux (mono) without IR) the SRXP4-5V10-IMD-IR keeps image quality clear at all times, regardless of the amount of light in a scene.

Alongside its low-light capabilities, the SRXP4-5V10-IMD-IR also offers impressive image resolution, at 5MP up to 30fps, with an imaging area of 5.18mm x 3.89mm (H x V) and aspect ratio of 4:3.
As a 5MP model, it also includes 2 camera operating modes, allowing for users to choose between a focus on analytics / surveillance features with ‘Full Feature’ mode, and a focus on smooth image quality with ‘High Framerate’ mode (please note: in Full Framerate mode Analytics are disabled)

Pelco Smart Analytics

Sarix Pro 4 Series Cameras also feature a selection of Pelco Smart Analytics, powered by Motorola solutions, each equipped to detect critical events with impressive accuracy, enabling fast and tactical responses to any possible security threat.
Supported Analytics:

Objects in Area – Triggers an event when a selected object type enters the region of interest

Object Loitering – Event is triggered when the selected object type stays in the region of interest for an extended amount of time.

Objects Crossing Beam – Triggers an event once a specified number of objects have crossed the configured directional beam (across the camera’s FOV – can be uni- or bi-directional)

Object Appears or Enters Area – An event is triggered by each object that enters the region of interest (can be used for counting)

Object Not Present in Area – An event is triggered when there are no objects present in the region of interest

Objects Enter Area – Triggers an event once a specified number of objects have entered the region of interest

Objects Leave Area – Triggers an event once a specified number of objects have left the region of interest

Object Stops in Area – Event is triggered when an object is detected moving into the region of interest, and stops moving for a specified threshold time

Direction Violated – An event is triggered when an object moves in the prohibited direction of travel

Tamper Detection – An event is triggered when the scene unexpectedly changes (detects unauthorised camera repositioning, or if the lens becomes obstructed)

With this selection of analytics, and ONVIF compliance (allowing for easy integration with VideoXpert – Pelco’s Video Management System) users are offered a wide range of Video Surveillance capabilities, to keep their site as secure as possible.
For more information on Pelco VideoXpert, and Camera Licences, please see the linked product page – VideoXpert Professional

---

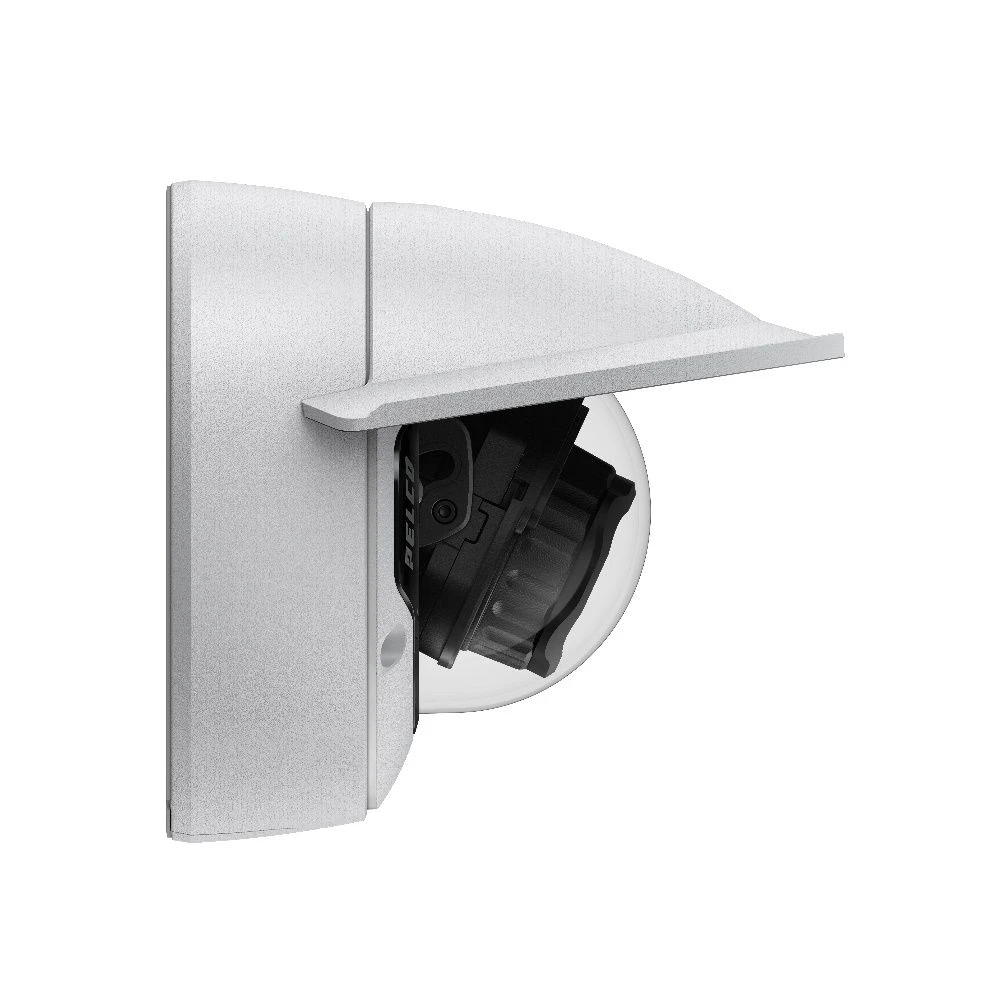

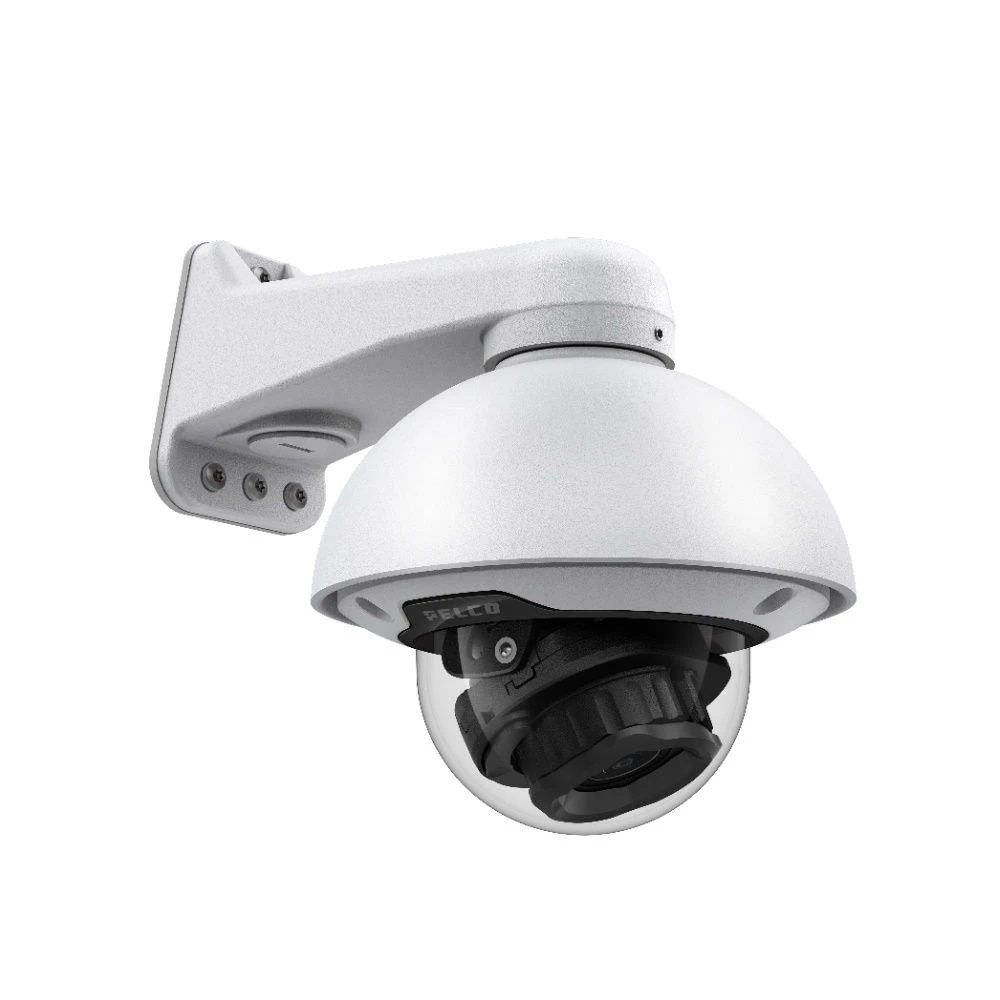

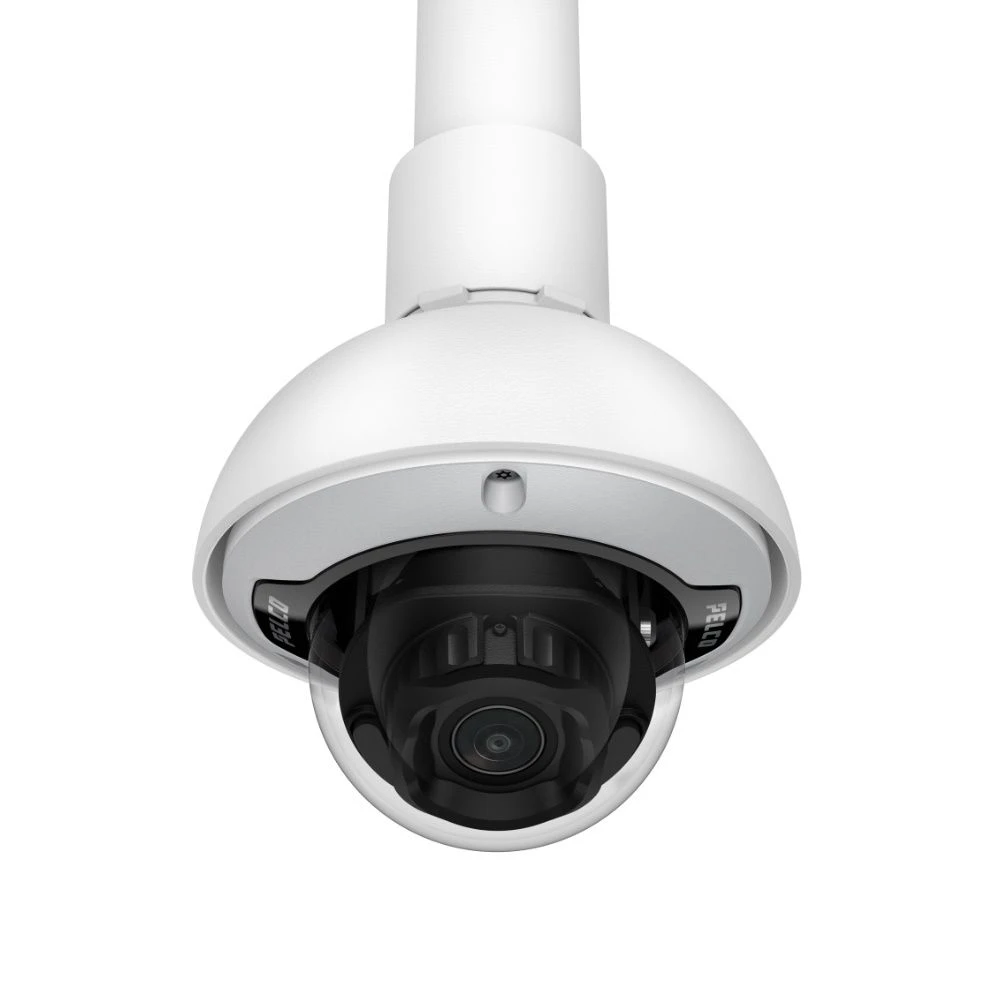

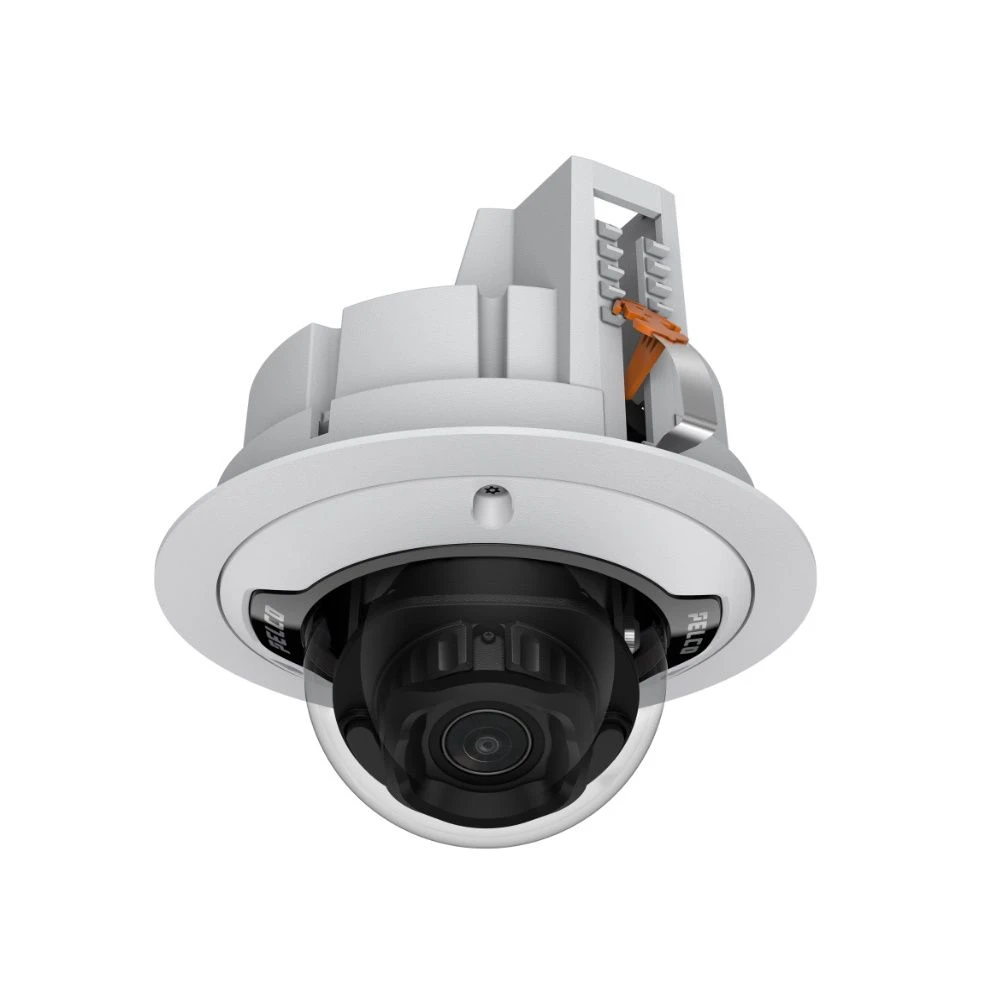

Mounting Options:

The Sarix Pro 4 range of Dome cameras are designed with support for a selection of mounting options, each depicted below – equipped with the base camera model. For each option users will need the required mounts (brackets available at Use-IP can be found on this page under ‘Related Products’)
