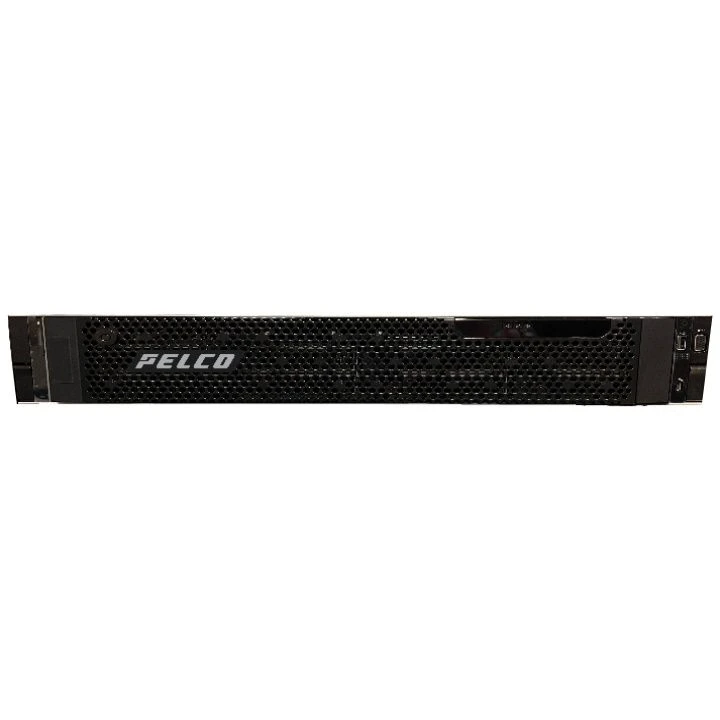

Pelco VideoXpert Pro Power 3 Server 0TB

VideoXpert Professional not only comes as a software package, but also as a range of hardware options. This includes the Power 3 Server, which comes in two model types, fit for different Windows OS (10 IoT – VXP-P3-0-XT, and, Server 2019 – VXP-P3-0-XN)
The server model numbers listed here are both 0TB options with unconfigured RAID and effective capacity, designed for users to add their own system storage – Recommended Hard Drives can be found on this page under ‘Related products’

Hardware Specifications:

Form Factor	Rack 2RU
Processor	Intel Xeon Silver 4310
Memory	16GB DDR4
Operating System	Microsoft Window 10 IoT Enterprise 64-bit, or, Server 2019
OS Drive	2x M.2 SSDs 240GB (RAID 1)
Storage	0TB
Max Storage	96TB (7200 RPM SATA)
RAID Level	6/5/JBOD
Dell iDRAC Controller	iDRAC9 Enterprise
USB Ports	USB 2.0 – x1 front, x1 rear – USB 3.0 – x1 rear
Power Input	100 to 240 VAC 50/60 Hz
Power Supply	Dual Hot swappable 800W
Power Consumption	3000 BTU/hr max
Dimensions	(D x W x H) 67.5 x 43.4 x 8.68 cm

Included Accessories:

– x1 Mini DisplayPort to HDMI

– USB Drive containing resource and recovery information

– Rack mount kit

– US, UK, and EU power cords

---

Additional Features

– Supports environments that use Anti-virus and Firewall software

– Allows for users to monitor multiple VideoXpert Pro sites with a single client

– Imports users and roles from LDAP servers to reduce administrative overhead, and enables single sign-on (SSO)

– Allows users to assess VMS and camera health using SNMP (avaliable as a free separate download)

– Includes support for the Event Monitor service feature – this is capable of polling for alarms from devices and performing specified actions when an alarm state changes (avaliable as a free seperate download)

– Includes the ability to connect video streams to third-party clients, with customizable RTSP endpoints (allowing a client application connection to a VideoXpert system stream via the VxConnect service (avaliable as a purchasable download)

– Supports DNS hostnames for Pelco and other ONVIF-compliant cameras

---

VideoXpert Professional

Pelco’s VideoXpert Professional is a Video Management system designed with Small to Mid-size installments in mind, capable of supporting up to 100 cameras.
With an intuitve interface, robust features, and a scalable design (with the use of Camera licences), VideoXpert Pro offers an ideal VMS solution for a wide range of users, from home to small/medium business applications.

Designed for use with Windows platforms, with an intuitive ‘Plug-and-Play’ design, VideoXpert is easy to Install, Set-up and Configure. It also offers an efficient all-in-one capabilities, allowing for the use of all non-client functions on a single machine, and for the monitoring of multiple VideoXpert Pro sites with a single client.

For more information please see the linked product page – VideoXpert Pro
